Detailed Specifications

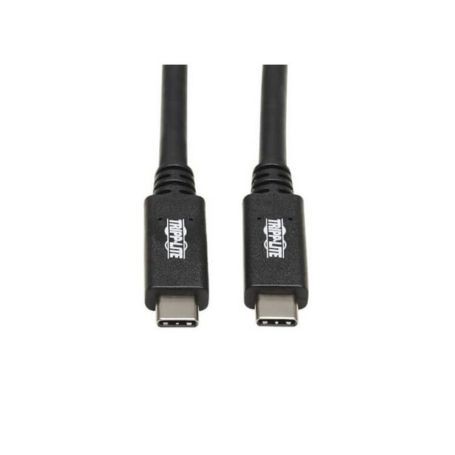

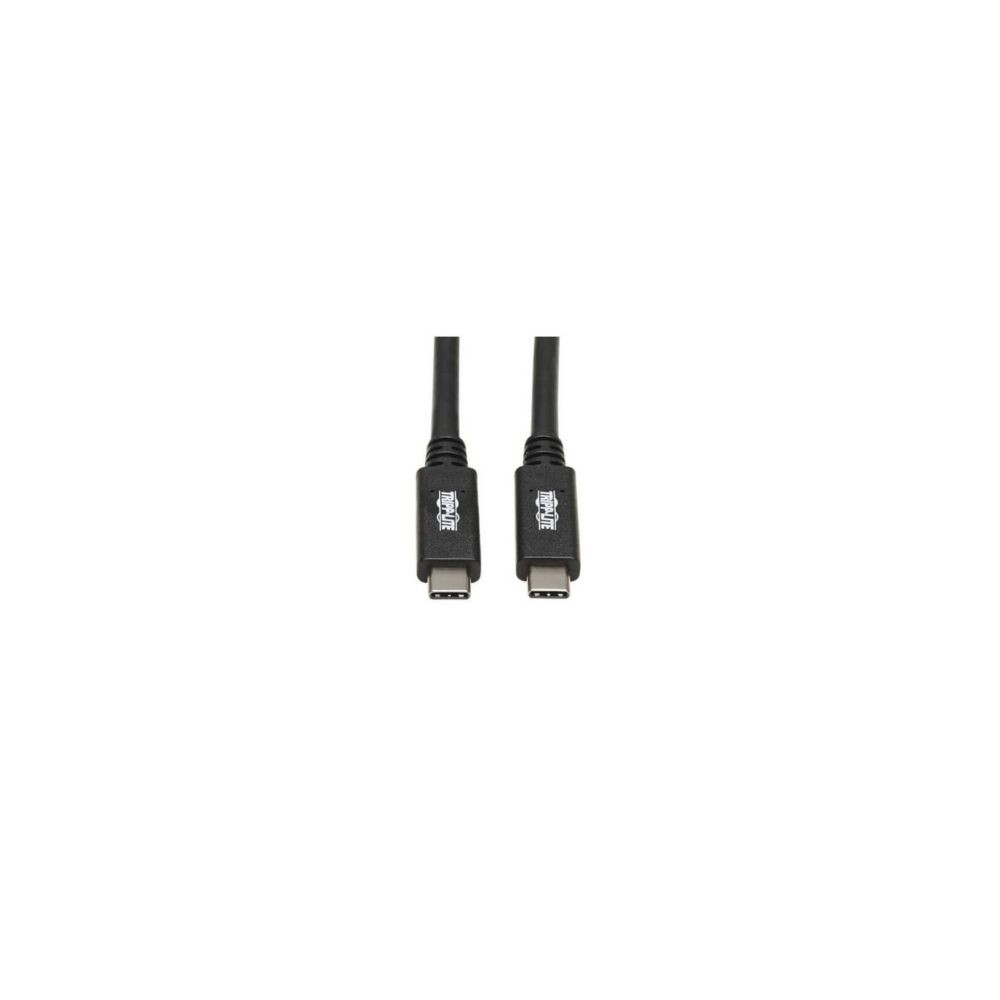

Eaton U420-20N-G2-5A Tripp Lite USB-C to USB-C 100W Cable
Overview:
The Eaton U420-20N-G2-5A / Tripp Lite is a high-speed USB-C to USB-C cable designed for charging, syncing and data transfer between compatible USB-C devices. It connects laptops, MacBooks, Chromebooks, Ultrabooks, smartphones, external storage devices, docking stations and USB-C chargers.
The cable uses USB-C male-to-male connectors and supports USB 3.2 Gen 2 data transfer speeds up to 10 Gbps. Eaton specifies a 5A / 100W power rating, allowing the cable to support charging and powering compatible USB-C devices.
The passive cable measures 20 inches / 50.8 cm and features reversible USB-C connectors, a black PVC jacket and nickel-plated connectors. It is also compatible with Thunderbolt 3 devices. Eaton's official catalog confirms the U420-20N-G2-5A as part of the Tripp Lite USB 3.2 Gen 2 cable range.
Key Features :
- USB-C male-to-male configuration connects two compatible USB-C devices, including laptops, smartphones, chargers and docking stations.
- USB 3.2 Gen 2 support provides data transfer speeds up to 10 Gbps for compatible devices.
- 5A / 100W power rating supports charging, syncing and powering compatible USB-C equipment.
- Thunderbolt 3 compatibility allows connection with compatible Thunderbolt 3-equipped computers and peripherals.
- 20-in / 50.8 cm passive cable features reversible USB-C connectors, black PVC construction and plug-and-play operation.
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite by Eaton |
| Model | U420-20N-G2-5A |
| Product Type | USB-C to USB-C Cable |
| Cable Type | USB 3.2 Gen 2 Passive |
| Connector A | USB-C Male |
| Connector B | USB-C Male |
| Data Transfer Rate | Up to 10 Gbps |
| USB Specification | USB 3.2 Gen 2 |
| Power Rating | 5A / 100W |
| Thunderbolt Compatibility | Thunderbolt 3 |
| Cable Length | 20 in / 50.8 cm |
| Cable Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter | 5.2 mm |
| Connector Style | Straight |
| Connector Plating | Nickel / Gold Contact |
| Cable Type | Passive |
| Material | PVC |
| Plug-and-Play | Yes |
| Operating Temperature | 14° to 140°F / -10° to 60°C |
| Relative Humidity | 10% to 85%, Non-Condensing |
| Product Length/Depth | 0.5 in |
| Product Height | 9 in |
| Product Width | 7 in |
| Product Weight | 0.06 lb |
| Compliance | CE, FCC, REACH, RoHS |
| Certifications | CSA, cUL, UL Listed |
| Warranty | 3-Year Limited |
| UPC | 037332243409 |
