Detailed Specifications

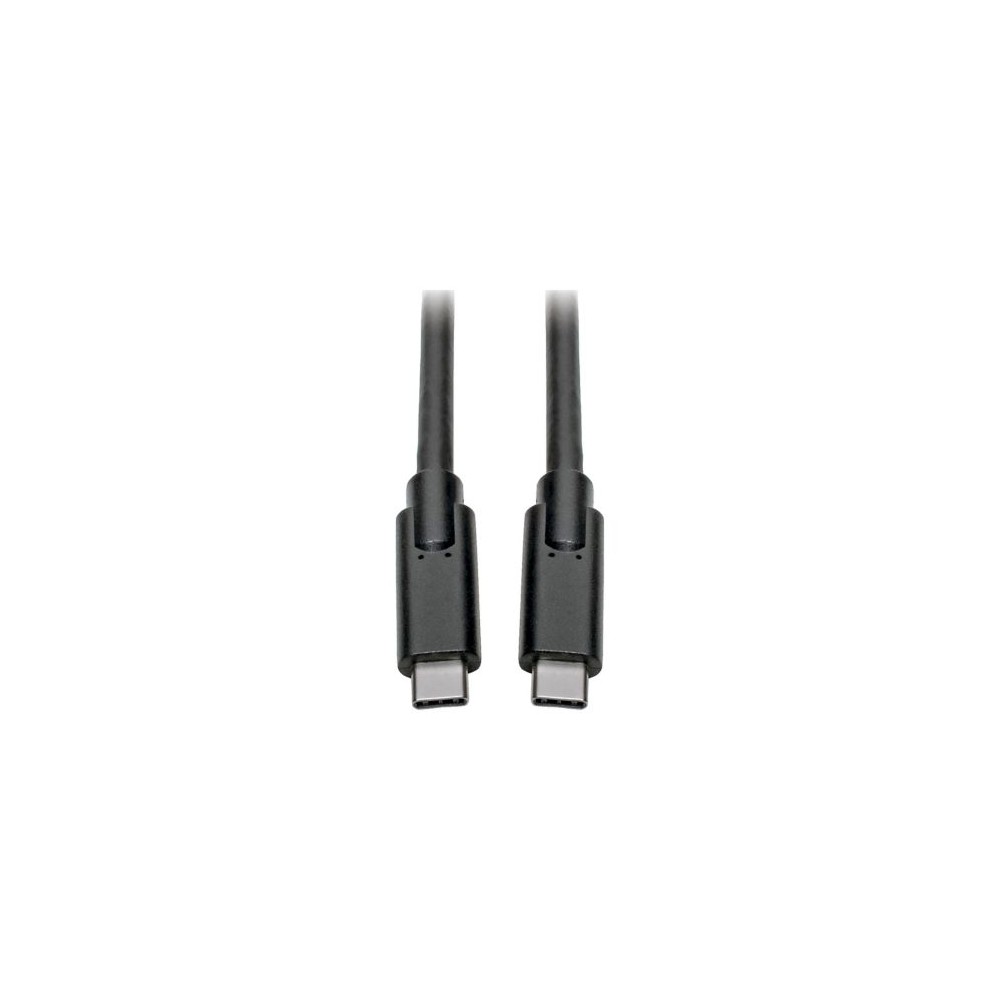

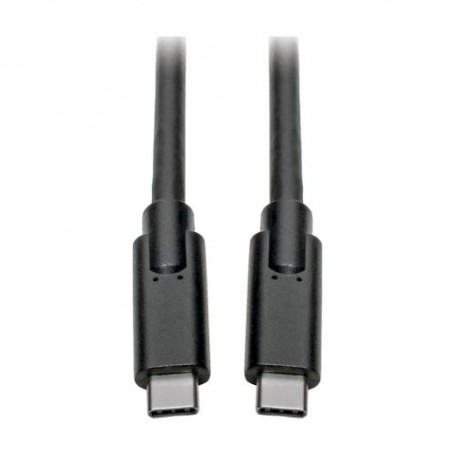

Eaton Tripp Lite U420-010 USB-C to USB-C Cable
The Eaton Tripp Lite U420-010 is a 10-foot (3.05 m) USB-C to USB-C male-to-male cable for connecting compatible USB-C devices. It supports USB 3.2 Gen 1 data transfer speeds up to 5 Gbps and provides Power Delivery power output up to 3A (60W) for compatible charging applications.
Technical Capabilities
The U420-010 uses USB-C connectors on both ends and supports USB 3.1 Gen 1 / USB 3.2 Gen 1 operation at up to 5 Gbps. Its passive construction supports data transfer and charging between compatible USB-C equipment. The cable is also compatible with devices using Thunderbolt 3 ports.
Compatibility and Applications
The cable can be used to connect a USB-C laptop, MacBook, Chromebook or similar computer to a USB-C docking station or hub. It can also connect USB-C mobile devices to compatible USB-C wall chargers, or connect USB-C external storage devices to computers or tablets.
Key Features
- USB-C male-to-male connection
- USB 3.2 Gen 1 data transfer up to 5 Gbps
- Power Delivery power output up to 3A (60W) for compatible devices
- 10 ft. (3.05 m) cable length for extended connection reach
- Compatible with USB-C and Thunderbolt 3 devices
Applications
- Connecting USB-C laptops to docking stations or hubs
- Charging and syncing compatible USB-C mobile devices
- Connecting USB-C external hard drives or flash drives to computers
- Connecting compatible USB-C peripherals over a longer 10-foot cable
DC Supplies Product Note
The U420-010 is a 3A/60W USB-C Power Delivery cable; the connected charger and devices must also support the required charging level to deliver that power.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | U420-010 |
| Product Type | USB-C Cable |
| Cable Type | Passive |
| Connector A | USB-C Male |
| Connector B | USB-C Male |
| USB Standard | USB 3.2 Gen 1 / USB 3.1 Gen 1 |
| Maximum Data Rate | 5 Gbps |
| Power Delivery | Up to 3A / 60W power output |
| Cable Length | 10 ft. (3.05 m) |
| Cable Color | Black |
| Cable Outer Diameter | 5.5 mm |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Connector Style | Straight |
| Thunderbolt Compatibility | Thunderbolt 3 compatible |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Relative Humidity | 10% to 85%, non-condensing |
| Compliances | FCC, CE, RoHS, REACH |
| Warranty | 3-year limited warranty |
Frequently Asked Questions
What is the maximum data transfer speed of the U420-010?
The U420-010 supports USB 3.2 Gen 1 data transfer speeds up to 5 Gbps.
What is the maximum charging power supported?
The cable provides up to 3A (60W) Power Delivery power output when used with compatible equipment.
What connectors does the U420-010 use?
Both ends use straight USB-C male connectors.
Is the U420-010 compatible with Thunderbolt 3?
Yes. Eaton specifies compatibility with USB-C and Thunderbolt 3 devices.
How long is the cable?
The U420-010 is 10 feet (3.05 meters) long.
