Overview

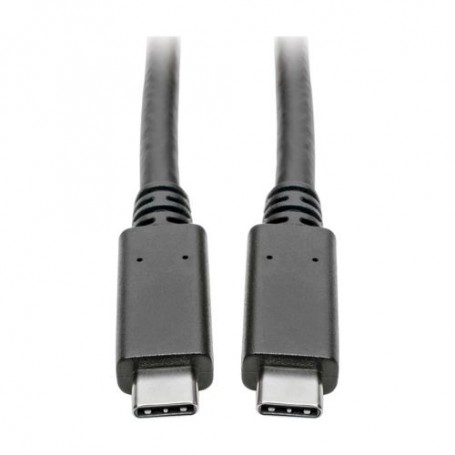

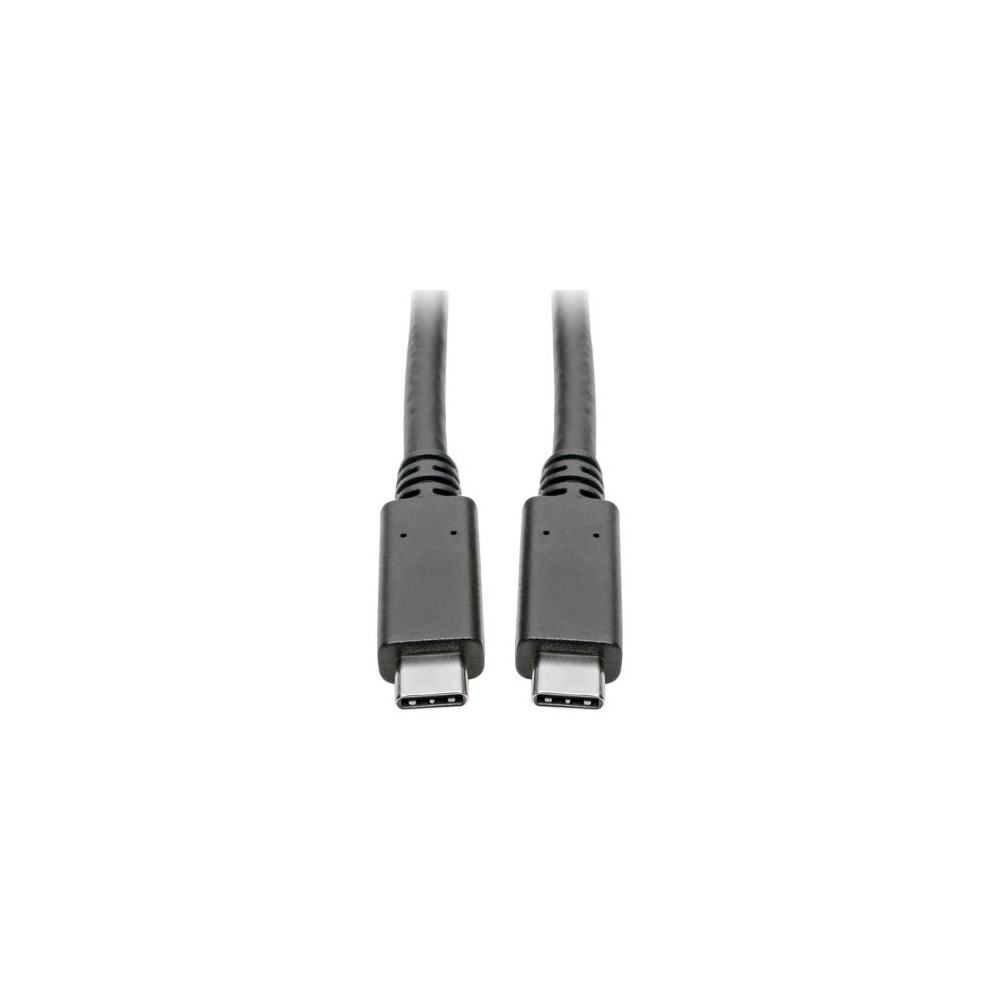

The Eaton Tripp Lite U420-006 is a 6-foot USB-C male-to-male cable designed for USB data transfer, device charging, and connection between compatible USB-C equipment. It supports USB 3.2 Gen 1 transfer speeds up to 5 Gbps and provides up to 3A (60W) power output for charging compatible devices.
Connectivity
The cable has USB-C male connectors at both ends, allowing compatible USB-C devices to be connected directly. The reversible USB-C connectors can be inserted in either orientation. The cable can be used to connect USB-C mobile devices to USB-C wall chargers, external storage devices to computers, or compatible laptops to USB-C docking stations and hubs.
Data Transfer
USB 3.2 Gen 1 connectivity supports data transfer rates up to 5 Gbps with compatible host devices, peripherals, and USB equipment. Actual transfer performance depends on the capabilities of the connected devices and USB interfaces.
Charging and Power
The U420-006 supports up to 3A (60W) power output for charging compatible USB-C devices. The 60W specification is the cable's specified charging capability and does not mean that every connected device will draw 60W. Charging performance depends on the connected charger, host, device, and applicable USB-C power requirements.
Thunderbolt 3 Compatibility
The cable is specified as compatible with USB-C and Thunderbolt 3 devices. Compatibility with a particular Thunderbolt or USB-C application remains dependent on the capabilities and requirements of the connected equipment.
Key Features
- USB-C male-to-male cable with 6-foot (1.83 m) length
- USB 3.2 Gen 1 data transfer rates up to 5 Gbps
- Supports up to 3A (60W) power output for compatible charging applications
- Reversible USB-C plugs for either-direction connector insertion
- Compatible with USB-C and Thunderbolt 3 devices
Applications
The U420-006 can be used for charging and syncing compatible USB-C mobile devices, connecting external USB-C storage to computers, and connecting compatible USB-C laptops to docking stations or hubs. Its 6-foot length provides additional reach between connected devices compared with shorter USB-C cables.
DC Supplies Product Note
The U420-006 is the standard 3A/60W version of the 6-foot U420 USB-C cable family. It should not be confused with the U420-006-5A variant, which has a different 5A/100W power rating. For applications requiring more than 60W of cable-supported power, the exact cable specification and connected equipment requirements should be checked before selection.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | U420-006 |
| Product Type | USB-C Cable |
| Connector Configuration | USB-C Male to USB-C Male |
| USB Specification | USB 3.2 Gen 1 |
| Maximum Data Transfer Rate | Up to 5 Gbps |
| Power Output | Up to 3A / 60W |
| Cable Length | 6 ft. (1.83 m) |
| Cable Type | Passive |
| Connector Style | Straight |
| Connector Group | USB-C |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Cable Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter | 4.5 mm |
| Material | PVC |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Relative Humidity | 10% to 85%, non-condensing |
| Technology | USB 3.x, Thunderbolt |
| Compliances | CE Marked, RoHS, REACH, FCC Compliant |
| Warranty | 3-year limited warranty |
| UPC | 037332218407 |
FAQs
What connectors does the U420-006 have?
The cable has a USB-C male connector on both ends.
What USB speed does the U420-006 support?
The cable supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps with compatible equipment.
How much power can the U420-006 support?
Eaton specifies up to 3A (60W) power output for charging compatible devices.
Is this cable compatible with Thunderbolt 3 devices?
Yes. Eaton specifies compatibility with USB-C and Thunderbolt 3 devices, subject to the capabilities of the connected equipment.
Is the U420-006 the same as the U420-006-5A?
No. The U420-006 is the 3A/60W version, while the U420-006-5A is a separate model with a 5A/100W power rating.
What is the cable length?
The U420-006 is 6 feet (1.83 meters) long.
