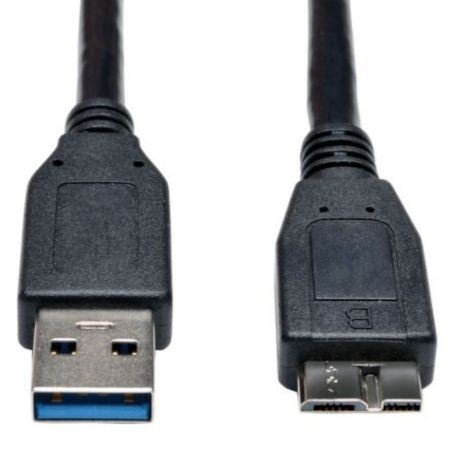

Eaton U326-001-BK Tripp Lite USB 3 0 A to Micro B Cable 1 ft

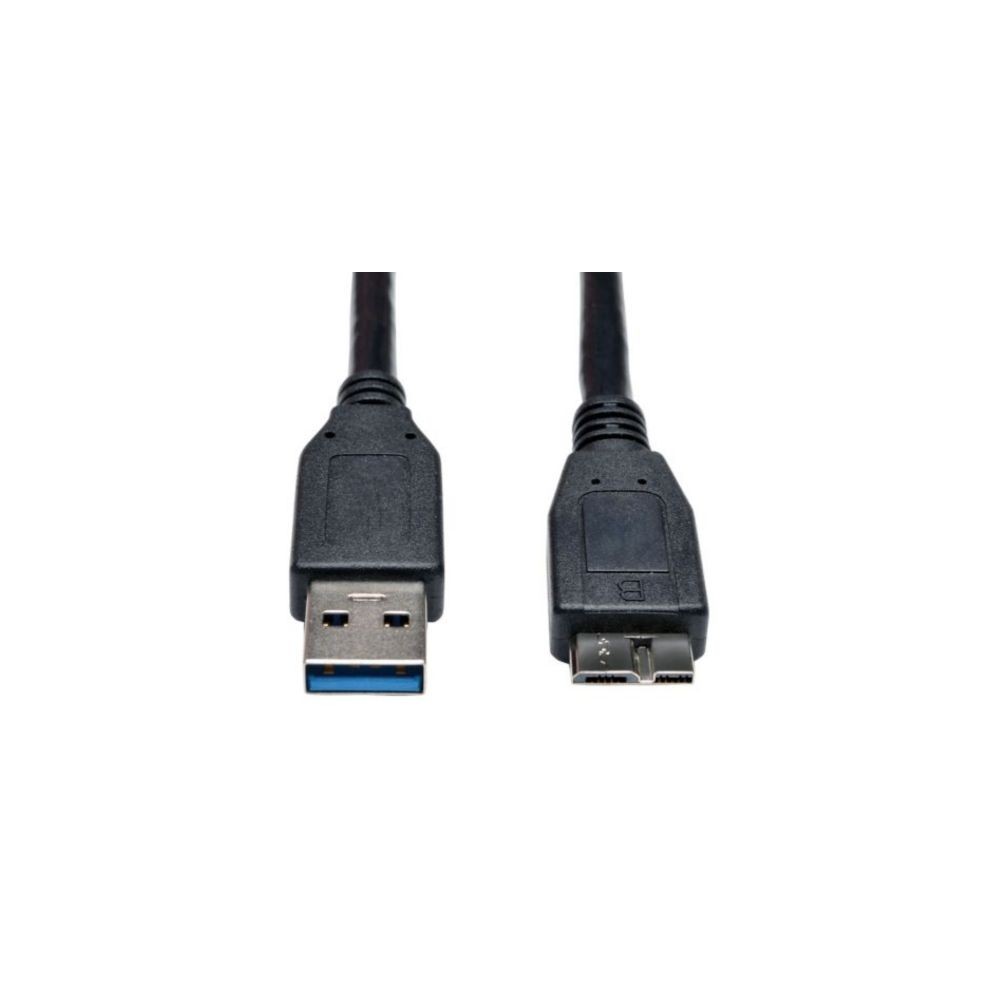

The Eaton U326-001-BK is a 1-foot USB 3.0 SuperSpeed cable with a USB-A male connector on one end and a USB 3.0 Micro-B male connector on the other. The passive black cable is designed for connecting compatible computers, laptops, and USB devices that use a Micro-B USB 3.0 interface.
Connectivity and Performance
The cable supports USB 3.0 operation with data transfer rates up to 5 Gbps. Its USB-A to Micro-B configuration provides connectivity between a compatible USB host and a device equipped with a USB 3.0 Micro-B port. The cable also supports data transfer and charging.
Construction
The U326-001-BK uses a black PVC construction with a 5.5 mm cable outer diameter. The connectors have nickel plating, while the contacts use gold plating. The cable is double-shielded and has a VW-1 cable jacket rating.
Key Features
- USB 3.0 SuperSpeed data transfer up to 5 Gbps
- USB-A male to USB 3.0 Micro-B male connectors
- 1-foot (0.31 m) cable length
- Passive black PVC cable with 5.5 mm outer diameter
- Gold-plated contacts and nickel-plated connectors
Typical Applications
The Eaton U326-001-BK is suitable for connecting compatible USB 3.0 Micro-B devices to computers, laptops, and other USB hosts. Its 1-foot length can be useful where a short cable connection is preferred, including office and commercial environments.
DC Supplies Product Note
The U326-001-BK uses the USB 3.0 Micro-B connector rather than the smaller Micro-USB connector commonly associated with USB 2.0 devices. Confirm that the connected device has a compatible USB 3.0 Micro-B port before ordering.
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series | Tripp Lite |
| Part Number / MPN | U326-001-BK |
| Product Type | USB 3.0 Cable |
| Connector A | USB 3.0 A Male |
| Connector B | USB 3.0 Micro-B Male |
| USB Specification | USB 3.0 |
| Maximum Data Transfer Rate | Up to 5 Gbps |
| Cable Length | 1 ft (0.31 m) |
| Cable Type | Passive |
| Cable Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Material | PVC |
| Cable Outer Diameter | 5.5 mm |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Connector Style | Straight |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Storage Temperature | -4°F to 185°F (-20°C to 85°C) |
| Relative Humidity | 10% to 85%, non-condensing |
| Product Weight | 0.06 lb |
| UPC | 037332186164 |
| Warranty | Lifetime limited warranty |
| Compliance | REACH, FCC, RoHS, CE |
Frequently Asked Questions
What connectors does the U326-001-BK use?
The cable has a USB 3.0 A male connector on one end and a USB 3.0 Micro-B male connector on the other.
What is the maximum data transfer speed?
The U326-001-BK supports USB 3.0 data transfer rates up to 5 Gbps.
How long is the cable?
The cable is 1 foot (0.31 m) long.
Is the cable passive or active?
The U326-001-BK is a passive USB cable.
What color is the cable?
The cable jacket is black.
