Detailed Specifications

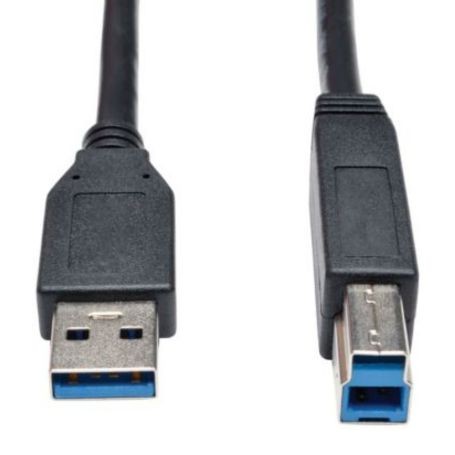

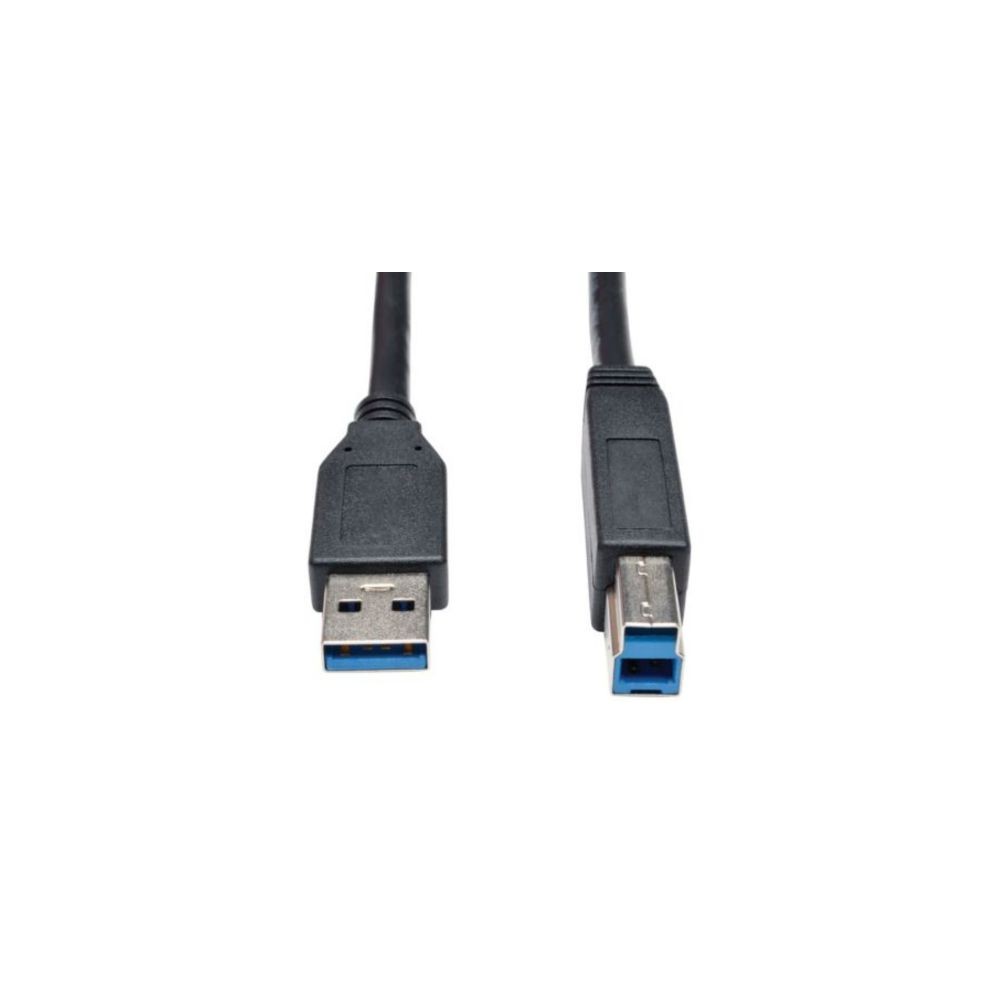

Eaton U322-010-BK Tripp Lite USB 3 2 Gen 1 SuperSpeed Cable 10 ft A to B
The Eaton U322-010-BK is a 10 ft USB 3.2 Gen 1 SuperSpeed device cable with USB-A male and USB-B male connectors. It supports data transfer rates up to 5 Gbps and connects compatible USB 3.2 Gen 1 computers with peripherals such as hard drives and printers.
USB-A to USB-B SuperSpeed Connectivity
This passive 10 ft cable provides a direct USB-A host-to-USB-B peripheral connection. It is backward compatible with USB 2.0 equipment, while USB 3.2 Gen 1 equipment can use the cable's SuperSpeed data capability.
Key Features
- USB 3.2 Gen 1 SuperSpeed data transfer up to 5 Gbps
- USB-A male to USB-B male connector configuration
- 10 ft (3.05 m) cable length
- Passive design with straight connectors
- Black PVC jacket with VW-1 rating
DC Supplies Product Note
The 10 ft length provides additional routing distance compared with shorter A-to-B device cables, making the U322-010-BK useful when a USB-B peripheral is positioned farther from its host computer. For 5 Gbps operation, the connected equipment must support USB 3.2 Gen 1.
Typical Applications
- USB-B printers and multifunction peripherals
- External USB hard drives and storage devices
- USB hubs and compatible peripherals
- Computer and workstation equipment
- Commercial and office installations
Specifications
| Brand | Eaton / Tripp Lite |
|---|
| Part Number / MPN | U322-010-BK |
|---|
| Product Type | USB 3.2 Gen 1 SuperSpeed Device Cable |
|---|
| Cable Type | Passive |
|---|
| USB Specification | USB 3.2 Gen 1 |
|---|
| Maximum Data Transfer Rate | Up to 5 Gbps |
|---|
| Connector A | USB-A Male |
|---|
| Connector B | USB-B Male |
|---|
| Cable Length | 10 ft (3.05 m) |
|---|
| Cable Outer Diameter | 5.5 mm |
|---|
| Connector Plating | Nickel |
|---|
| Contact Plating | Gold |
|---|
| Connector Style | Straight |
|---|
| Jacket Material | PVC |
|---|
| Jacket Rating | VW-1 |
|---|
| Jacket Color | Black |
|---|
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
|---|
| Storage Temperature | -4°F to 185°F (-20°C to 85°C) |
|---|
| Operating Humidity | 10% to 85% RH, non-condensing |
|---|
| UPC | 037332183132 |
|---|
| Compliance | CE, FCC, REACH, RoHS |
|---|
| Warranty | Lifetime limited warranty |
|---|
Package Contents
One Eaton U322-010-BK 10 ft USB 3.2 Gen 1 SuperSpeed A-to-B device cable.
Compatibility
The U322-010-BK is designed for computers and peripherals equipped with USB-A and USB-B ports and USB 3.2 Gen 1 capability. It is backward compatible with USB 2.0 equipment.
Frequently Asked Questions
What connectors does the U322-010-BK use?
It has a USB-A male connector on one end and a USB-B male connector on the other.
How long is the U322-010-BK?
The cable is 10 ft (3.05 m) long.
What is the maximum data transfer speed?
The U322-010-BK supports USB 3.2 Gen 1 SuperSpeed transfer rates up to 5 Gbps.
Is the U322-010-BK an extension cable?
No. It is an A-to-B device cable designed for a direct connection between a USB host and a USB-B peripheral.
Can it be used with USB 2.0 equipment?
Yes. The cable is backward compatible with USB 2.0 devices, with the actual operating speed determined by the connected equipment.
