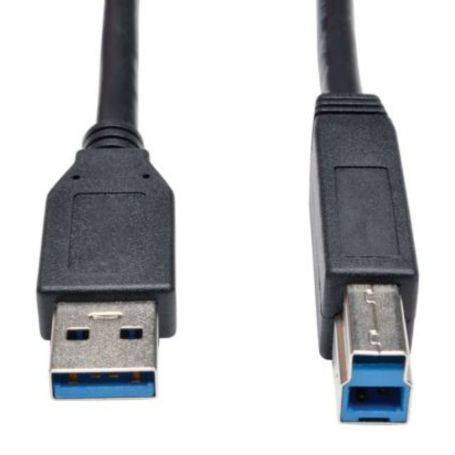

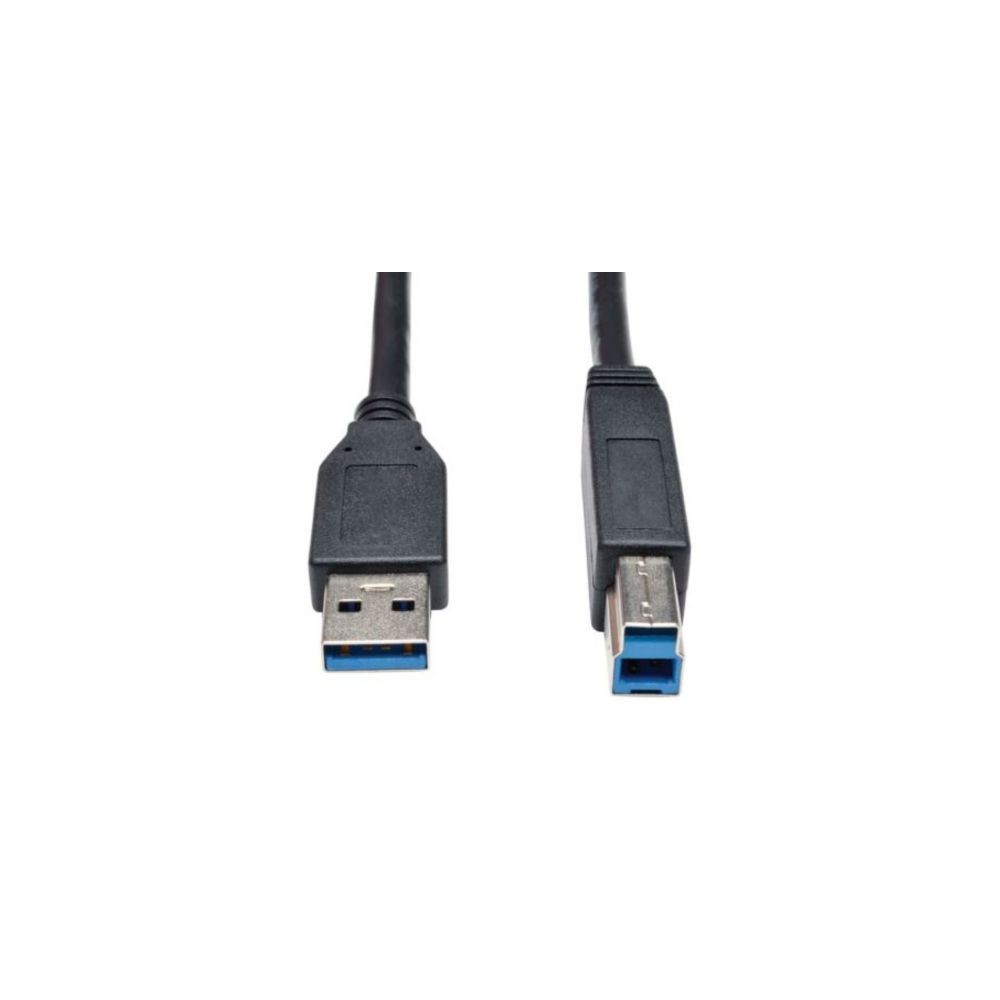

Eaton U322-003-BK Tripp Lite USB 3 2 Gen 1 SuperSpeed Cable 3 ft A to B
The Eaton U322-003-BK is a 3 ft USB 3.2 Gen 1 SuperSpeed device cable with a USB-A male connector on one end and a USB-B male connector on the other. It supports data transfer rates up to 5 Gbps and provides a direct connection between compatible computers, hubs, printers, external storage devices, and other USB-B peripherals.
USB-A to USB-B SuperSpeed Connectivity
The passive U322-003-BK is designed for USB 3.2 Gen 1 connections where a standard USB-A host port connects to a USB-B device port. Its 3 ft length provides a practical connection distance for desktop and equipment installations while keeping excess cable length relatively low.
Key Features
- USB 3.2 Gen 1 SuperSpeed data transfer up to 5 Gbps
- USB-A male to USB-B male connector configuration
- 3 ft (0.91 m) cable length
- Passive cable with straight connectors
- Black PVC jacket with VW-1 rating
DC Supplies Product Note
The U322-003-BK is a device cable rather than an extension cable, so its A-to-B configuration is intended to connect a USB host directly to equipment with a USB-B device port. This makes connector matching important when selecting the cable for printers, hubs, storage devices, or other USB-B peripherals.
Typical Applications
- USB-B printers and multifunction peripherals
- External USB storage equipment
- USB hubs and compatible docking equipment
- Computer and workstation peripherals
- Commercial and office USB installations
Specifications
| Brand | Eaton / Tripp Lite |
|---|
| Part Number / MPN | U322-003-BK |
|---|
| Product Type | USB 3.2 Gen 1 SuperSpeed Device Cable |
|---|
| Cable Type | Passive |
|---|
| USB Specification | USB 3.2 Gen 1 |
|---|
| Maximum Data Transfer Rate | Up to 5 Gbps |
|---|
| Connector A | USB-A Male |
|---|
| Connector B | USB-B Male |
|---|
| Cable Length | 3 ft (0.91 m) |
|---|
| Cable Outer Diameter | 5.5 mm |
|---|
| Wire Gauge | 24 AWG / 28 AWG / 28 AWG |
|---|
| Shielding | Shielded |
|---|
| Connector Plating | Nickel |
|---|
| Contact Plating | Gold |
|---|
| Connector Style | Straight |
|---|
| Jacket Material | PVC |
|---|
| Jacket Rating | VW-1 |
|---|
| Jacket Color | Black |
|---|
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
|---|
| Storage Temperature | -4°F to 185°F (-20°C to 85°C) |
|---|
| Operating Humidity | 10% to 85% RH, non-condensing |
|---|
| UPC | 037332183118 |
|---|
| Compliance | CE, FCC, RoHS, REACH |
|---|
| Warranty | Lifetime limited warranty |
|---|
Package Contents
One Eaton U322-003-BK 3 ft USB 3.2 Gen 1 SuperSpeed A-to-B device cable.
Compatibility
The cable is designed for USB-A host connections to peripherals equipped with USB-B ports. USB 3.2 Gen 1-compatible equipment is required to achieve transfer rates up to 5 Gbps.
Frequently Asked Questions
What connectors does the U322-003-BK use?
It has a USB-A male connector and a USB-B male connector.
How long is the U322-003-BK?
The cable is 3 ft (0.91 m) long.
What is the maximum data transfer speed?
The U322-003-BK supports USB 3.2 Gen 1 SuperSpeed data transfer rates up to 5 Gbps.
Is this an extension cable?
No. The U322-003-BK is a USB-A-to-USB-B device cable designed to connect a USB host directly to a USB-B peripheral.
Is the cable shielded?
Yes. The cable is specified as shielded and uses a black PVC jacket with a VW-1 rating.
