Detailed Specifications

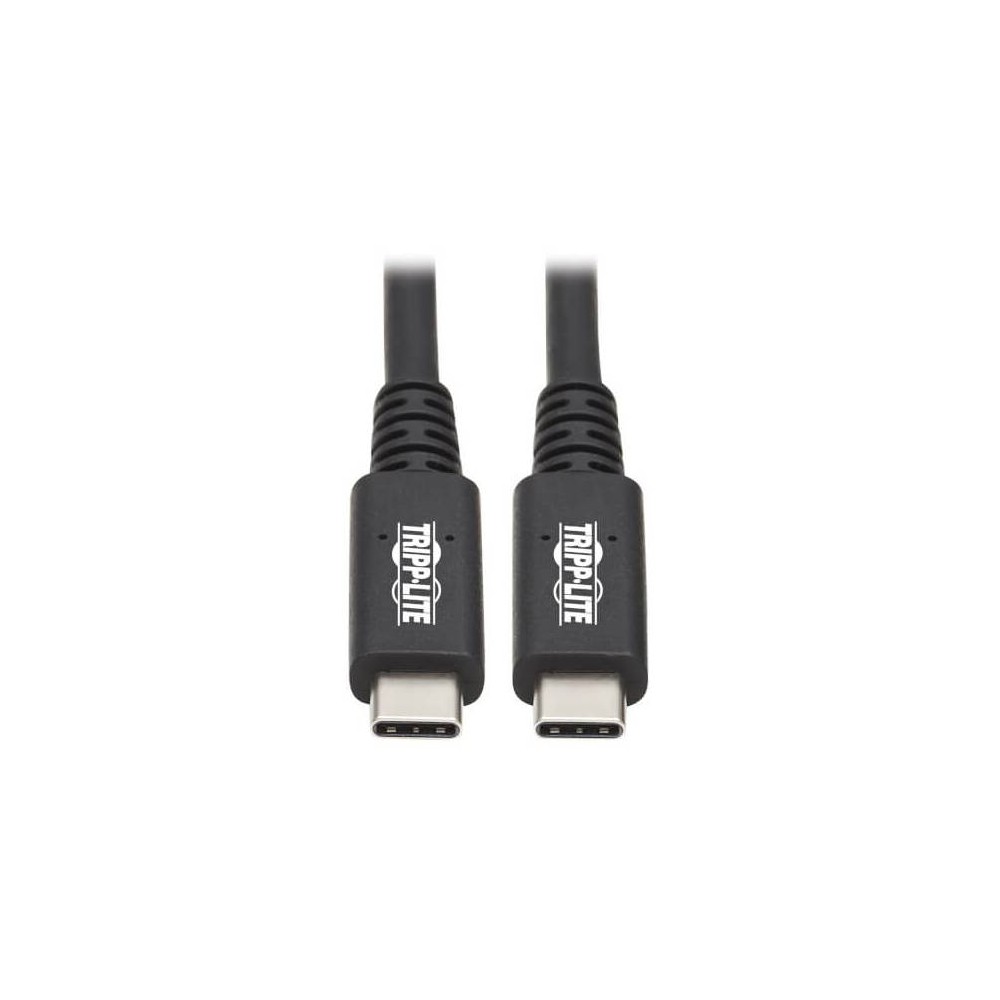

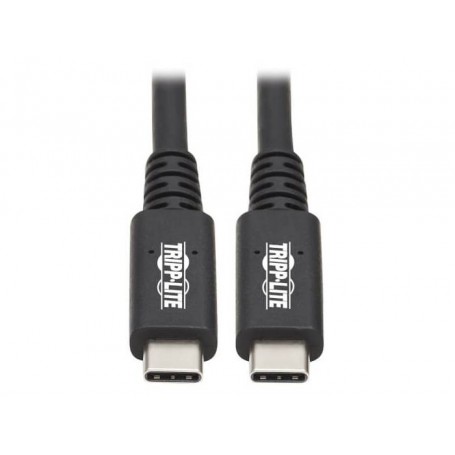

Eaton U520-31N USB4 40Gbps USB-C Cable Compatible Tripp Lite
Overview :
The Eaton U520-31N is a Tripp Lite by Eaton USB4 40Gbps cable featuring USB-C male connectors on both ends. The 31-inch (0.8 m) cable is designed for high-speed data transfer, USB-C video connectivity and Power Delivery charging.
It supports data transfer speeds of up to 40 Gbps, 100W USB Power Delivery (20V/5A) and video resolutions up to 8K at 60 Hz. When connected to compatible DisplayPort Alt Mode 1.4 devices, it can support a single 8K display or dual 4K displays at 60 Hz. The cable is also backward compatible with USB 3.x, USB 2.0 and Thunderbolt 3 devices.
Key Features :
- USB4 40Gbps high-speed cable
- USB-C male-to-male configuration
- 31 in. (0.8 m) cable length
- Supports data transfer speeds up to 40 Gbps
- Supports USB Power Delivery 3.0
- Provides up to 100W charging power (20V/5A)
- Supports a single 8K display at 60 Hz
- Supports dual 4K displays at 60 Hz
- Supports DisplayPort Alternate Mode
- Backward compatible with USB 3.x and USB 2.0
- Compatible with Thunderbolt 3 devices
- Reversible USB-C connectors
- Passive cable design
- Black TPE jacket
- VW-1 cable jacket rating
- Nickel-plated connector construction with gold-plated contacts
- Plug-and-play operation
- 3-year limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | U520-31N |
| Product Type | USB4 40Gbps Cable |
| Cable Configuration | USB-C Male to USB-C Male |
| Connector A | USB-C Male |
| Connector B | USB-C Male |
| USB Specification | USB4 |
| Maximum Data Transfer Rate | 40 Gbps |
| Cable Length | 31 in. (0.8 m) |
| Cable Length | 2.62 ft. |
| Power Delivery | USB PD 3.0 |
| Maximum Power Output | 100W |
| Power Rating | 20V / 5A |
| Video Support | 8K at 60 Hz |
| Maximum Video Resolution | 7680 × 4320 |
| Display Support | Single 8K or dual 4K displays at 60 Hz |
| Display Technology | DisplayPort Alternate Mode |
| Thunderbolt Compatibility | Thunderbolt 3 |
| Cable Type | Passive |
| Cable Jacket Material | TPE |
| Cable Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter | 5.0 mm |
| Connector Style | Straight |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Operating Temperature | 14° to 140°F (-10° to 60°C) |
| Storage Temperature | -4° to 158°F (-20° to 70°C) |
| Operating Humidity | 10% to 85% RH, non-condensing |
| Storage Humidity | 10% to 85% RH, non-condensing |
| Compliance | CE, FCC, REACH, RoHS |
| UPC | 037332261359 |
