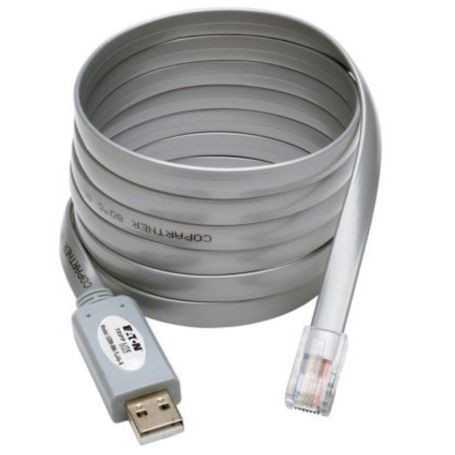

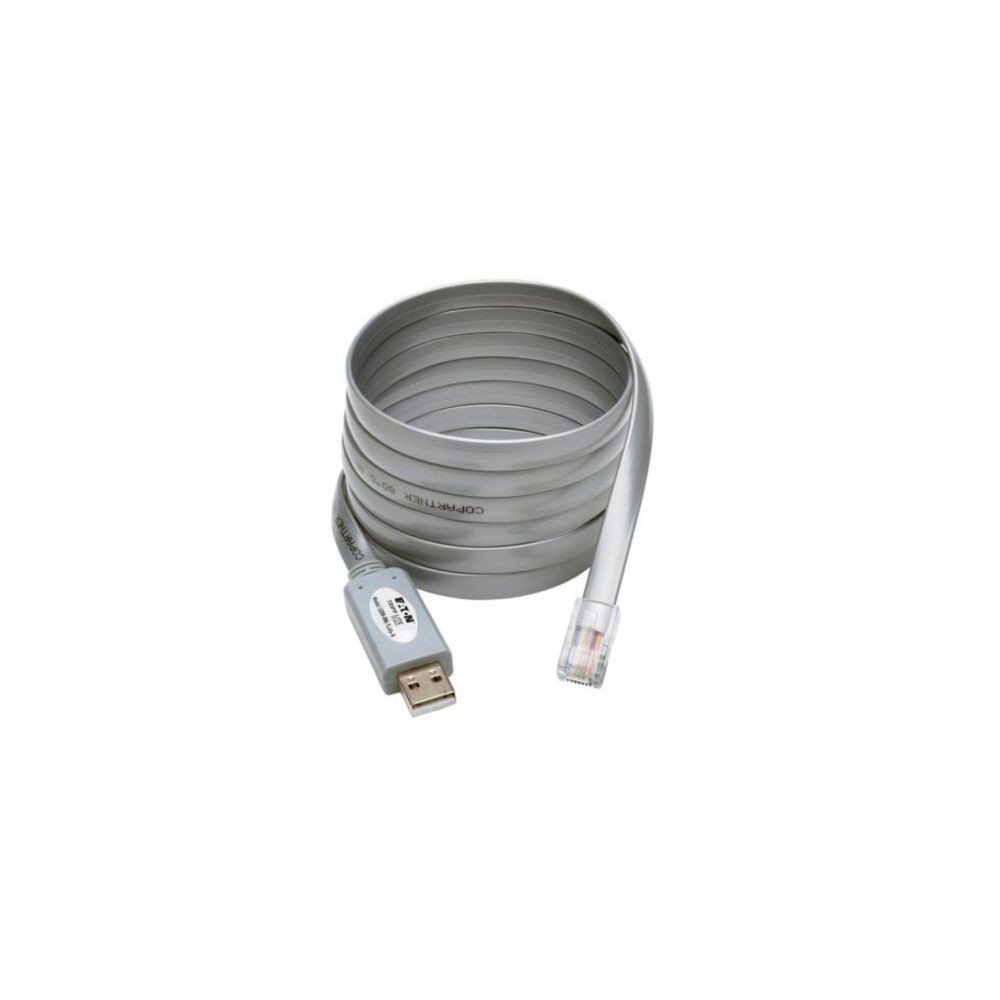

Eaton U209-006-RJ45-X Tripp Lite USB A to RJ45 Cisco Serial Rollover Cable 6 ft
The Eaton Tripp Lite U209-006-RJ45-X is a 6 ft USB-A to RJ45 serial rollover cable designed to connect a computer or laptop USB port to a Cisco modem, router, firewall, switch, or other compatible serial device with an RJ45 console port. It uses an FTDI chipset and supports data transfer rates up to 250 Kbps.
USB-A to RJ45 Console Connection
The cable provides a USB-A male connector on one end and an RJ45 male connector on the other. Its Cisco-compatible rollover configuration is intended for supported console connections, allowing a computer with USB connectivity to communicate with compatible Cisco and other serial-based network equipment.
FTDI-Based Serial Connectivity
The U209-006-RJ45-X utilizes an FTDI chipset and supports Windows, Mac, and Linux operating systems. Drivers are required for operation; a driver CD is included, and Eaton/Tripp Lite also provides drivers online for computers without an optical drive.
Shielding and Power
Double shielding helps reduce crosstalk and EMI/RFI line noise. The cable is USB powered, so it does not require an external power supply or separate power connection.
Key Features
- USB-A male to RJ45 male serial rollover cable
- 6 ft (1.83 m) cable length
- Cisco compatible for supported RJ45 console connections
- FTDI chipset with data transfer rates up to 250 Kbps
- Double shielding with PVC cable jacket
Applications
Use the U209-006-RJ45-X for console connectivity between a USB-equipped computer and compatible Cisco modems, routers, firewalls, switches, and other serial-based network devices with RJ45 console ports.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | U209-006-RJ45-X |
| Product Type | USB to RJ45 Serial Rollover Cable |
| Cable Length | 6 ft (1.83 m) |
| Side A Connector | USB-A Male |
| Side B Connector | RJ45 Male |
| Application | Cisco serial console connectivity |
| Chipset | FTDI |
| Maximum Data Transfer Rate | 250 Kbps |
| USB Power | Yes |
| External Power Supply | Not required |
| Shielding | Double shielded |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Gray |
| Connector Plating | Gold |
| Wire Gauge | 26 AWG |
| Cable Outer Diameter | 2.5 mm |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Operating Humidity | 0–90% RH, non-condensing |
| Product Dimensions | 2.05 × 0.75 × 0.35 in |
| Product Weight | 0.24 lb |
| Compliance | FCC, CE, RoHS, REACH |
| Warranty | 3-year limited warranty |
| UPC | 037332190017 |
Package Contents
- U209-006-RJ45-X USB to RJ45 Cisco Serial Rollover Cable
- Driver CD
- Owner's Manual
Frequently Asked Questions
What connectors does the U209-006-RJ45-X use?
It has a USB-A male connector on one end and an RJ45 male connector on the other.
Is the U209-006-RJ45-X compatible with Cisco equipment?
Yes. Eaton specifies the cable as Cisco compatible for connecting a computer to supported Cisco devices with RJ45 console ports.
How long is the cable?
The cable is 6 ft (1.83 m) long.
Does the cable need an external power supply?
No. The U209-006-RJ45-X is powered through the USB connection.
Which operating systems are supported?
The cable is compatible with Windows, Mac, and Linux systems. A driver is required for operation.
