Detailed Specifications

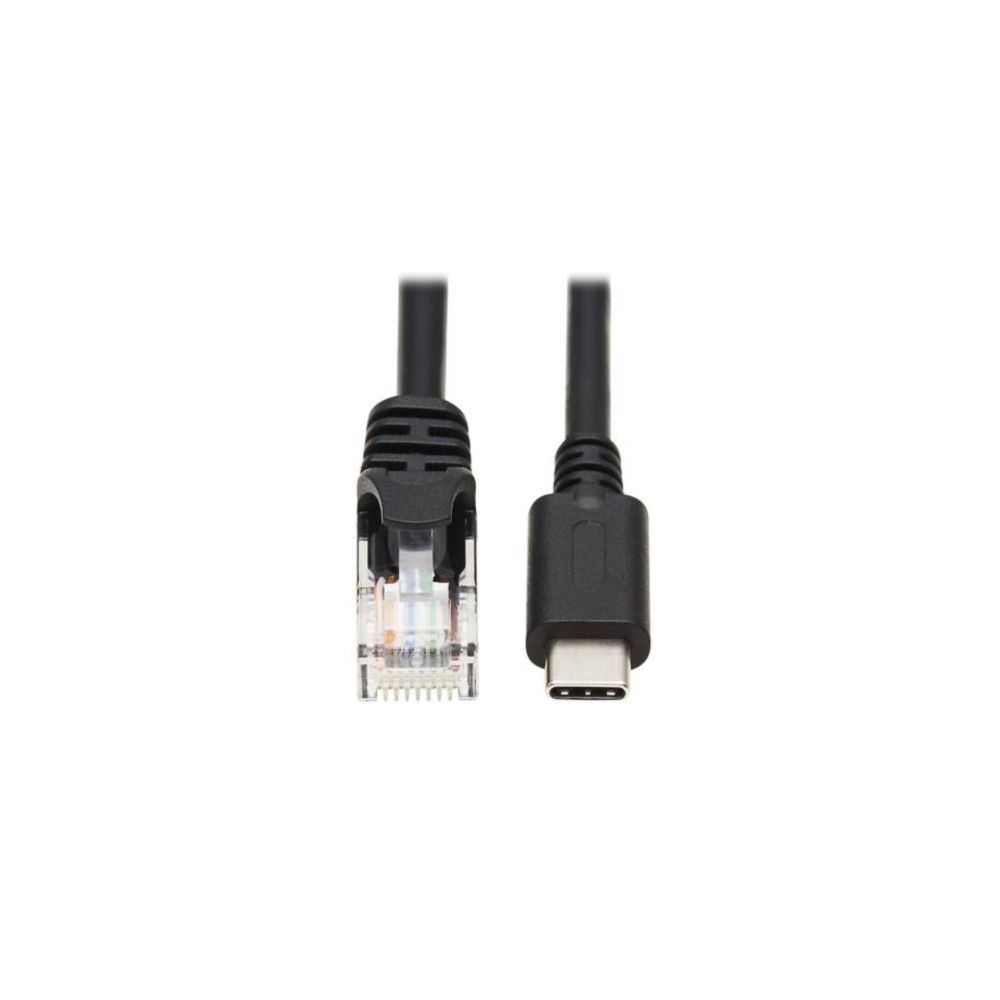

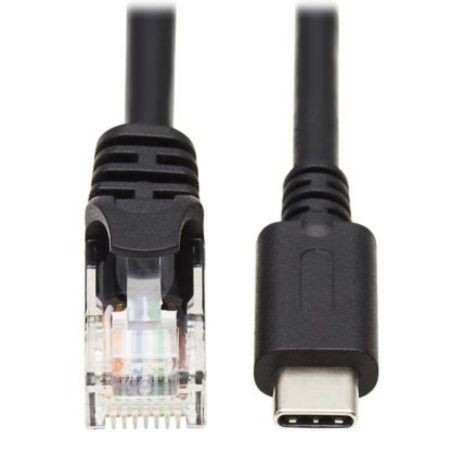

Eaton U209-006-RJ45XC Tripp Lite USB-C to RJ45 Serial Rollover Cable 6ft
Overview
The Eaton Tripp Lite U209-006-RJ45XC is a USB-C to RJ45 serial rollover cable for connecting a computer or laptop to Cisco equipment with an RJ45 console port. It is intended for network configuration, console access, and out-of-band management.
The cable supports serial data transfer rates up to 250 Kbps and uses male USB-C and RJ45 connectors. Its 6 ft. (1.83 m) length supports practical console connections between host systems and network equipment.
It is compatible with Windows, macOS, and Linux and can also connect to an Eaton G4 PDU Network Card for out-of-band management. The cable requires a USB-C host port and an RJ45 console interface on the target equipment.
This is a serial console cable, not a standard Ethernet networking cable. It should not be selected where a conventional RJ45 Ethernet connection is required.
Key Features
- USB-C to RJ45 connection for Cisco console access
- Supports serial data transfer rates up to 250 Kbps
- Double shielding reduces EMI, RFI, and crosstalk
- Compatible with Windows, macOS, and Linux systems
- Supports Eaton G4 PDU out-of-band management
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | U209-006-RJ45XC |
| Product Type | USB-C to RJ45 serial rollover cable |
| Cable Length | 6 ft. (1.83 m) |
| Connector A | USB-C male |
| Connector B | RJ45 male |
| Technology | Serial; USB |
| Data Transfer Rate | Up to 250 Kbps |
| Cable Type | Round |
| Shielding | Shielded |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter | RJ45: 5.5 mm; USB: 4.7 mm |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Humidity | 0% to 90% RH, non-condensing |
