Detailed Specifications

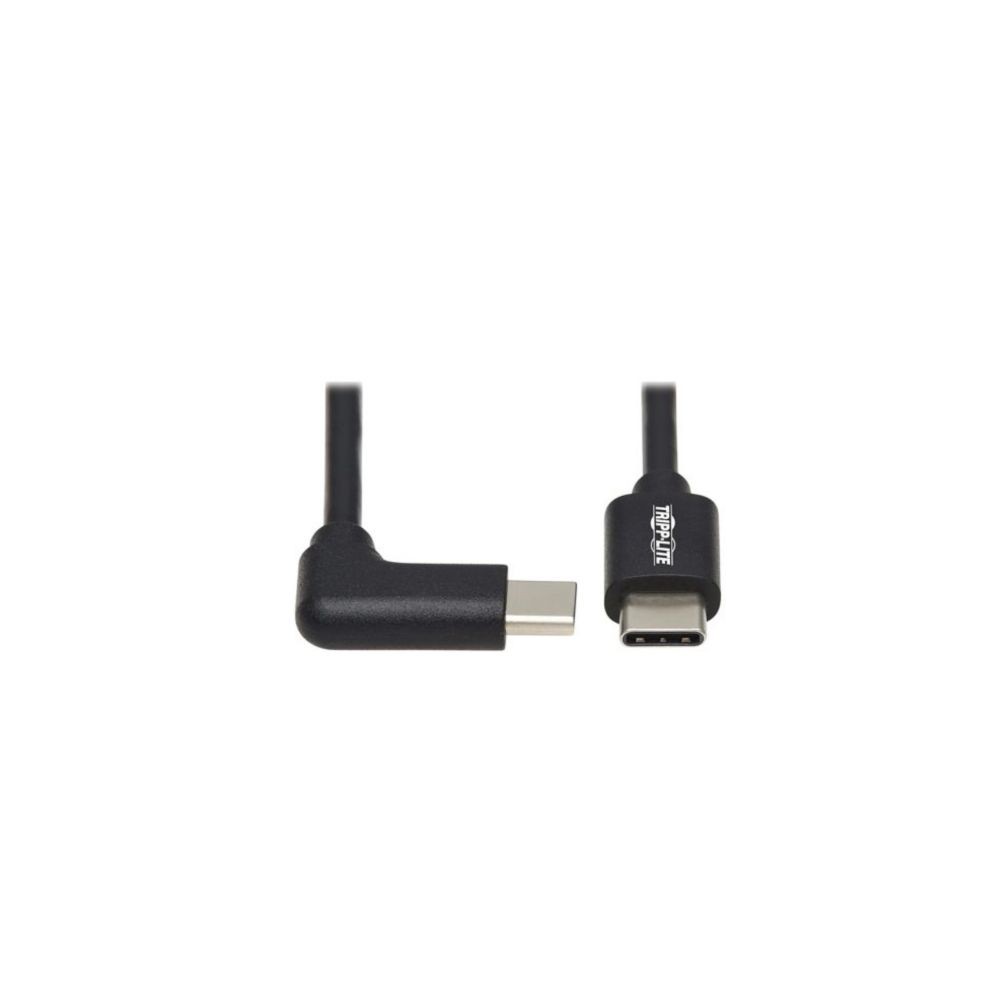

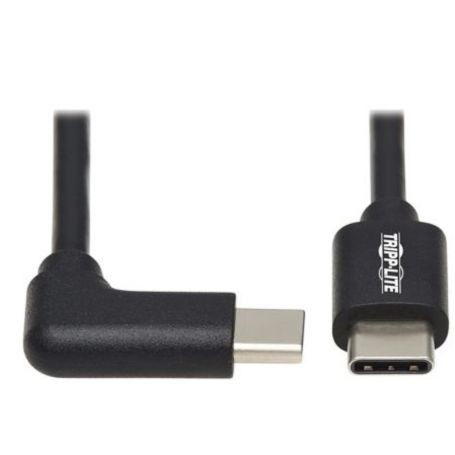

Eaton U040-02M-C-RA Tripp Lite USB C Cable M M USB 2 0 Right Angle Plug Black 2 m (6.6 ft.)
Overview
The Eaton Tripp Lite U040-02M-C-RA is a 2 m (6.6 ft) passive USB-C to USB-C cable with male connectors at both ends. One USB-C plug uses a right-angle configuration to reduce clearance requirements around connected equipment.
The cable supports USB 2.0 High-Speed data transfer up to 480 Mbps and USB Power Delivery up to 60W at 20V/3A. Both USB-C plugs are reversible, supporting connection in either orientation.
It is suitable for charging and data connections between compatible USB-C or Thunderbolt 3 devices, including laptops, chargers, docking stations and hubs. It should not be selected where USB 3.x SuperSpeed bandwidth is required.
Key Features
- Supports USB 2.0 High-Speed data rates up to 480 Mbps
- Provides USB PD charging up to 60W at 20V/3A
- Right-angle USB-C plug reduces connector clearance requirements
- Reversible USB-C plugs simplify connection orientation
- 2 m length supports desktop and equipment-side installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | U040-02M-C-RA |
| Product Type | USB-C to USB-C Right-Angle Cable |
| Cable Length | 2 m (6.6 ft) |
| Connector A | USB-C Male, Right-Angle |
| Connector B | USB-C Male |
| USB Standard | USB 2.0 High Speed |
| Maximum Data Rate | Up to 480 Mbps |
| Power Delivery | USB PD |
| Maximum Power | 60W |
| Maximum Voltage | 20V |
| Maximum Current | 3A |
| Cable Type | Passive |
| Shielding | Unshielded |
| Cable Outer Diameter | 3.5 mm |
| Jacket Material | PVC |
| Jacket Color | Black |
| Jacket Rating | VW-1 |
| Connector Plating | Nickel / gold contacts |
| Operating Temperature | -10 to 60 °C |
| Storage Temperature | -20 to 70 °C |
| Operating Humidity | 10–85% RH, non-condensing |
| Storage Humidity | 10–85% RH, non-condensing |
| Compatibility | USB-C and Thunderbolt 3 devices |
| Warranty | Lifetime limited warranty |
