Detailed Specifications

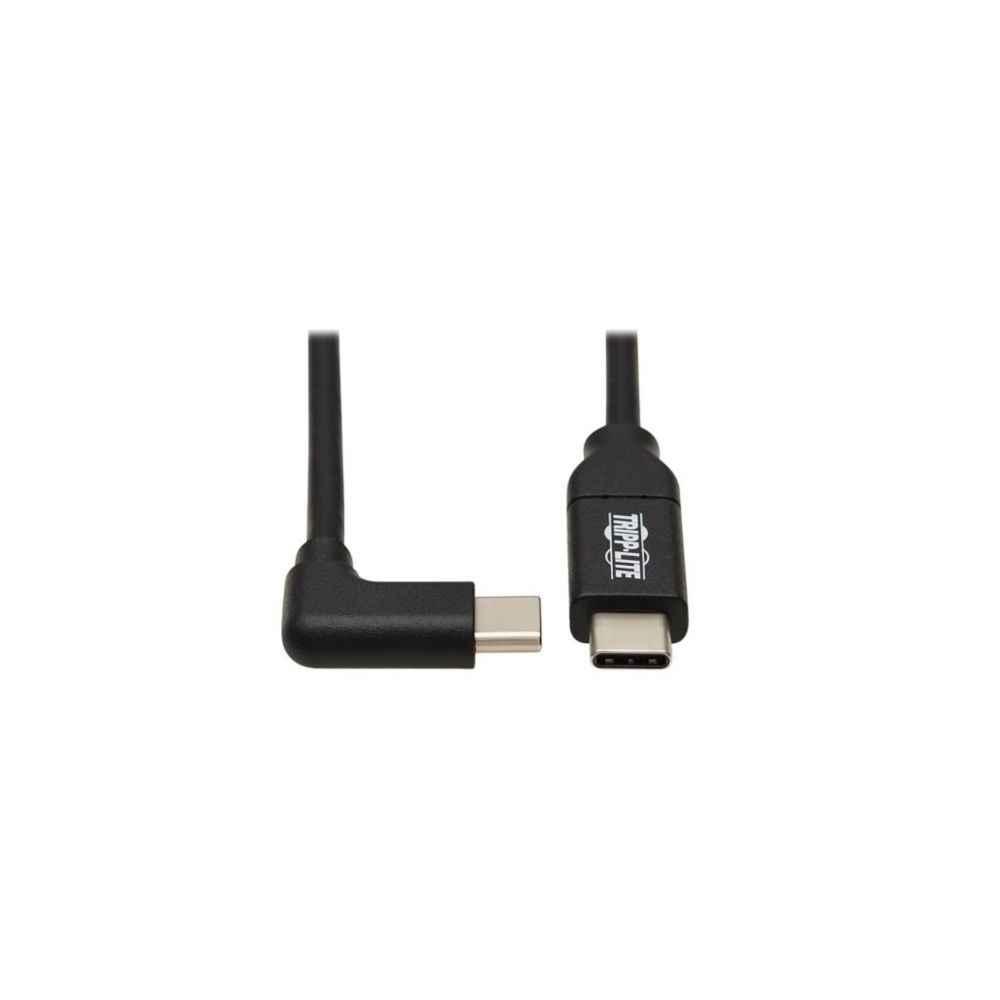

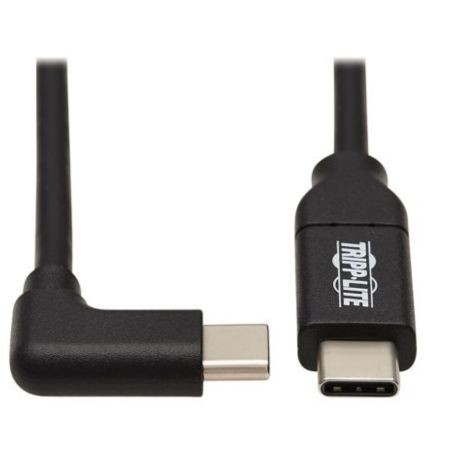

Eaton U040-02M-C-5ARA Tripp Lite USB C Cable M M USB 2 0 5A 100W Rated Right Angle Plug Black 2 m (6.6 ft.)
Overview
The Eaton Tripp Lite U040-02M-C-5ARA is a 2 m (6.6 ft) passive USB-C to USB-C cable with one right-angle USB-C male plug and one straight USB-C male plug. It is designed for charging and data connections between compatible USB-C or Thunderbolt 3 devices.
The cable supports USB 2.0 High-Speed data transfer up to 480 Mbps and USB Power Delivery up to 100W at 20V/5A. Both USB-C connectors are reversible, while the right-angle plug helps reduce connector clearance requirements in confined installations.
It is suitable for laptop charging, USB-C peripheral connections, external storage and docking or hub connections where USB 2.0 bandwidth is sufficient. It should not be selected when USB 3.x SuperSpeed data rates are required.
Key Features
- Supports USB 2.0 High-Speed data rates up to 480 Mbps
- Delivers USB PD charging up to 100W at 20V/5A
- Right-angle USB-C plug improves clearance in confined spaces
- Reversible USB-C connectors simplify connection orientation
- 2 m length supports charging and peripheral connections
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | U040-02M-C-5ARA |
| Product Type | USB-C to USB-C Right-Angle Cable |
| Cable Length | 2 m (6.6 ft) |
| Connector A | USB-C Male, Right-Angle |
| Connector B | USB-C Male |
| USB Standard | USB 2.0 High Speed |
| Maximum Data Rate | Up to 480 Mbps |
| Power Delivery | USB PD |
| Maximum Power | 100W |
| Maximum Current | 5A |
| Maximum Voltage | 20V |
| Cable Type | Passive |
| Cable Outer Diameter | 4.0 mm |
| Jacket Material | PVC |
| Jacket Color | Black |
| Connector Plating | Nickel / gold contacts |
| Shielding | Unshielded |
| Operating Temperature | -10 to 60 °C |
| Storage Temperature | -20 to 70 °C |
| Operating Humidity | 10–85% RH, non-condensing |
| Storage Humidity | 10–85% RH, non-condensing |
| Compatibility | USB-C and Thunderbolt 3 devices |
| Warranty | 3-year limited worldwide warranty |
