Detailed Specifications

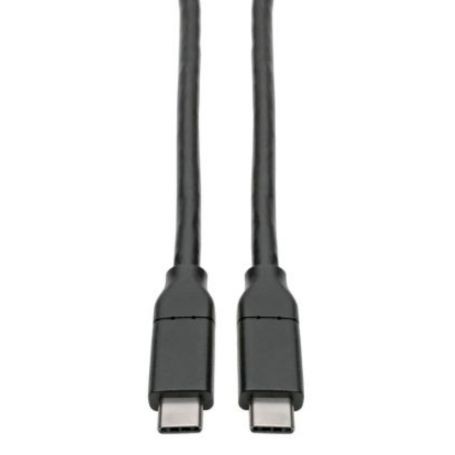

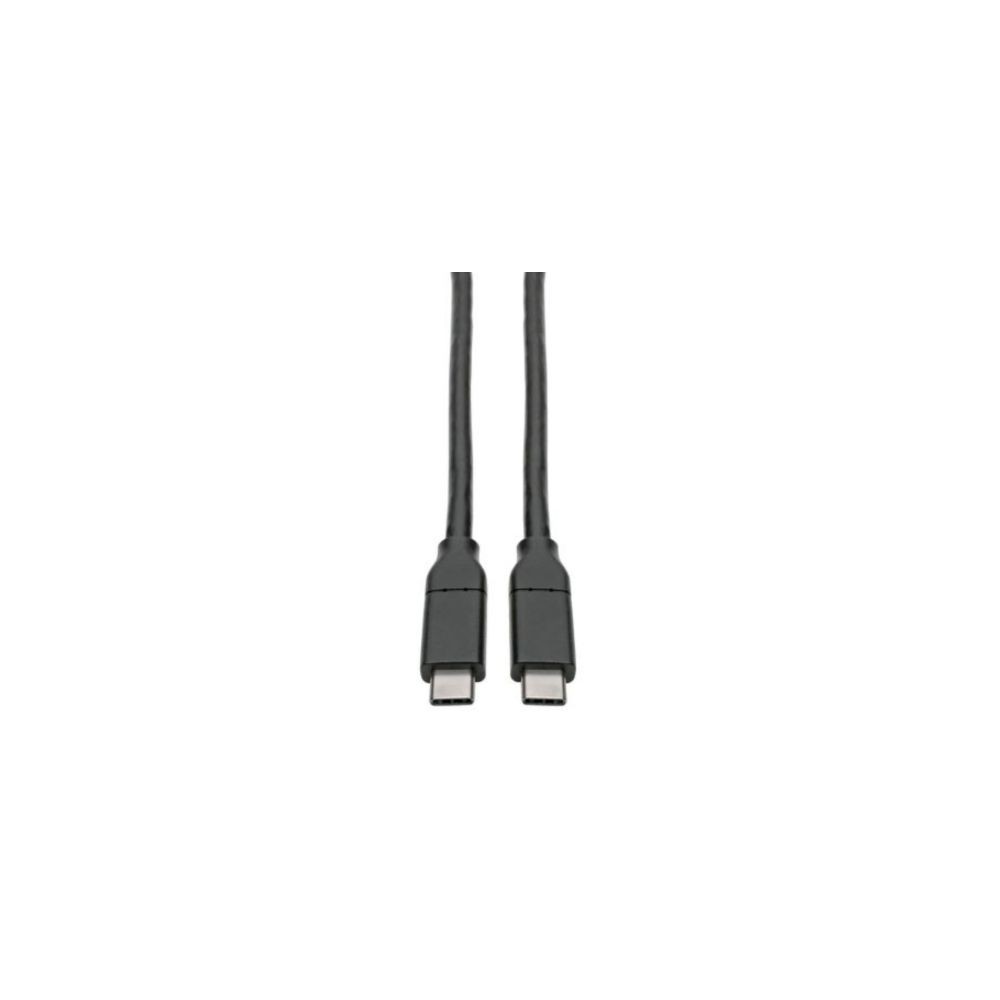

Eaton U040-C13-C-5A Tripp Lite USB C Cable M M USB 2 0 5A 100W Rated USB IF Certified 13 ft (3.96 m)
Overview
The Eaton Tripp Lite U040-C13-C-5A is a 13 ft (3.96 m) passive USB-C to USB-C cable designed for charging, synchronization, and USB 2.0 data transfer between compatible USB-C devices. It supports data rates up to 480 Mbps.
The cable is rated for up to 5A/100W Power Delivery and is USB-IF certified. Reversible USB-C male connectors support connections between USB-C computers, docking stations, hubs, chargers, storage devices, and other compatible equipment.
Because it uses USB 2.0 rather than USB 3.x, it should be selected for charging and standard data-transfer requirements rather than SuperSpeed USB applications. The cable is passive and requires compatible USB-C or Thunderbolt 3 ports.
Key Features
- Supports USB 2.0 data transfer rates up to 480 Mbps
- Rated for up to 5A/100W Power Delivery charging
- USB-IF certified for specified USB performance standards
- Reversible USB-C male connectors simplify device connection
- 13-foot length supports extended charging and data layouts
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | U040-C13-C-5A |
| Product Type | USB-C to USB-C Cable |
| Cable Length | 13 ft (3.96 m) |
| Connector A | USB-C Male |
| Connector B | USB-C Male |
| USB Specification | USB 2.0 High Speed |
| Maximum Data Rate | 480 Mbps |
| Maximum Current | 5A |
| Maximum Power | 100W |
| Cable Type | Passive |
| USB-IF Certified | Yes |
| Cable Outer Diameter | 5.0 mm |
| Wire Gauge | 24 AWG / 30 AWG |
| Shielding | Unshielded |
| Connector Plating | Nickel / Gold contacts |
| Cable Jacket | PVC |
| Cable Jacket Rating | VW-1 |
| Color | Black |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 10%–85% RH, non-condensing |
| Warranty | 3-year limited |
