Detailed Specifications

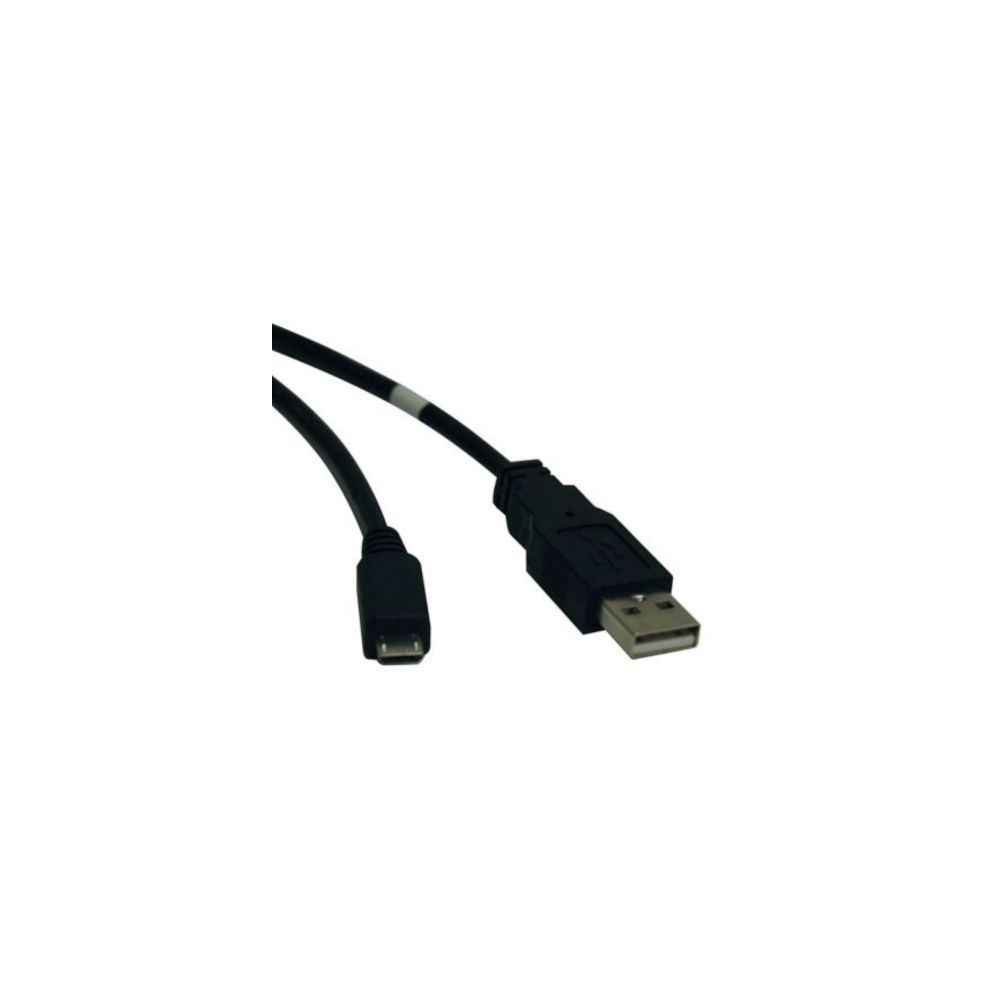

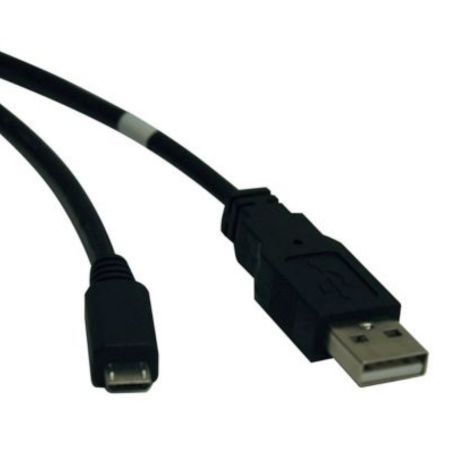

Eaton U050-003 Tripp Lite USB 2 0 A to Micro B Cable M M 3 ft (0.91 m)
Overview
The Eaton Tripp Lite U050-003 is a 3 ft passive USB 2.0 cable with a USB-A male connector on one end and a Micro-B male connector on the other. It supports both USB data transfer and device power connections.
The cable supports USB 2.0 High-Speed transfer rates up to 480 Mbps and is intended for compatible computers, peripherals, mobile devices, digital cameras, and other Micro-B equipment. It provides a straightforward connection for data synchronization and charging applications.
Its passive construction makes it appropriate for standard short-distance USB connections rather than signal extension. It should be selected when the connected equipment uses Micro-B rather than USB-C or Mini-B.
Key Features
- Supports USB 2.0 High-Speed data rates up to 480 Mbps
- USB-A male to Micro-B male configuration for direct connection
- 3 ft length suits standard desktop peripheral installations
- Passive design provides straightforward data and power transfer
- Black cable construction supports general equipment deployment
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | U050-003 |
| Product Type | USB 2.0 A to Micro-B Cable |
| Cable Length | 3 ft (0.91 m) |
| Connector A | USB-A Male |
| Connector B | Micro USB-B Male |
| USB Specification | USB 2.0 High Speed |
| Maximum Data Rate | 480 Mbps |
| Cable Type | Passive |
| Signal Functions | Data Transfer and Charge |
| Connector Style | Straight |
| Connector A Plating | Nickel |
| Connector B Plating | Gold |
| Cable Jacket Color | Black |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Operating Humidity | 0% to 90% RH, non-condensing |
| Storage Humidity | 0% to 90% RH, non-condensing |
| Compliance | RoHS |
| Warranty | Lifetime limited warranty |
