Detailed Specifications

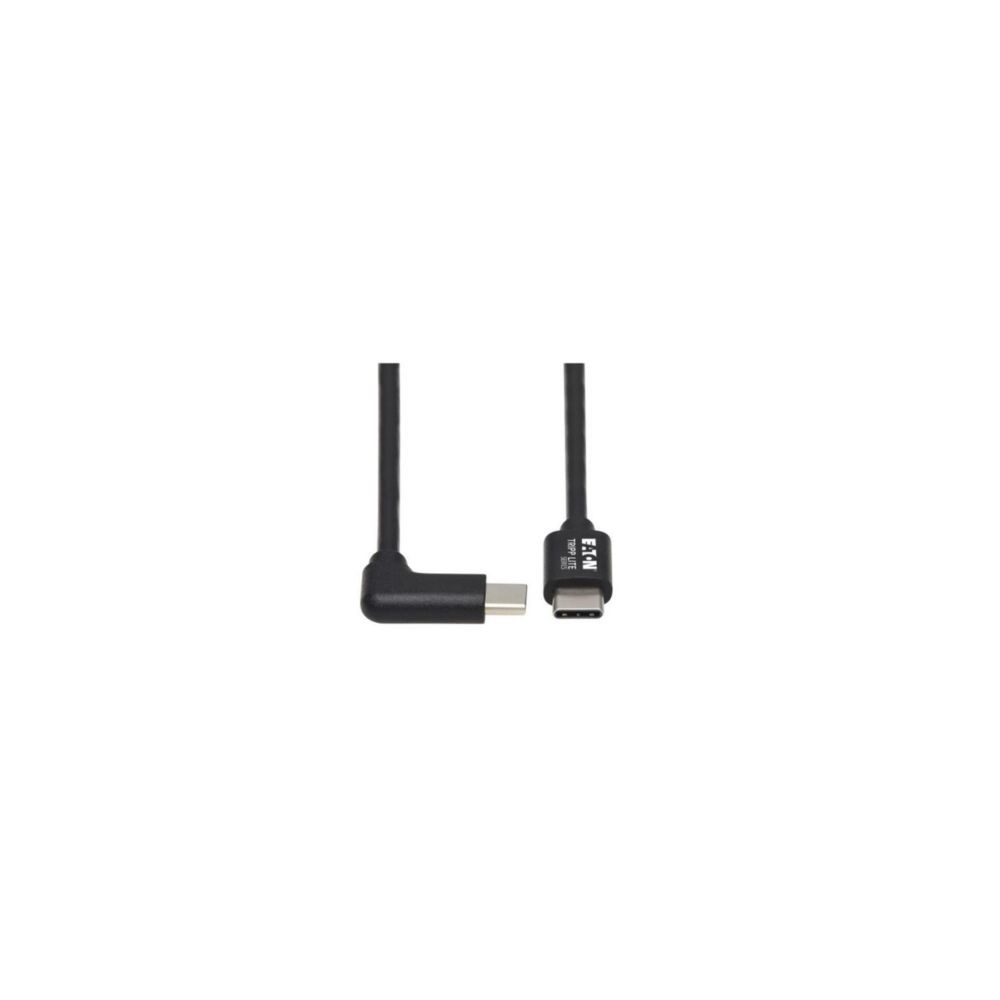

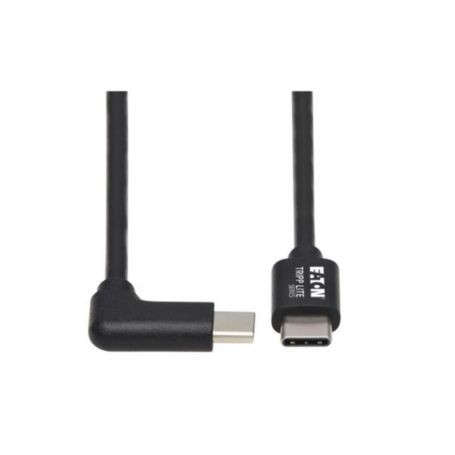

Eaton U040-01M-C-RA Tripp Lite USB-C to USB-C Right-Angle Cable
Overview
The Eaton U040-01M-C-RA, from the Tripp Lite by Eaton connectivity line, is a 1 m (3.3 ft.) passive USB-C male-to-male cable with a space-saving right-angle USB-C connector. It is designed for charging, power delivery, and data connections between USB-C devices, wall chargers, docking stations, hubs, laptops, and compatible peripherals.
The cable supports USB 2.0 data transfer up to 480 Mbps and USB Power Delivery up to 60W (20V/3A). Both USB-C connectors are reversible, while the right-angle connector is intended for installations where straight connectors require additional clearance.
It is compatible with USB-C and Thunderbolt 3 devices and uses a black PVC jacket with a VW-1 rating, nickel-plated connectors, and gold-plated contacts.
Key Features
- USB-C male-to-male cable with one space-saving right-angle connector
- Supports USB 2.0 data transfer up to 480 Mbps
- Supports USB Power Delivery up to 60W (20V/3A)
- 1 m (3.3 ft.) passive cable with reversible USB-C connectors
- Compatible with USB-C and Thunderbolt 3 devices, with nickel-plated connectors and gold-plated contacts
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Model | U040-01M-C-RA |
| Product Type | USB-C to USB-C Cable |
| Cable Standard | USB 2.0 |
| Maximum Data Transfer Rate | 480 Mbps |
| Connector A | USB-C Male, Right-Angle |
| Connector B | USB-C Male |
| Cable Type | Passive |
| Cable Length | 1 m / 3.3 ft. |
| USB Power Delivery | Yes |
| Maximum Power Output | 60W |
| Power Delivery Rating | 20V / 3A |
| Thunderbolt Compatibility | Thunderbolt 3 |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Cable Outer Diameter | 3.0 mm |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | 10-85% RH, non-condensing |
| Compliance | RoHS, REACH |
| Product Dimensions | 0.5 × 9 × 7 in. |
| Product Weight | 0.05 lb |
| Warranty | Lifetime limited warranty |
| UPC | 037332263650 |
