Overview

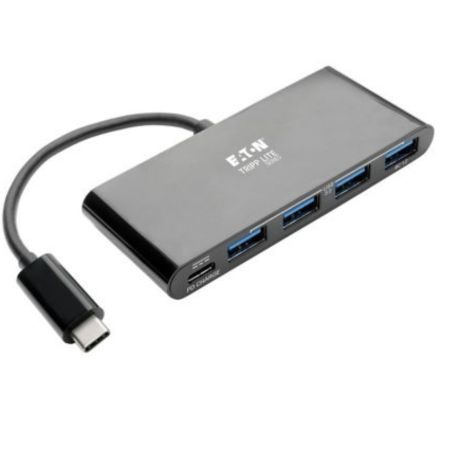

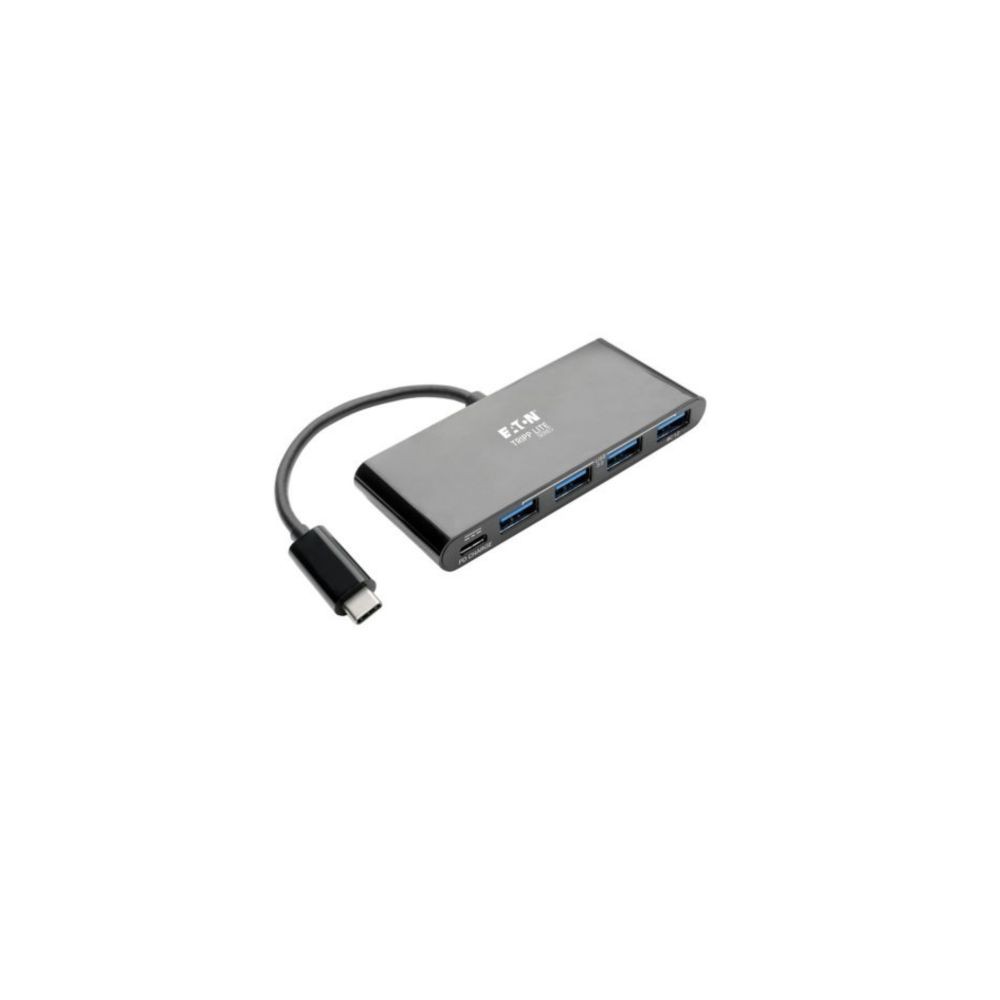

The Tripp Lite U460-004-4AB-C is a compact USB-C hub that expands a compatible computer, tablet, Chromebook, MacBook, smartphone, or other USB-C host with four USB-A peripheral ports. It supports USB 3.x data transfer up to 5Gbps and includes a USB-C Power Delivery port for charging the connected host.
USB Connectivity
The hub provides four USB-A ports for peripherals such as USB flash drives, keyboards, mice, printers, headsets, and external storage devices. The USB data connection supports USB 3.1 Gen 1 speeds up to 5Gbps and is backward compatible with previous USB generations.
USB-C Power Delivery
The dedicated USB-C Power Delivery port accepts power from the host device's compatible USB-C wall charger and supports power input up to 60W (20V/3A). The hub is designed to pass USB-C PD power through to a compatible connected host while its USB-A ports provide peripheral connectivity.
Charging Port
One USB-A port supports battery charging at up to 5V/1.5A (7.5W). The remaining USB-A ports provide USB peripheral connectivity for compatible devices.
Host Connection and Compatibility
The integrated reversible USB-C male plug connects to the host device's USB-C or Thunderbolt 3 port. The hub is bus powered for its operation and requires no separate power adapter or software drivers.
Key Features
- Four USB-A peripheral ports
- USB 3.1 Gen 1 data transfer up to 5Gbps
- USB-C Power Delivery input up to 60W (20V/3A)
- USB-A charging port supports up to 5V/1.5A (7.5W)
- Integrated reversible USB-C host connector with plug-and-play operation
Applications
The U460-004-4AB-C can expand the USB connectivity of compatible laptops, tablets, Chromebooks, MacBooks, smartphones, and PCs. It is suitable for connecting multiple USB-A peripherals while retaining access to USB-C Power Delivery charging.
DC Supplies Product Note
When using USB-C Power Delivery, connect the compatible host's USB-C charger to the hub's dedicated USB-C PD port. The 60W specification is the hub's supported PD power input level; actual charging available to the host depends on the connected charger and host device.
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number / MPN | U460-004-4AB-C |
| Product Type | USB-C Hub |
| Number of USB Hub Ports | 4 |
| USB-A Ports | 4 x USB-A Female |
| Host Connector | USB-C Male |
| USB-C Power Delivery Port | 1 x USB-C Female |
| USB Specification | USB 3.1 Gen 1 / USB 3.2 Gen 1 |
| Maximum Data Rate | 5Gbps |
| USB-C PD Input | Up to 60W (20V/3A) |
| USB-A Charging Output | 5V/1.5A (7.5W) |
| Power Source | Bus Powered |
| Thunderbolt Compatibility | Thunderbolt 3 |
| Material | Plastic |
| Color | Black |
| Cable Jacket Rating | VW-1 |
| Operating Relative Humidity | 10% to 90%, non-condensing |
| Power Consumption | 2W |
| BTU Rating | 7.5 BTU/hr |
| Dimensions | 5.6 x 3.9 x 0.9 in. |
| Warranty | 3-year limited |
| Compliance | CE, FCC, REACH, RoHS |
| UPC | 037332209214 |
FAQs
How many USB-A ports does the U460-004-4AB-C provide?
It provides four USB-A female ports for connecting compatible USB peripherals.
What USB data speed does it support?
The hub supports USB 3.1 Gen 1 data transfer rates up to 5Gbps.
Does the U460-004-4AB-C support USB-C Power Delivery?
Yes. Its dedicated USB-C PD port supports power input up to 60W (20V/3A).
Does one USB-A port support charging?
Yes. The USB-A charging port supports up to 5V/1.5A, or 7.5W.
Does the hub require a separate power adapter?
No. The hub is bus powered. For host charging, a compatible USB-C wall charger is connected to the hub's dedicated USB-C PD port.
