Detailed Specifications

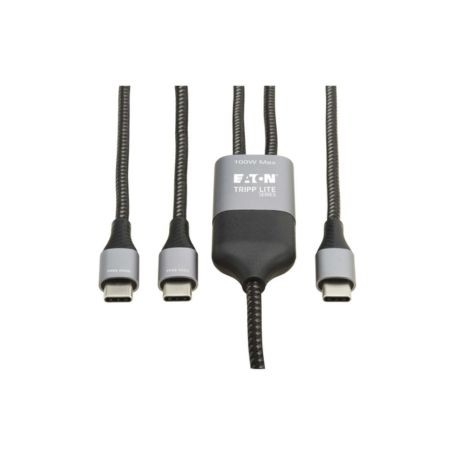

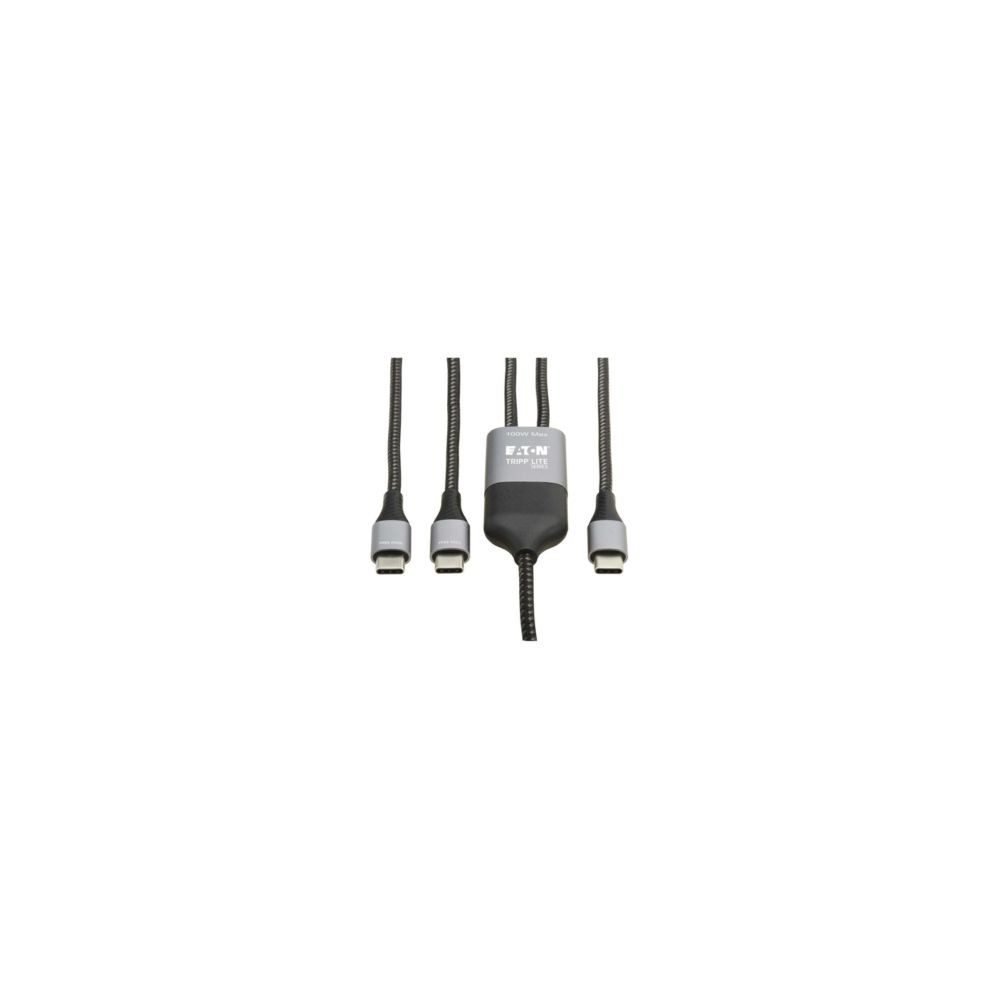

Eaton U420P-2X6-100W 100W USB-C Charging Cable/Splitter
Overview
The Eaton U420P-2X6-100W is a Tripp Lite by Eaton 2-in-1 USB-C charging cable/splitter designed to charge up to two USB-C devices from a single USB-C Power Delivery charging port. It has one USB-C male input connector and two USB-C male output connectors with a total cable length of 6 ft. (1.8 m).
When one device is connected, the cable supports up to 100W (20V/5A). When two devices are connected simultaneously, the outputs provide up to 80W (20V/4A) and 18W (9V/2A) respectively. The connected charger must be rated at 100W or higher to support the cable's full charging capability.
The cable also supports USB 2.0 data transfer up to 480 Mbps and is compatible with USB-C PD 3.0, PD 2.0+PPS and Quick Charge 3.0 and below. It is intended for compatible laptops, tablets, smartphones, Chromebooks, gaming systems and other USB-C devices.
Key Features
- 100W maximum USB-C Power Delivery for charging one compatible device
- 2-in-1 splitter design with one USB-C male input and two USB-C male outputs
- Provides 80W + 18W simultaneous charging when two devices are connected
- Supports USB 2.0 data transfer up to 480 Mbps
- Compatible with USB-C PD 3.0, PD 2.0+PPS and QC 3.0
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series / Brand | Tripp Lite by Eaton |
| Part Number | U420P-2X6-100W |
| Product Type | USB-C Charging Cable/Splitter |
| Cable Configuration | 1 × USB-C Male to 2 × USB-C Male |
| Cable Length | 6 ft. / 1.8 m |
| Maximum Power Output | 100W |
| Single-Device Output | Up to 100W (20V/5A) |
| Dual-Device Output | Up to 80W (20V/4A) + 18W (9V/2A) |
| USB Specification | USB 2.0 |
| Data Transfer Rate | Up to 480 Mbps |
| Power Delivery | USB-C PD 3.0 |
| Additional Charging Protocols | PD 2.0+PPS, QC 3.0 and below |
| Cable Type | Active Splitter Cable |
| Wire Gauge | 23/30 AWG |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Plating | Nickel |
| Cable Outer Diameter | 3.5 mm |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 14°F to 140°F (-10°C to 60°C) |
| Operating Humidity | 10% to 80% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Compliance | RoHS, FCC Class B, CE, UKCA |
| Warranty | 3-Year Limited Warranty |
