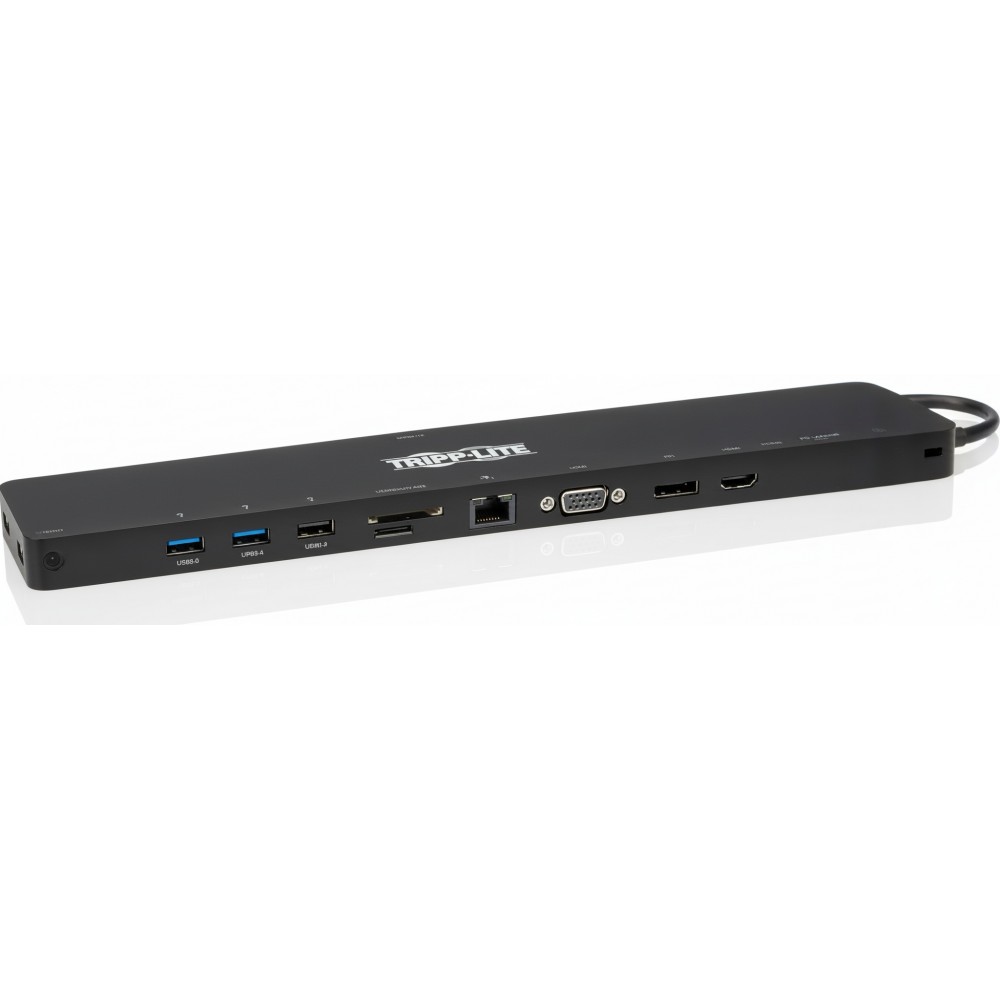

Eaton U442-DOCK7D-B - USB-C Triple-Display Docking Station w/ GbE
Overview
The Eaton U442-DOCK7D-B is a USB-C docking station that expands a single USB-C or Thunderbolt host port into a broad set of workstation-style interfaces × combining video, data, charging, and networking. It's deployed by IT engineers, desktop support teams, and hybrid workspace integrators to convert mobile PCs and laptops into full desktop equivalents without separate adaptors.
This dock supports multiple display outputs (HDMI, DisplayPort, VGA) and data interfaces while delivering up to 100 W Power Delivery (PD 3.0) to the host device. The integrated Gigabit Ethernet (RJ45) provides reliable wired networking where Wi-Fi may be unavailable or unstable. Built-in USB-A and USB-C ports serve peripherals, storage devices, and chargers.
Mechanically, U442-DOCK7D-B uses a USB-C male host connector (detachable cable) and sits on a desktop or workstation surface. It is suited for office desktops, hot desks, shared workspaces, and home offices where users require a consistent, expanded port set from a mobile computer.
The station integrates with standard computing environments via DisplayPort Alt Mode over USB-C, enabling video and audio transport without driver installs on most host systems. It also supports SST/MST multi-stream transport modes for simultaneous multi-monitor configurations when the host GPU supports those modes.
In practical deployments, this dock enables a single-cable workstation connection × ideal for business laptops, Chromebooks, and thin clients. It is not a UPS or network appliance and does not include enterprise-grade remote manageability or built-in switching. Multi-display performance is limited by host GPU bandwidth and macOS typically mirrors rather than extends to multiple displays.
Key Features
- USB-C docking station supporting triple external displays
- Up to 100 W Power Delivery to connected host device
- Integrated Gigabit Ethernet RJ45 port
- Multiple USB-A/C hub ports + SD/Micro SD card readers
- HDMI, DisplayPort, VGA outputs with 4K support
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | U442-DOCK7D-B |
| Product Type | USB-C Triple-Display Docking Station |
| Host Interface | USB-C (male) via detachable cable |
| Video Outputs | 1 × HDMI, 1 × DisplayPort, 1 × VGA |
| Max HDMI Resolution | 3840 × 2160 @ 30 Hz |
| Max DisplayPort Resolution | 4096 × 2160 @ 30 Hz |
| Max VGA Resolution | 1920 × 1200 @ 60 Hz |
| USB-C Ports | 1 × PD-capable (100 W), 1 × Data (5 Gbps) |
| USB-A Ports | 2 × USB 3.2 Gen 1 (5 Gbps), 2 × USB 2.0 |
| Audio | 1 × 3.5 mm combo jack |
| Ethernet | 1 × RJ45 Gigabit (10/100/1000 Mbps) |
| Memory Card Slots | SD, Micro SD (simultaneous access) |
| Power Delivery | USB-C PD 3.0 up to 100 W |
| Color | Black |
| Material | ABS |
| Dimensions (H×W×D) | ~0.74″ × 13.78″ × 2.91″ |
| Weight | ~0.55 lb (250 g) |
| Operating Humidity | 10 %-85 % RH, non-condensing |
| Storage Humidity | 5 %-90 % RH |
| Compliance | FCC, CE, RoHS, REACH; UL Listed |
| Warranty | 3-year limited |
