Overview

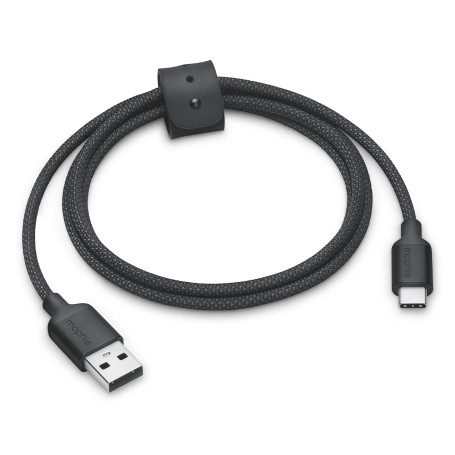

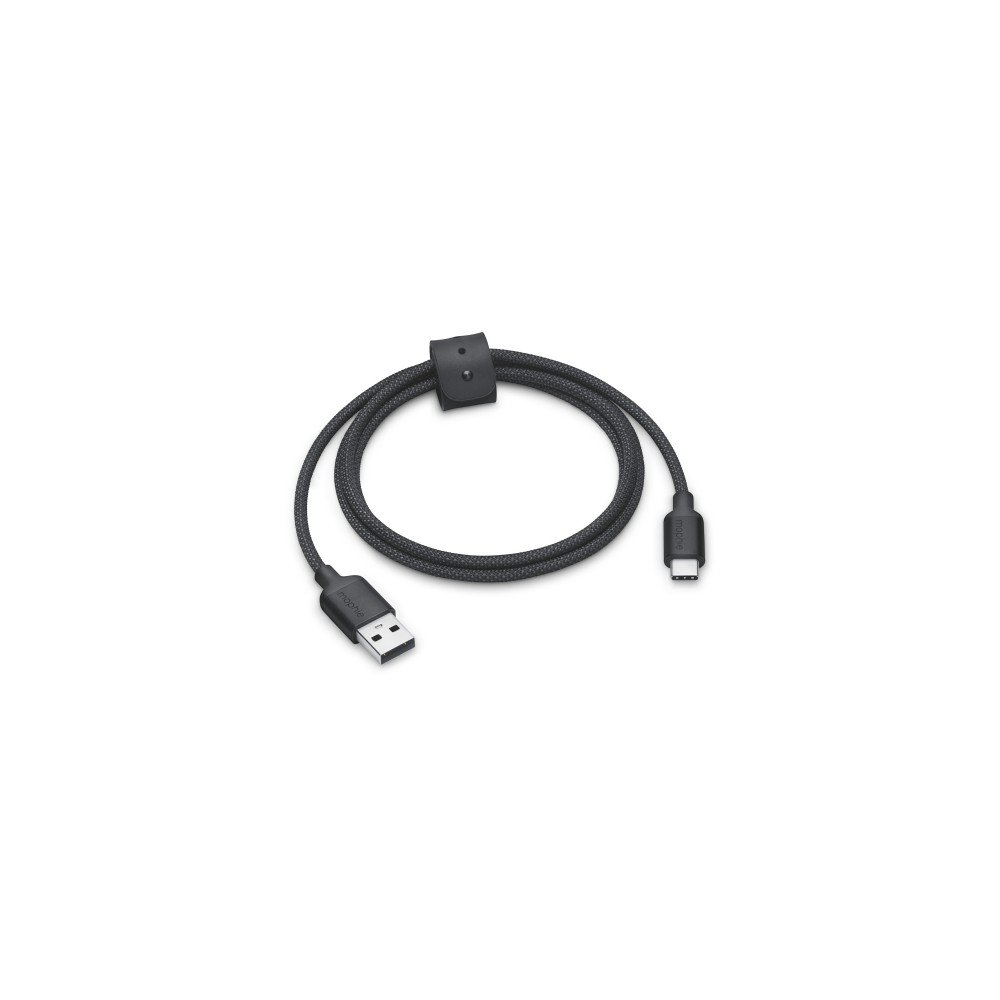

The Ubiquiti AFI-CABLE-USB-2M is a 2m USB Type-C cable designed for both power delivery and data transfer. It features a braided PP and PET jacket, an integrated power meter, and a double-sided charge display.
Power and Data
The cable supports up to 100W USB Power Delivery output. The 2m version supports data transfer rates up to 480 Mbps, making it suitable for compatible USB-C charging and data connections.
Charge Display
A double-sided charge display provides a visible indication during charging, while the integrated power meter allows charging power to be monitored through the cable.
Construction
The cable uses a durable PP and PET braided jacket with shielded twisted-pair construction. The 2m version uses stranded tinned copper conductors and has a 4.4mm jacket diameter.
Key Features
- 2m USB Type-C to USB Type-C cable
- Up to 100W USB Power Delivery output
- Up to 480 Mbps data transfer rate
- Double-sided charge display with integrated power meter
- Braided PP and PET jacket with shielded twisted-pair construction
Applications
The AFI-CABLE-USB-2M is suited to USB-C charging and data connections where a 2m cable, high-power USB Power Delivery, and visible charging information are required.
DC Supplies Product Note
The 2m AFI-CABLE-USB version supports both charging and data transfer. Ubiquiti specifies the 4.5m and 7m versions differently, with those longer variants intended for charging only, so the exact 2m MPN is important when data transfer is required.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | AFI-CABLE-USB-2M |
|---|
| Product Type | USB-C Power and Data Cable |
|---|
| Connector Type | USB Type-C |
|---|
| Connection | USB-C to USB-C |
|---|
| Cable Length | 2 m |
|---|
| Maximum Power Output | 100W PD |
|---|
| Maximum Data Rate | 480 Mbps |
|---|
| Display | Double-sided charge display |
|---|
| Power Meter | Integrated |
|---|
| Shielding | Shielded twisted pair (STP) |
|---|
| Conductor Type | Stranded tinned copper |
|---|
| Conductor Wire Gauge | (3) 24 AWG, (2) 30 AWG, (2) 32 AWG |
|---|
| Jacket Material | PP and PET braiding |
|---|
| Jacket Diameter | 4.4 mm |
|---|
| Minimum Bend Radius | 15 mm |
|---|
| Ambient Operating Temperature | -20 to 60°C |
|---|
| Ambient Operating Humidity | 10 to 90% non-condensing |
|---|
FAQs
What connectors does the AFI-CABLE-USB-2M have?
It uses USB Type-C connectors at both ends.
Does the AFI-CABLE-USB-2M support charging?
Yes. It supports up to 100W USB Power Delivery output.
Does the 2m version support data transfer?
Yes. Ubiquiti specifies a maximum data transfer rate of 480 Mbps for the 2m version.
What is the purpose of the display?
The cable has a double-sided charge display and integrated power meter for displaying charging information while in use.
What is the cable jacket made from?
The jacket uses PP and PET braiding for the 2m version.
