Overview

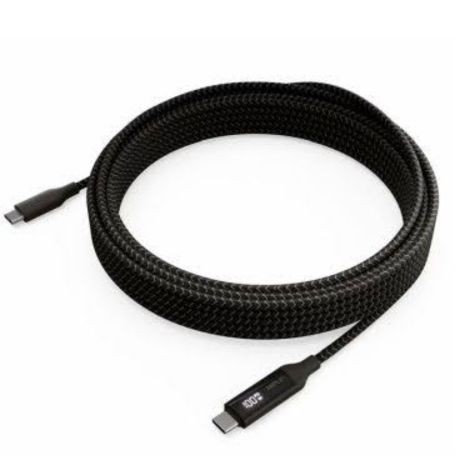

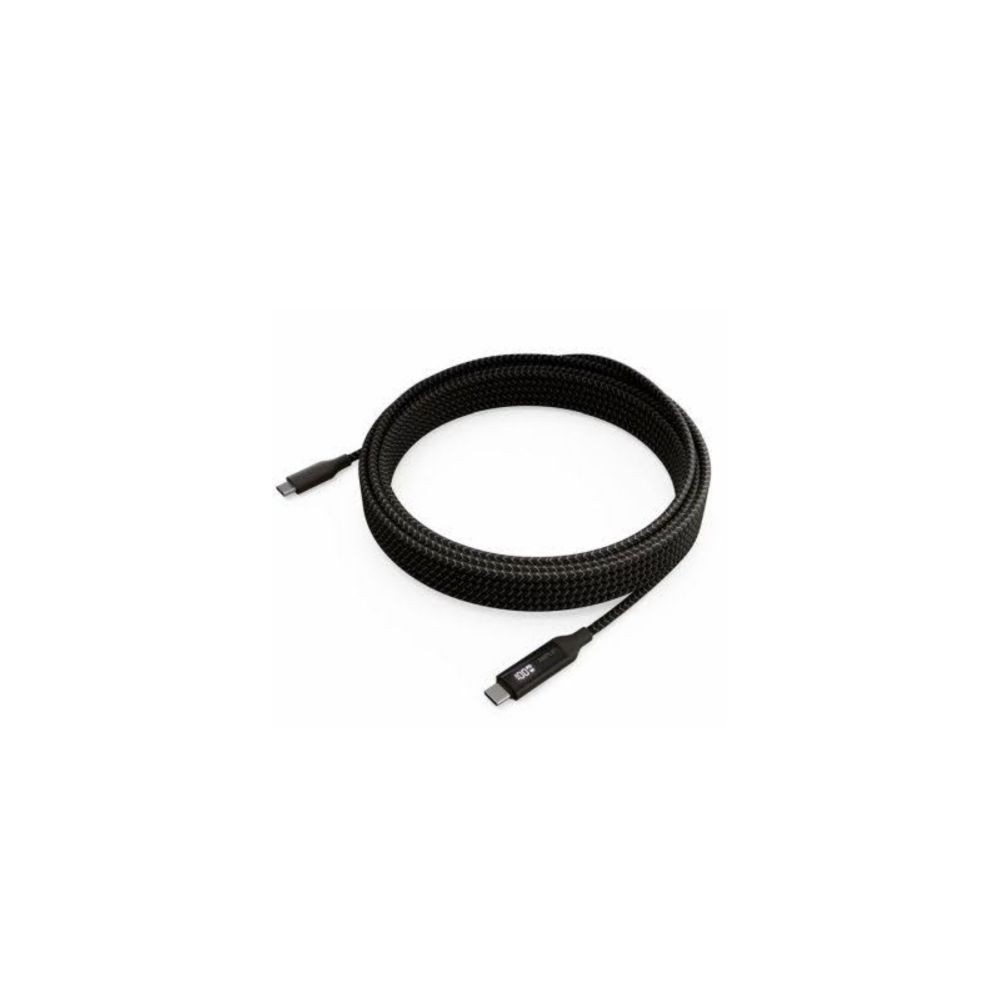

The Ubiquiti UACC-CABLE-USB-100W-2M-BK is a 2 m USB-C power and data cable with an integrated double-sided charge display. It supports USB Power Delivery charging with up to 100W delivered to the connected host device and supports data transfer up to 480 Mbps.
Charging and Data
The cable supports a maximum USB Power Delivery output of 100W for charging the connected host device. The integrated charge display provides power information from either viewing side of the cable. At the 2 m length, the cable also supports data transfer rates up to 480 Mbps.
Construction
The cable uses stranded tinned copper conductors and shielded twisted-pair (STP) construction. Its exterior uses a PP and PET braided jacket with a 4.4 mm diameter. The minimum bend radius for the 2 m version is 15 mm.
Key Features
- 2 m USB Type-C cable
- Up to 100W USB Power Delivery output to the connected host device
- Double-sided integrated charge display
- Up to 480 Mbps data transfer
- Durable PP and PET braided jacket
Applications
The UACC-CABLE-USB-100W-2M-BK is intended for USB-C charging and data connections where high-power USB PD charging, charge monitoring, and a 2 m cable length are required.
DC Supplies Product Note
The 100W specification describes the maximum Power Delivery output available through the cable to the connected host device; it should not be described as a 100W input rating. The 2 m version supports both charging and data transfer, with data rates up to 480 Mbps.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-USB-100W-2M-BK |
| Product Type | USB-C Cable with Charge Display |
| Cable Length | 2 m (6.6 ft) |
| Connector Type | USB Type-C |
| Power Delivery Output | Max. 100W PD to the connected host device |
| Maximum Data Rate | 480 Mbps |
| Display | Double-sided charge display |
| Shielding Type | Shielded twisted pair (STP) |
| Conductor Type | Stranded tinned copper |
| Conductor Wire Gauge | (3) 24 AWG, (2) 30 AWG, (2) 32 AWG |
| Jacket Material | PP & PET braiding |
| Jacket Diameter | 4.4 mm (0.17 in) |
| Minimum Bend Radius | 15 mm (0.6 in) |
| Jacket Color | Black |
| Ambient Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
FAQs
What is the maximum charging power?
The cable supports up to 100W USB Power Delivery output to the connected host device.
Does the 2 m version support data transfer?
Yes. The 2 m version supports data transfer rates up to 480 Mbps.
Does the cable have a charge display?
Yes. It has an integrated double-sided charge display for viewing charging power information from either side.
What type of connector does the cable use?
It uses USB Type-C connectors.
What is the cable construction?
The cable uses stranded tinned copper conductors, STP shielding, and a PP and PET braided jacket.
