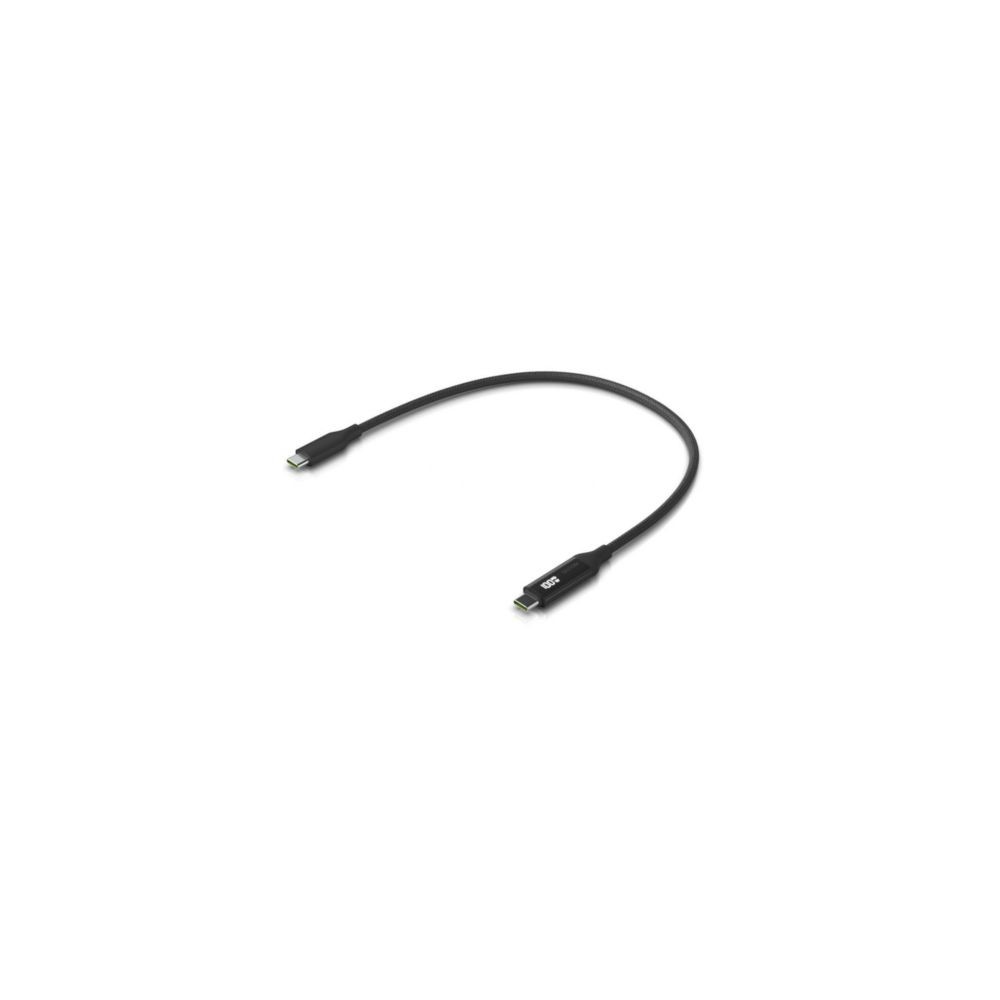

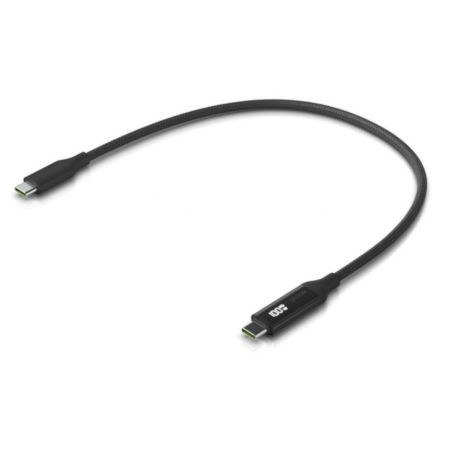

The Ubiquiti UACC-CABLE-USB-100W-0.3M-BK is a 0.3 m USB-C power and data cable with a built-in, double-sided charge display. It combines USB-C connectivity with an integrated power meter, braided PP and PET construction, and support for up to 100W USB Power Delivery output. Ubiquiti specifies a maximum data transfer rate of 480 Mbps for the 0.3 m length.
Charging and Power Monitoring
The cable supports up to 100W USB Power Delivery output to a compatible connected device. Its integrated power meter and double-sided display provide a visual indication of charging power during use.
Data Connectivity
The 0.3 m version supports data transfer at up to 480 Mbps. Both ends use USB Type-C connectors, making the cable suitable for compatible USB-C charging and data connections.
Construction
The cable uses shielded twisted-pair construction with stranded tinned copper conductors and a PP and PET braided jacket. The 0.3 m version has a 4.4 mm jacket diameter and a specified minimum bend radius of 15 mm.
Key Features
- 0.3 m USB Type-C to USB Type-C cable
- Up to 100W USB Power Delivery output
- Double-sided charge display with integrated power meter
- Up to 480 Mbps data transfer for the 0.3 m length
- Braided PP and PET jacket with shielded twisted-pair construction
Applications
The UACC-CABLE-USB-100W-0.3M-BK is suited to short USB-C charging and data connections where real-time power information is useful. Its 0.3 m length can help minimize cable slack in compact setups.
DC Supplies Product Note
The 100W specification is the cable's maximum USB Power Delivery output capability; it does not mean every connected power source or device will operate at 100W. Actual charging power is determined by the capabilities of the USB-C power source, cable, and connected device.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-USB-100W-0.3M-BK |
| Product Type | USB-C Power and Data Cable |
| Product Name | USB-C Cable with Charge Display |
| Cable Length | 0.3 m (1 ft) |
| Color | Black |
| Connector Type | USB Type-C |
| Power Output | Maximum 100W USB PD |
| Maximum Data Transfer Rate | 480 Mbps |
| Power Meter | Integrated |
| Charge Display | Double-sided |
| Shielding Type | Shielded twisted pair (STP) |
| Conductor Type | Stranded tinned copper |
| Conductor Wire Gauge | (3) 24 AWG, (2) 30 AWG, (2) 32 AWG |
| Jacket Material | PP and PET braiding |
| Jacket Diameter | 4.4 mm (0.17 in) |
| Minimum Bend Radius | 15 mm (0.6 in) |
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
| Ambient Operating Humidity | 10–90% non-condensing |
| NDAA Compliant | Yes |
Frequently Asked Questions
What is the length of the UACC-CABLE-USB-100W-0.3M-BK?
The cable is 0.3 m (1 ft) long.
Does this cable support 100W charging?
Yes. Ubiquiti specifies maximum 100W USB Power Delivery output to a compatible connected device.
Does the cable show charging power?
Yes. It includes an integrated power meter and a double-sided charge display.
What data speed does the 0.3 m version support?
Ubiquiti specifies a maximum data transfer rate of 480 Mbps for the 0.3 m length.
What connectors does the cable use?
It uses USB Type-C connectors for the cable connection.
What is the minimum bend radius?
The specified minimum bend radius for the 0.3 m version is 15 mm.
