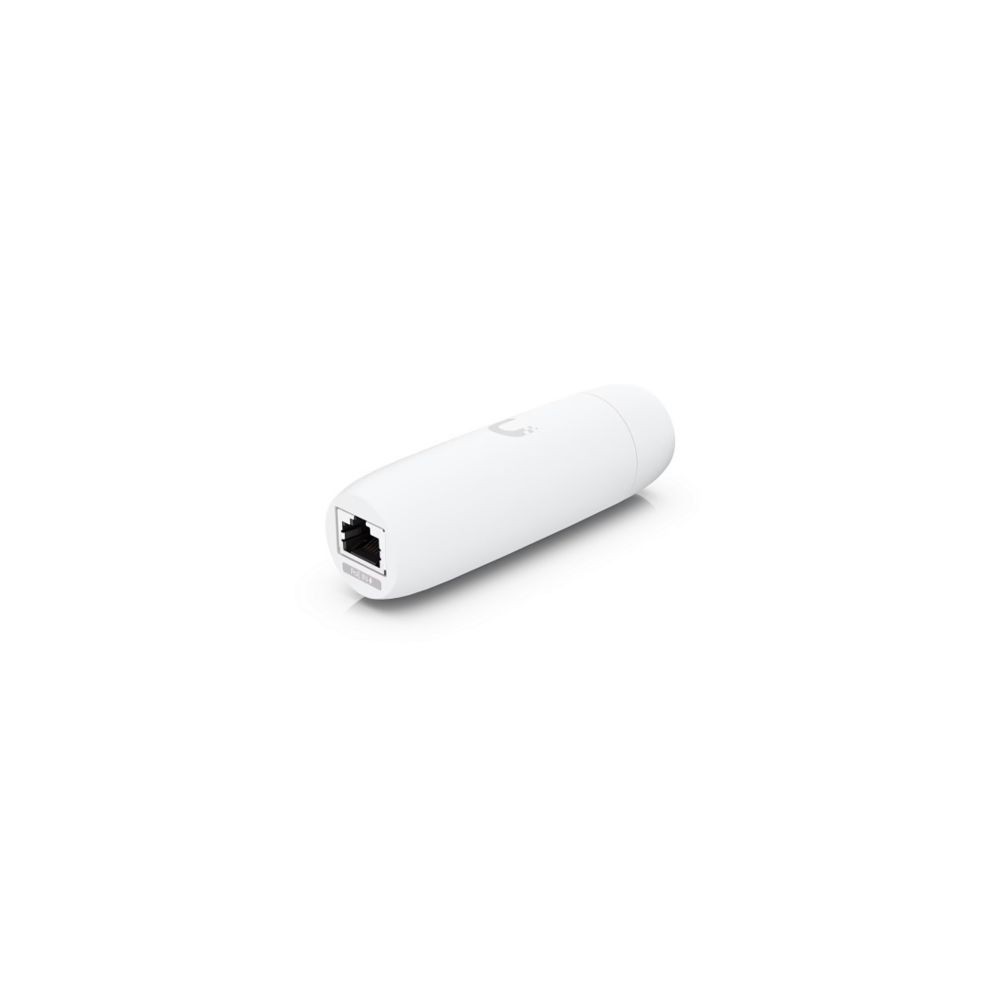

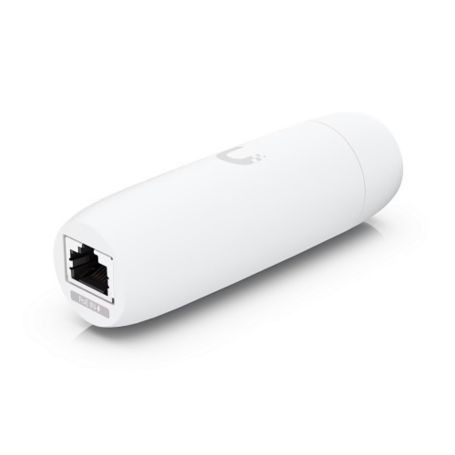

Ubiquiti UACC-ADAPTER-POE-USBC – PoE to USB-C Gigabit Ethernet Adapter
Overview
The Ubiquiti UACC-ADAPTER-POE-USBC is a PoE to USB Type-C adapter that provides power and Gigabit Ethernet connectivity to compatible USB-C devices. It is designed for selected UniFi Protect cameras and doorbells and can also provide Ethernet connectivity to compatible USB-C equipment.
The adapter accepts PoE through an RJ45 Gigabit Ethernet input and provides a USB Type-C output. When used with compatible G4 or G6 Instant cameras or the G4 Doorbell Pro, it enables the device to operate as a wired PoE network endpoint.
Technical Information
The adapter uses PoE as its power method, with a 48V DC, 0.25A input rating. Its USB Type-C output is rated at 5V DC and 2A. The RJ45 interface provides Gigabit Ethernet data connectivity.
ESD/EMP protection is specified at ±8kV for air discharge and ±4kV for contact discharge. The adapter uses a polycarbonate enclosure and measures 95mm in length with a 30.4mm diameter.
Compatibility
Ubiquiti specifies compatibility with the Camera G4 Instant (UVC-G4-INS), Camera G6 Instant (UVC-G6-INS), and G4 DoorBell Pro (UVC-G4-Doorbell-Pro).
The required PoE-to-USB-C camera cables for the G4 Doorbell Pro and G4/G6 Instant are sold separately. USB-C data performance with other compatible devices depends on the maximum data-transfer capability of the USB-C cable being used.
Key Features
- 1 × Gigabit Ethernet RJ45 PoE input
- 1 × USB Type-C output
- 48V DC, 0.25A PoE input rating
- 5V DC, 2A USB-C output rating
- Compatible with selected UniFi Protect G4 and G6 devices
Applications
The UACC-ADAPTER-POE-USBC can be used to convert compatible USB-C-powered UniFi cameras and doorbells to wired PoE connectivity. It is also suited to compatible USB-C devices that require both power and Gigabit Ethernet connectivity through a single adapter.
For supported Protect cameras, the adapter can simplify deployment where Ethernet cabling is available but the endpoint normally uses USB-C power and Wi-Fi connectivity.
DC Supplies Product Note
Check the exact endpoint model and cable requirement before deployment. The adapter does not replace the dedicated PoE-to-USB-C cables specified for compatible G4/G6 Instant cameras and the G4 Doorbell Pro; Ubiquiti lists those cables separately.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-ADAPTER-POE-USBC |
| Product Type | PoE to USB Type-C Adapter |
| Input Interface | 1 × RJ45 Gigabit Ethernet |
| Output Interface | 1 × USB Type-C |
| Networking Interface | 1 × GbE RJ45 port |
| Power Method | PoE |
| Input Rating | 48V DC, 0.25A |
| Output Rating | 5V DC, 2A |
| ESD/EMP Protection | ±8kV air; ±4kV contact |
| Enclosure Material | Polycarbonate |
| Dimensions | Ø30.4 × 95 mm |
| Weight | 85 g |
| Compatible Camera | G4 Instant (UVC-G4-INS) |
| Compatible Camera | G6 Instant (UVC-G6-INS) |
| Compatible Doorbell | G4 DoorBell Pro (UVC-G4-Doorbell-Pro) |
| Operating Temperature | -10 to 40°C |
| Operating Humidity | 5–95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
FAQs
What does the UACC-ADAPTER-POE-USBC do?
It provides PoE-powered Gigabit Ethernet connectivity and USB-C power for compatible USB-C devices.
Which UniFi devices are officially supported?
Ubiquiti specifies the G4 Instant, G6 Instant, and G4 DoorBell Pro as compatible devices.
What is the USB-C output rating?
The USB Type-C output is rated at 5V DC and 2A.
What is the Ethernet speed?
The adapter provides a Gigabit Ethernet RJ45 interface.
Are the camera cables included?
No camera-specific PoE-to-USB-C cables are assumed to be included. Ubiquiti lists the G4 Doorbell Pro and G4/G6 Instant cables separately.
What are the adapter dimensions?
The adapter measures approximately 30.4mm in diameter and 95mm in length and weighs 85g.
