Overview

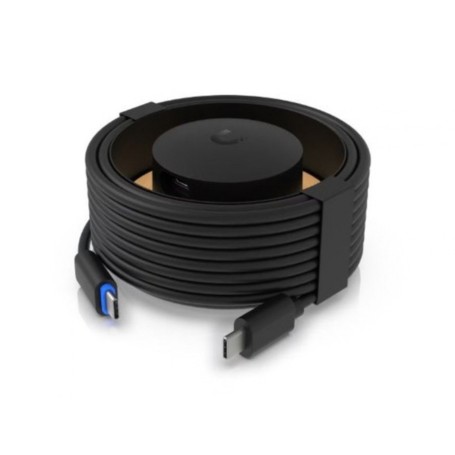

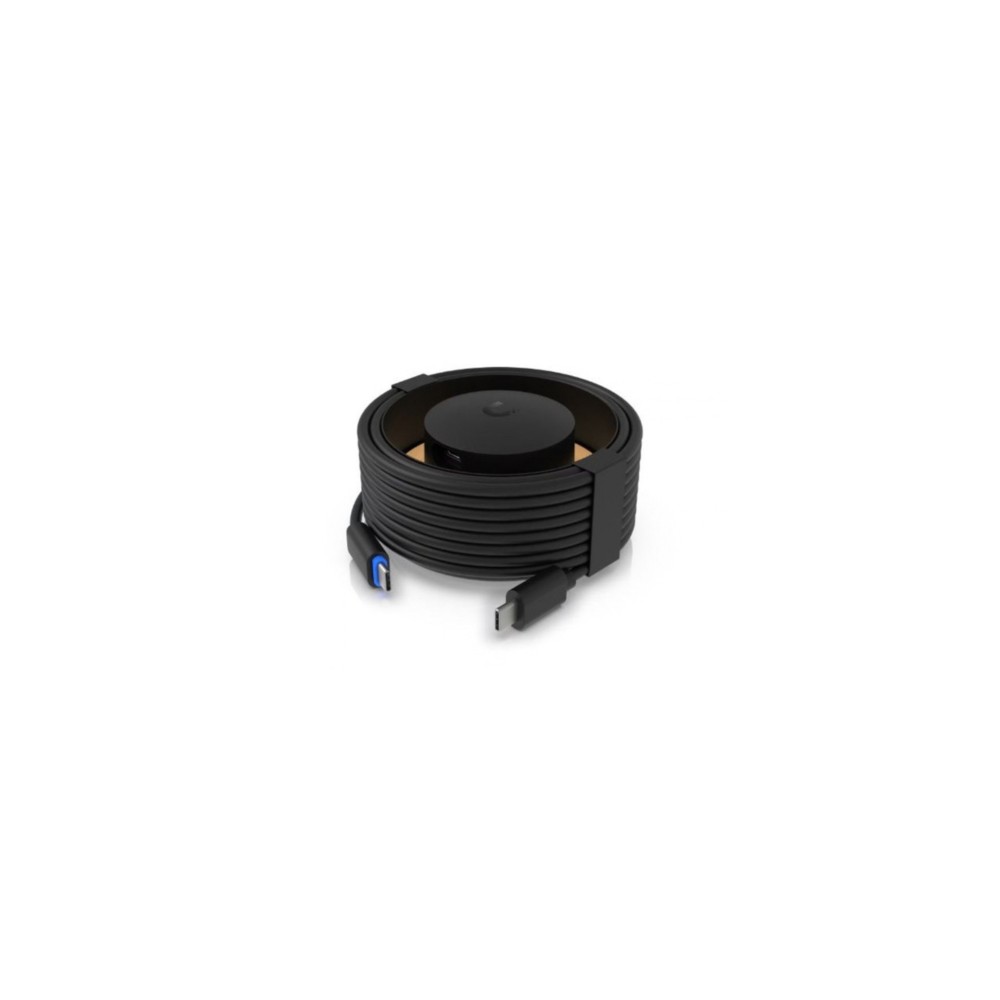

The Ubiquiti UACC-Adapter-DBAC is a 7m AC power adapter designed to connect the UniFi G4 Doorbell Pro to a standard AC electrical outlet. It accepts 100–240V AC input and provides 5V DC at 2A through a USB-C connector.
Power Connection
The adapter provides a direct AC-powered alternative for installations where the G4 Doorbell Pro is connected to a standard electrical outlet rather than existing doorbell wiring. The integrated 7m cable provides the connection between the adapter and the doorbell.
Cable Construction
The 7m cable uses a thermoplastic elastomer (TPE) jacket with a 4.8mm diameter. The cable terminates in a USB-C connector for connection to the compatible G4 Doorbell Pro.
Key Features
- Designed for the UniFi G4 Doorbell Pro
- 7m cable length
- 100–240V AC input at 50/60Hz
- 5V DC, 2A output
- USB-C cable connector
Applications
The UACC-Adapter-DBAC is intended for powering a G4 Doorbell Pro from a standard AC outlet when a dedicated AC power connection is preferred over existing doorbell wiring.
DC Supplies Product Note
The UACC-Adapter-DBAC is an AC-to-DC power adapter specifically associated with the G4 Doorbell Pro. It provides 5V DC at 2A through USB-C and should not be confused with the separate G4 Doorbell Pro PoE Adapter.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Adapter-DBAC |
|---|
| Product Type | G4 Doorbell Pro AC Adapter |
|---|
| Compatible Device | UniFi G4 Doorbell Pro |
|---|
| Cable Length | 7 m (23 ft) |
|---|
| Cable Connector Type | USB-C |
|---|
| Power Input | 100–240V AC, 50/60Hz, 0.3A |
|---|
| Power Output | 5V DC, 2A |
|---|
| Maximum Output Power | 10W |
|---|
| Cable Jacket Material | Thermoplastic Elastomer (TPE) |
|---|
| Cable Jacket Diameter | 4.8 mm |
|---|
| Jacket Enclosure Material | Polycarbonate |
|---|
| Jacket Enclosure Dimensions | Ø51.6 × 23 mm, without prong |
|---|
| Weight | 391 g (US version) |
|---|
| Operating Temperature | -10 to 40°C |
|---|
| Operating Humidity | 10 to 95% noncondensing |
|---|
| Certifications | CE, FCC, IC |
|---|
FAQs
What device is the UACC-Adapter-DBAC designed for?
It is designed to provide AC power to the UniFi G4 Doorbell Pro.
What output does the adapter provide?
The adapter provides 5V DC at 2A through its USB-C connector.
How long is the cable?
The integrated cable is 7m (23ft) long.
What AC input voltage does it support?
The adapter accepts 100–240V AC at 50/60Hz with a 0.3A input rating.
Does it use USB-C?
Yes. The cable connector type is USB-C for connection to the compatible G4 Doorbell Pro.
