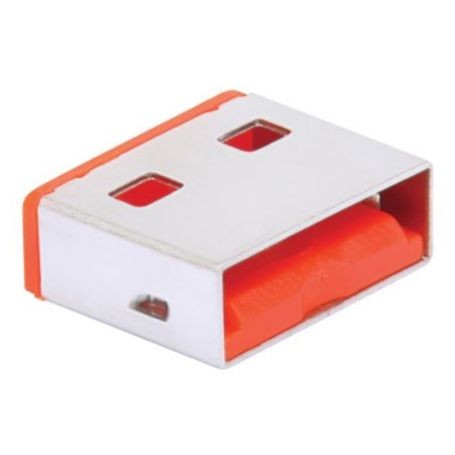

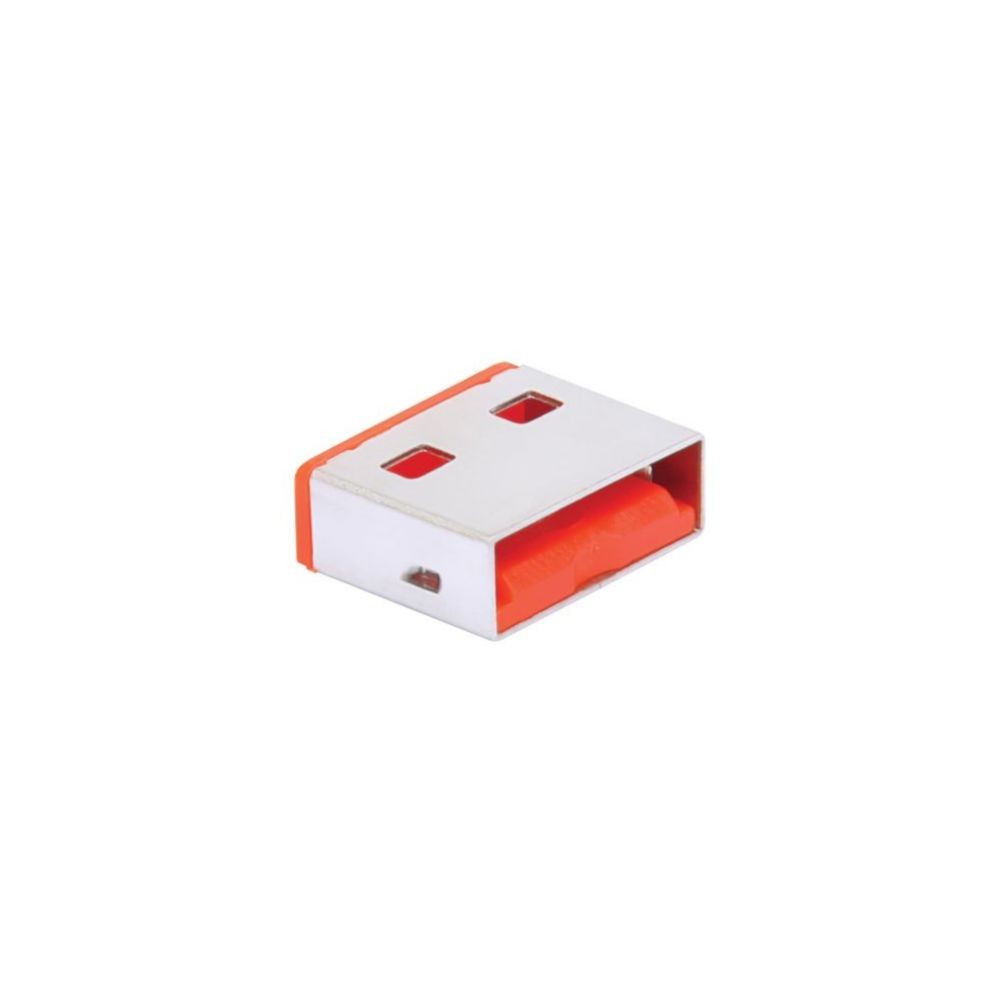

Eaton U2BLOCK-A10-RD Tripp Lite USB A Port Blockers Red 10 Pack
The Eaton U2BLOCK-A10-RD Tripp Lite USB-A port blocker kit includes 10 red blockers designed to prevent unwanted USB devices from being connected to compatible USB-A ports. The blockers can be used in USB-A ports on computers, hubs, and wall chargers to restrict physical access to the port.
USB-A Port Access Control
The U2BLOCK-A10-RD is designed to block an empty USB-A port so an unauthorized or unwanted USB peripheral cannot be inserted. This can help restrict connections from devices such as thumb drives and other USB peripherals.
The blockers are intended for use with the Eaton Tripp Lite U2BLOCK-A-KEY security key. The key is required to lock and unlock the blockers and is sold separately.
10-Pack for Multiple USB Ports
This model includes 10 red USB-A port blockers, allowing multiple compatible USB-A ports to be blocked using the same separately purchased U2BLOCK-A-KEY security key.
The blockers are compatible with USB-A ports found on computers, USB hubs, and wall chargers.
Security and Device Protection
Blocking an unused USB-A port can help prevent unauthorized physical connections and reduce the possibility of an unwanted peripheral being connected to a protected computer or USB device. The manufacturer specifically describes the blockers as a way to help prevent unwanted devices from connecting and potentially uploading malware or copying private data.
Key Features
- 10 red USB-A port blockers included
- Designed to block empty USB-A ports from unwanted device connections
- Compatible with USB-A ports on computers, hubs, and wall chargers
- Requires U2BLOCK-A-KEY for installation and removal
- Lifetime limited warranty
DC Supplies Product Note
The U2BLOCK-A10-RD is supplied as blockers only, so organizations can deploy multiple blockers while using one separately purchased U2BLOCK-A-KEY to manage installation and removal across compatible USB-A ports.
Applications
- Restricting access to unused USB-A ports on computers
- Controlling physical access to USB ports in shared work areas
- Blocking unused USB-A ports on hubs and wall chargers
- Reducing unauthorized connection of USB flash drives and peripherals
- Protecting equipment from unwanted physical USB connections
Technical Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | U2BLOCK-A10-RD |
| Product Type | USB-A Port Blocker |
| Accessory Class | USB Accessories |
| Quantity | 10 Port Blockers |
| Color | Red |
| Compatible Port | USB-A |
| Connector Type | USB-A Male |
| Connector Plating | Nickel |
| Contact Plating | Nickel |
| Materials | Metal, stainless steel, nickel, plastic |
| Product Length | 0.28 in (0.713 cm) |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Storage Temperature | -58°F to 221°F (-50°C to 105°C) |
| Operating Humidity | 0–95% RH, non-condensing |
| Storage Humidity | 0–95% RH, non-condensing |
| IP68 Rated | No |
| IP20 Rated | No |
| Certifications | IEC/EN 62040 |
| Compliance | RoHS, CE, REACH, TAA |
| Packaging | Polybag |
| Warranty | Lifetime limited |
| UPC | 037332253606 |
Installation and Removal
The U2BLOCK-A10-RD blockers are installed and removed using the U2BLOCK-A-KEY security key. The key engages the blocker so it can be inserted into or removed from a compatible USB-A port. The U2BLOCK-A-KEY is sold separately and is not included with the 10-pack.
Package Contents
- 10 × Red USB-A Port Blockers
- Quick Start Guide
Frequently Asked Questions
How many USB port blockers are included?
The U2BLOCK-A10-RD includes 10 red USB-A port blockers.
Is the security key included?
No. The U2BLOCK-A-KEY security key is sold separately and is required to lock and unlock the blockers.
What type of USB port does the U2BLOCK-A10-RD block?
The blockers are designed for USB-A ports on computers, hubs, and wall chargers.
What is the purpose of a USB-A port blocker?
A port blocker prevents a USB peripheral from being physically connected to an available USB-A port, helping restrict unwanted or unauthorized USB connections.
What color are the blockers?
The U2BLOCK-A10-RD blockers are red.
What warranty does Eaton provide?
The U2BLOCK-A10-RD has a lifetime limited warranty.
