Detailed Specifications

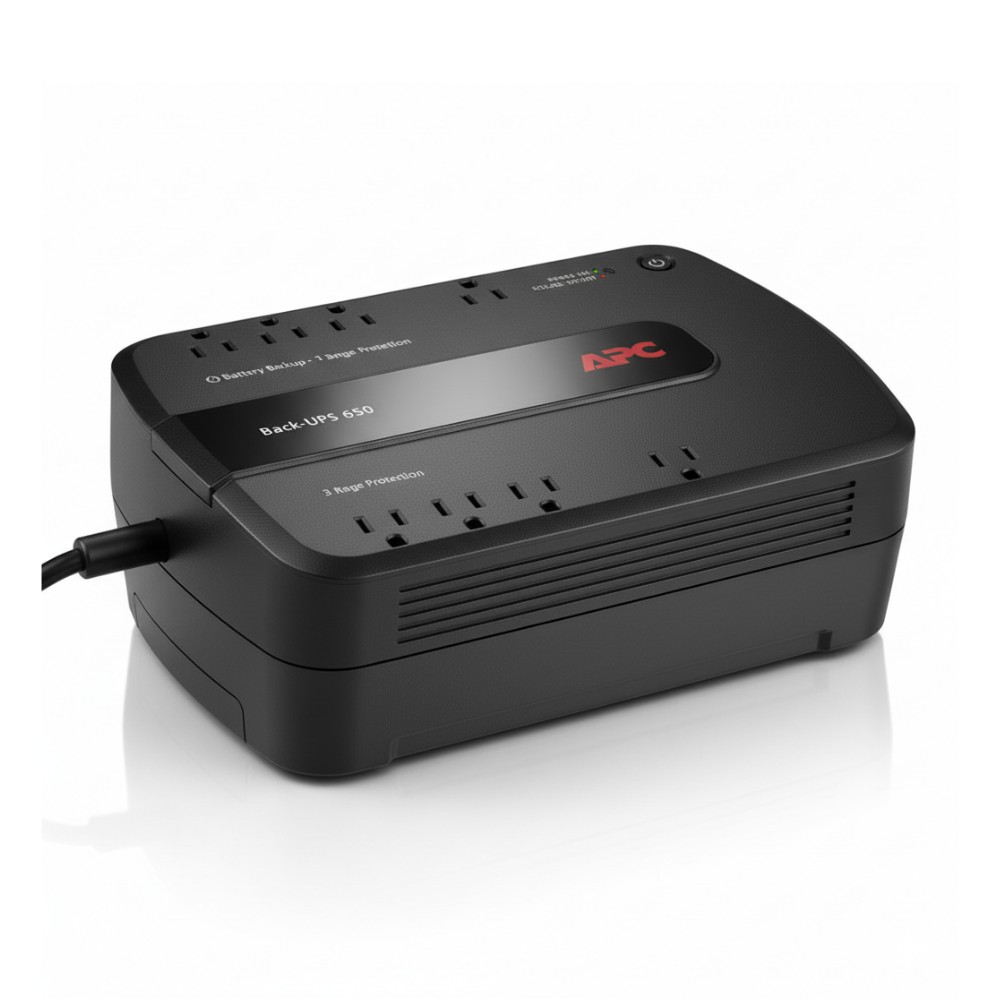

APC BE650G1 - 650 VA Back-UPS Standby UPS 120 V
Overview :
The APC BE650G1 is a standby uninterruptible power supply (UPS) providing 650 VA / 390 W backup power for desktop IT equipment in 120 V utility environments. It is deployed by home office and small-business teams to protect computers, networking devices, and peripherals from outages, sags, surges, and brownouts with surge filtering and battery support.
This UPS uses sealed lead-acid (VRLA) battery technology configured for internal backup power and is user-replaceable using the specified RBC17 battery cartridge. The pack automatically charges whenever connected to utility power and supports hot-swappable replacement without tools.
Electrical topology is standby (offline) with automatic transfer to battery when utility power fails; output is a stepped approximated sine wave suitable for general computing and network loads.
The unit includes integrated surge protection and EMI/RFI filtering to mitigate transient events and line noise, helping reduce the risk of damage to connected electronics.
BE650G1 is packaged in a compact tower form factor with multiple outlets for battery and surge protection plus surge-only protection. It is not intended for large data center or rackmount installations but is suitable for desktop, workstation, and small-office setups.
Key Features
• 650 VA / 390 W standby UPS for 120 V AC environments
• 8 NEMA outlets (4 battery+surge, 4 surge-only)
• Standby topology with simulated sine-wave output
• Hot-swappable sealed lead-acid battery (RBC17)
• 340 J surge protection with data-line RJ45 protection
Technical Specifications
| Specification | Value |
|---|
| Brand | APC by Schneider Electric |
| Part Number | BE650G1 |
| Product Type | Standby UPS |
| Power Capacity | 650 VA / 390 W |
| Topology | Standby (offline) |
| Nominal Input Voltage | 120 V AC |
| Input Frequency | 60 Hz ± 3 Hz |
| Input Current | 12 A |
| Output Voltage | 120 V AC |
| Output Waveform | Simulated / stepped approximated sine wave |
| Outlet Configuration | 8 × NEMA 5-15R (4 battery + surge, 4 surge-only) |
| Surge Energy Rating | 340 J |
| Data Line Protection | RJ-45 |
| Communication Port | USB via USB-B |
| Battery Type | Sealed maintenance-free lead-acid (VRLA) |
| Replacement Battery | RBC17 |
| Full-Load Runtime | ~3.1-3.3 min |
| Half-Load Runtime | ~12 min |
| Battery Recharge Time | ~24 h |
| Form Factor | Tower |
| Dimensions (H×W×D) | ~88 × 180 × 302 mm |
| Net Weight | ~6.2 kg |
| Operating Temp. Range | 0 - 40 °C |
| Operating Humidity | 0 - 95 % non-condensing |
| Certifications | UL 1778, REACH, RoHS |
| Warranty | Typically 3 years (region dependent) |
