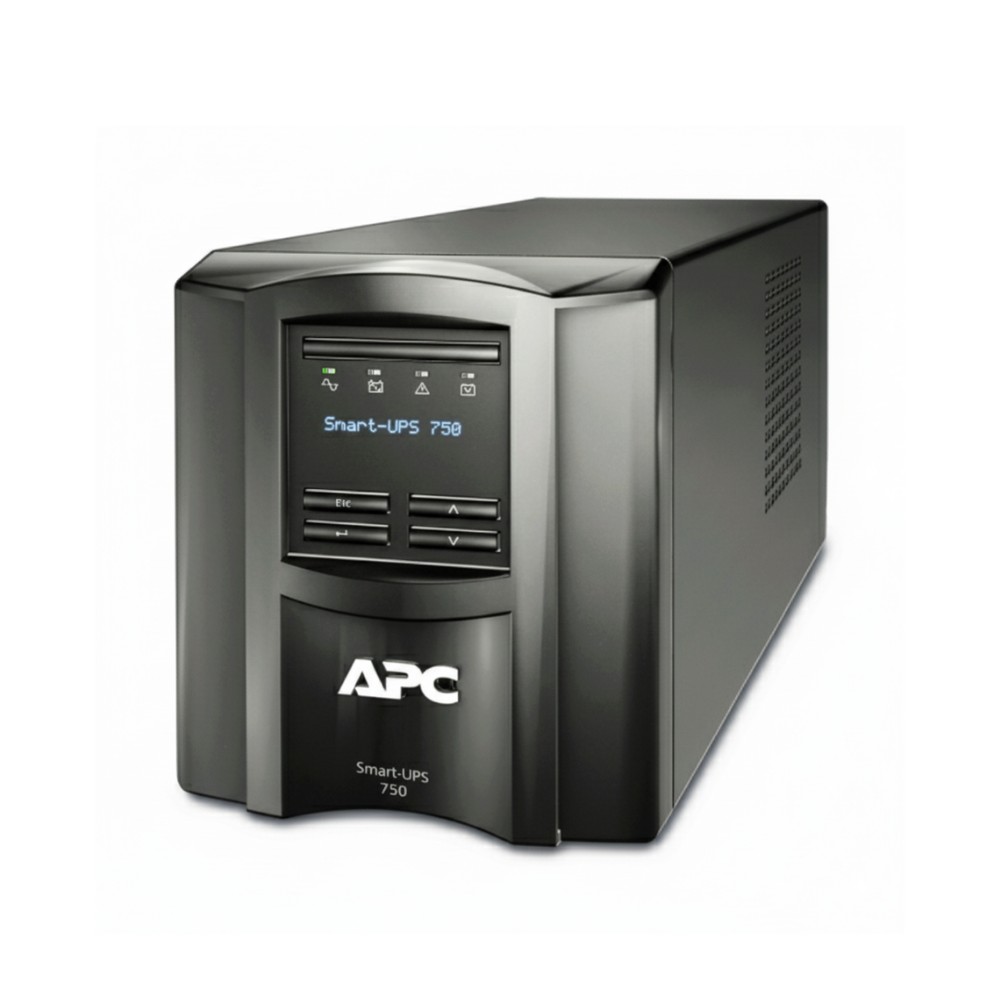

APC SMT750I - Smart-UPS 750 VA Line-Interactive UPS 230 V
Overview :
The APC SMT750I is a line-interactive uninterruptible power supply (UPS) designed to deliver 750 VA / 500 W backup power and voltage regulation for critical IT loads in 230 V environments. It is deployed by infrastructure teams in small offices, home offices, and network closets to protect servers, switches, storage, and workstations from outages, sags, surges, and brownouts.
This UPS uses line-interactive topology with Automatic Voltage Regulation (AVR) to correct input voltage fluctuations without drawing significantly on the battery, preserving battery life while maintaining stable output. The unit delivers pure sine wave output on battery, making it suitable for equipment with active power factor correction (PFC).
The SMT750I integrates a multifunction LCD interface that shows real-time status, load, input/output conditions, and configuration parameters, and includes USB and SmartSlot communication ports for monitoring and control via APC software or optional network management cards.
The built-in sealed lead-acid (VRLA) battery provides runtime sufficient for orderly shutdowns and short outages; typical recharge time is approximately 3 hours. This UPS uses a user-replaceable battery cartridge (RBC48), enabling maintenance without specialized tools.
Compact and tower-oriented, the SMT750I supports small IT loads where reliable power continuity and regulated output are required. Avoid deploying it in environments that require external battery extension packs or rackmount configurations
Key Features :
• Line-interactive UPS with 750 VA / 500 W capacity
• Pure sine wave output on battery support
• Automatic Voltage Regulation (AVR) stabilizes input voltage
• Multifunction LCD for load and battery status
• USB and SmartSlot monitoring interfaces
Specifications :
| Specification | Value |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SMT750I |
| Product Type | Line-Interactive UPS |
| Power Capacity | 750 VA / 500 W |
| Topology | Line‐Interactive |
| Input Voltage (Nominal) | 230 V AC |
| Input Voltage Range | 151 - 302 V AC (adjustable), 160 - 280 V AC typical |
| Input Frequency | 50/60 Hz ± 3 Hz (auto sensing) |
| Output Voltage (Nominal) | 230 V AC |
| Waveform Type | Pure sine wave output on battery |
| Transfer Time | ~4 ms typical, ≤8 ms max |
| Output Connections | 6 × IEC 320 C13 (battery-backed) + 2 × IEC jumpers |
| Input Connection | 1 × IEC 320 C14 |
| Battery Type | Maintenance-free sealed lead-acid (VRLA); user-replaceable RBC48 |
| Battery Recharge Time | ~3 hours |
| Runtime (Full Load) | ~5 minutes |
| Runtime (Half Load) | ~15-16 minutes |
| Surge Energy Rating | ~540 J |
| Communication Ports | USB, SmartSlot |
| Form Factor | Tower |
| Dimensions (H×W×D) | ~157 × 138 × 358 mm |
| Net Weight | ~13.2 kg (29 lb) |
| Operating Temp. Range | 0 - 40 °C |
| Operating Humidity | 0 - 95 % non-condensing |
| Certifications | RoHS, REACH |
