Overview

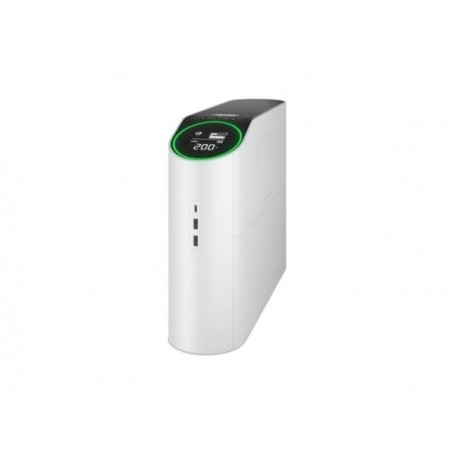

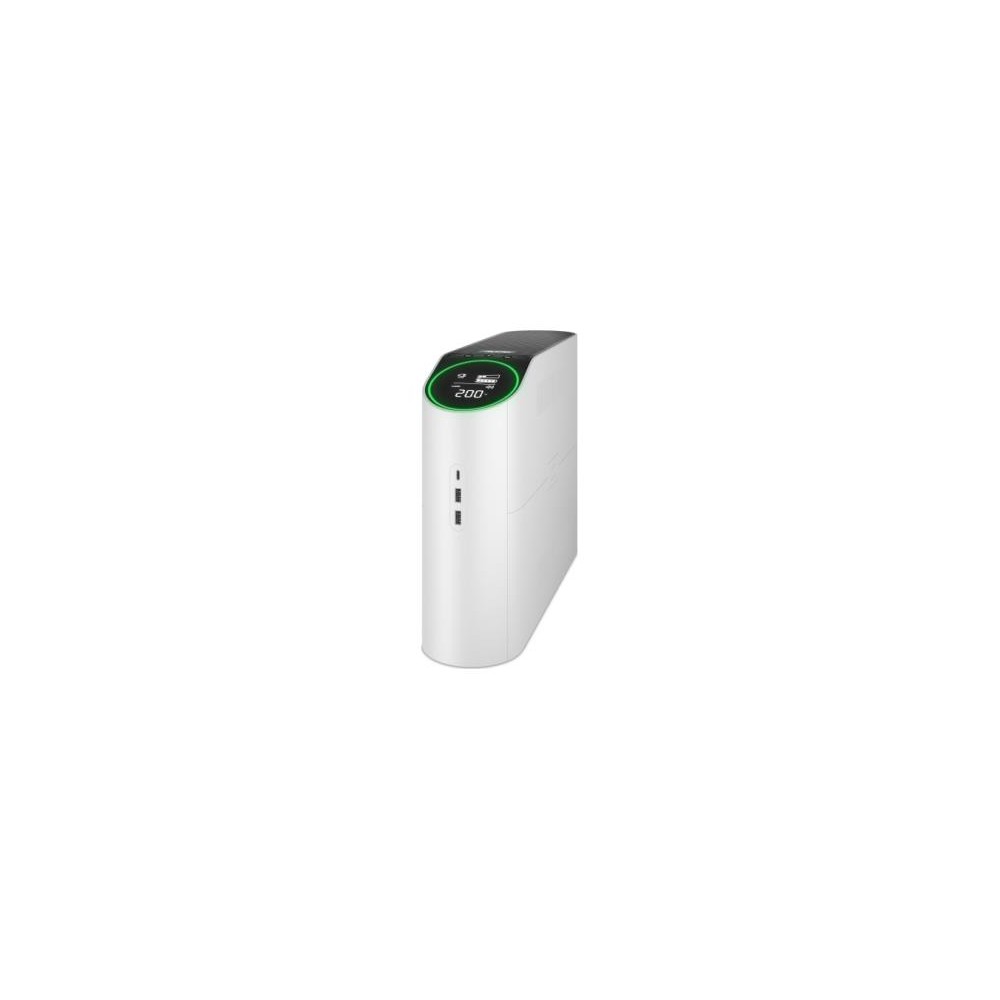

The APC BGM1500-US Back-UPS Pro Gaming is a 1500VA/900W uninterruptible power supply designed to provide battery backup and surge protection for gaming PCs, consoles, monitors, and other sensitive electronics. It features pure sine wave output, automatic voltage regulation, customizable RGB lighting, and a display for monitoring power and runtime information. Its Arctic White tower design fits modern gaming and home office setups.
Key Features
- 1500VA / 900W power capacity
- Pure sine wave output for compatible sensitive electronics
- 10 NEMA 5-15R outlets: 6 battery backup and surge-protected, plus 4 surge-protected only
- Automatic Voltage Regulation (AVR) helps correct voltage fluctuations
- Customizable RGB lighting
- Angled display for viewing UPS status and power information
- Two USB-A ports and one USB-C charging port
- 1080-joule surge protection
- Lead-acid battery with replaceable battery cartridge APCRBC163
- Arctic White tower design
Technical Specifications
| Brand | APC |
| Part Number / MPN | BGM1500-US |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Series | Back-UPS Pro Gaming |
| Power Capacity | 1500VA / 900W |
| UPS Topology | Line-interactive |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Input Frequency | 60Hz |
| Output Waveform | Pure sine wave |
| Output Outlets | 10 × NEMA 5-15R |
| Battery Backup Outlets | 6 |
| Surge-Only Outlets | 4 |
| Surge Protection Rating | 1080 joules |
| Battery Type | Lead-acid |
| Replacement Battery | APCRBC163 |
| USB Ports | 2 × USB-A, 1 × USB-C |
| Recharge Time | Approximately 16 hours |
| Dimensions (H × W × D) | 11.4 × 4.2 × 16.0 inches |
| Net Weight | 25.5 lb (11.6 kg) |
| Color | Arctic White |
| Form Factor | Tower |
Applications
- Gaming desktop PCs and gaming monitors
- Gaming consoles and home entertainment systems
- Home office computers and peripherals
- Networking equipment and other compatible electronics
- Protection against power interruptions and voltage fluctuations
Compatibility and Installation
This UPS is designed for 120V AC power systems and uses a NEMA 5-15P input plug. Confirm that your equipment and local electrical supply are compatible before installation. In regions using 220–240V mains, an appropriate power arrangement is required; do not connect this 120V model directly to a 230V outlet. Check the connected load to ensure it remains within the 900W maximum capacity.
Frequently Asked Questions
What is the power capacity of the APC BGM1500-US?
It is rated for 1500VA and 900W.
How many outlets does it have?
It has 10 NEMA 5-15R outlets: six provide battery backup and surge protection, while four provide surge protection only.
Does this UPS provide pure sine wave output?
Yes, the specified output waveform is pure sine wave.
Can the battery be replaced?
Yes, the specified replacement battery cartridge is APC APCRBC163.
Does it include USB charging ports?
Yes, it includes two USB-A ports and one USB-C port.
Can it be connected directly to a 230V outlet?
No. This model is designed for 120V AC input. Verify the local power supply and use a suitable, properly rated power solution.
