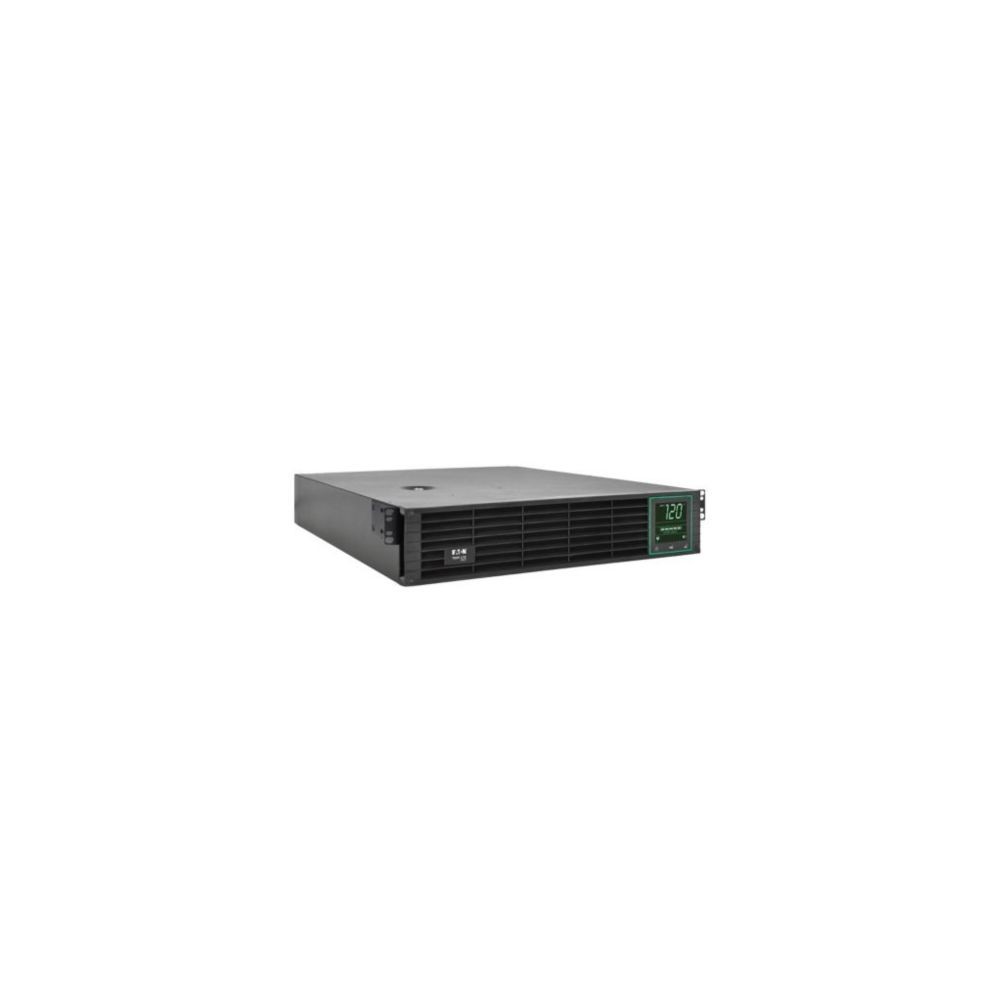

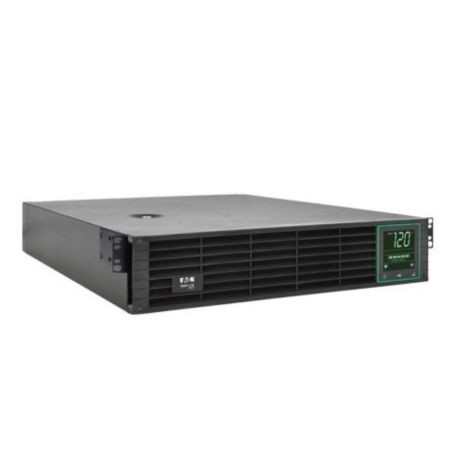

Eaton Tripp Lite SMART2200RM2UL SmartPro UPS
The Eaton Tripp Lite SMART2200RM2UL is a SmartPro 120V line-interactive UPS rated at 2.2kVA and 1.92kW. It combines regulated sine-wave output with lithium iron phosphate (LiFePO4) battery technology in a 2U rackmount chassis.
Power Protection
The UPS provides regulated 120V output and automatic voltage regulation (AVR) for correcting low- and high-voltage conditions without unnecessarily switching to battery power. Its line-interactive topology also provides protection against power interruptions, surges, and EMI/RFI line noise.
Battery Technology and Runtime
The SMART2200RM2UL uses an internal LiFePO4 battery system. Eaton specifies approximately 5.1 minutes of runtime at the full 1920W load and 11.7 minutes at half load. The lithium iron phosphate battery is designed for longer service life, more charge/discharge cycles, and faster recharge than conventional lead-acid battery technology.
Key Features
- 2200VA / 1920W line-interactive UPS capacity
- LiFePO4 lithium-ion battery technology
- Pure sine-wave output with automatic voltage regulation
- 2U rackmount form factor with LCD interface
- Eight protected outlets with two switchable load banks
Connectivity and Management
The UPS includes USB and DB9 communication ports for monitoring and unattended shutdown functions. It also has an EPO port for emergency power-off applications and supports compatible network management cards. Eaton identifies the WEBCARDLX as required for the Auto Probe feature.
Applications
The SMART2200RM2UL is intended for equipment such as servers, network storage devices, telecom hardware, high-end workstations, and other IT systems requiring regulated sine-wave power and battery backup. Its 2U rackmount configuration is suited to standard rack-based installations.
DC Supplies Product Note
The SMART2200RM2UL should not be confused with similarly named SMART2200RM2U or network-card variants. This exact model uses LiFePO4 batteries and provides USB and DB9 communications, while compatible network management cards are available separately.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | SMART2200RM2UL |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Series | SmartPro |
| Topology | Line Interactive |
| Rated Power | 2200VA / 1920W |
| Nominal Input Voltage | 120 VAC |
| Nominal Output Voltage | 110V / 115V / 120V |
| Input Connection | NEMA 5-20P |
| Output Receptacles | 4 x NEMA 5-15R; 4 x NEMA 5-15/20R |
| Load Management | Two switchable single-outlet load banks |
| Battery Type | LiFePO4 Lithium-Ion |
| Waveform | Sine Wave |
| Full-Load Runtime | 5.1 minutes at 1920W |
| Half-Load Runtime | 11.7 minutes |
| Surge Suppression | 570 joules |
| Line-Mode Efficiency | 97% |
| Communications | USB, DB9 |
| Emergency Power Off | EPO port |
| Form Factor | Rackmount / Wall-mount / Tower |
| Rack Height | 2U |
| Dimensions | 19.27 x 17.3 x 3.43 in |
| Weight | 41.78 lb |
| Warranty | 5-year limited |
FAQs
What is the Eaton Tripp Lite SMART2200RM2UL?
It is a SmartPro 2200VA/1920W line-interactive UPS with LiFePO4 batteries and a 2U rackmount form factor.
What type of battery does it use?
The SMART2200RM2UL uses a lithium iron phosphate (LiFePO4) battery system.
How many outlets does the UPS have?
It has eight output receptacles: four NEMA 5-15R outlets and four NEMA 5-15/20R outlets.
What is the runtime at full load?
Eaton specifies approximately 5.1 minutes at the full 1920W load.
Does it support network management?
Yes. The UPS is compatible with network management cards. Eaton specifies the WEBCARDLX for the Auto Probe feature, with the required firmware noted by Eaton.
How much rack space does it occupy?
The UPS occupies 2U of rack space.
