Overview

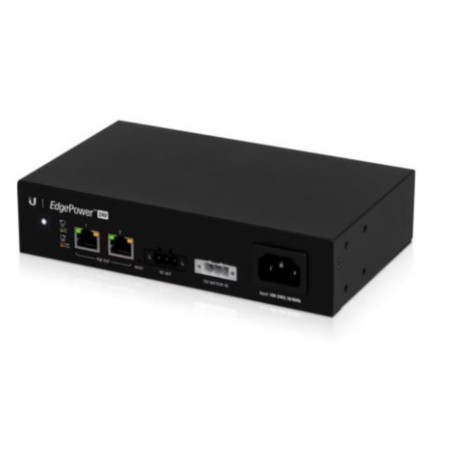

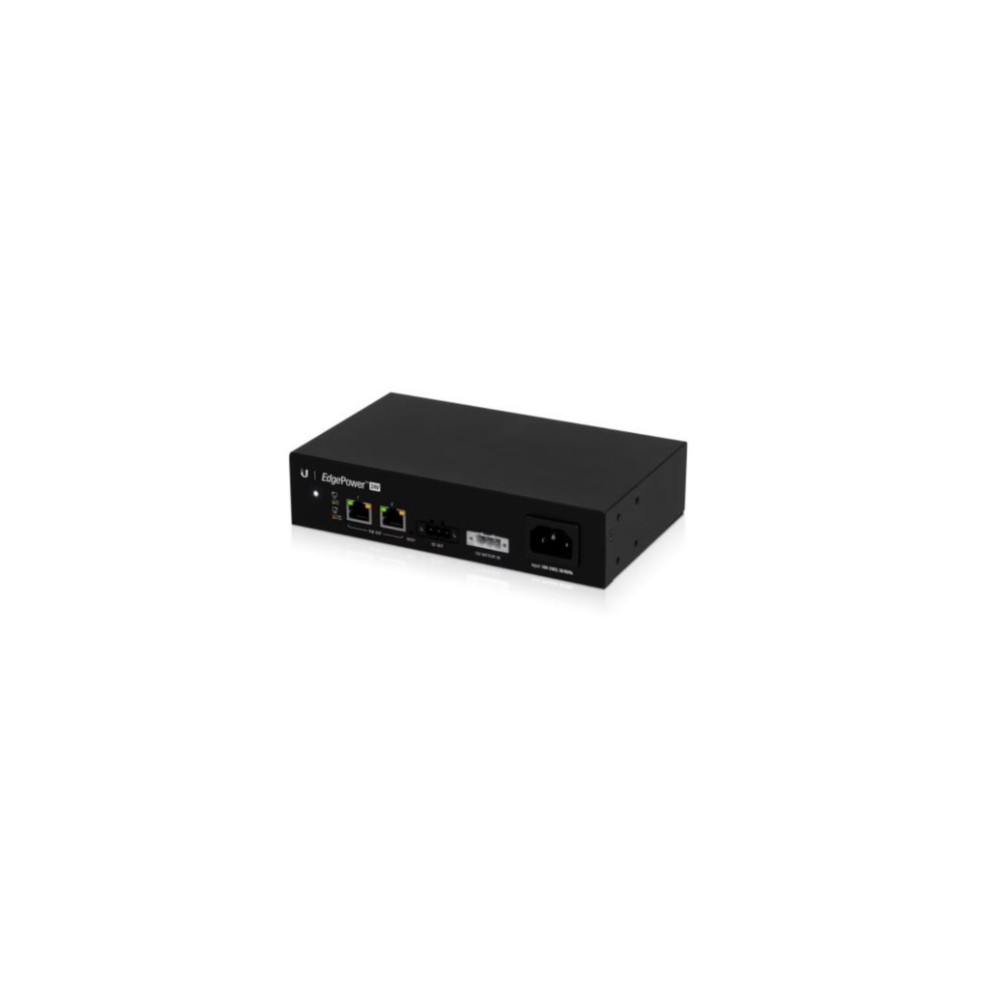

The Ubiquiti EP-24V-72W is an EdgePower 24V DC power supply with UPS functionality, dual 24V passive PoE outputs, and Ethernet management. It accepts universal 100–240V AC input and provides a 24V, 3A DC output.
Power and UPS Operation
The EdgePower provides up to 72W of output power from its AC/DC power supply. A DC terminal block accepts an optional 12V lead-acid battery for backup operation. When AC power is interrupted, the connected battery can provide continuous power through the EdgePower.
Only one power source is used at a time. When both AC and battery inputs are connected, the AC input is used and the battery serves as the backup source.
Ethernet and Passive PoE
Two 10/100 Mbps RJ45 ports provide Ethernet connectivity and can be configured for 24V passive PoE output. The PoE outputs use pins 4 and 5 positive and pins 7 and 8 negative. Passive PoE is disabled by default and can be enabled through the EdgePower configuration interface.
Management
The EP-24V-72W provides in-band Ethernet management for monitoring status and power consumption and configuring network and 24V passive PoE settings. It can also be managed through UISP for remote configuration, monitoring, firmware upgrades, and backups.
Key Features
- 24V DC output rated at 3A
- 72W maximum output power
- Two 10/100 Mbps RJ45 ports with configurable 24V passive PoE
- 12V lead-acid battery input for backup power
- Ethernet in-band and UISP management
Applications
The EP-24V-72W is designed for network sites that require 24V DC power, passive PoE connectivity, and battery-backed operation. Its combination of Ethernet management and optional 12V lead-acid battery backup suits small network and WISP installations.
DC Supplies Product Note
The external backup battery is not included with the EP-24V-72W. Ubiquiti specifies a 12V lead-acid battery for the battery input; another battery type should not be used.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | EP-24V-72W |
|---|
| Product Type | 24V DC UPS Power Supply with Passive PoE |
|---|
| Product Family | EdgePower |
|---|
| AC Input | 100–240V AC, 50–60Hz |
|---|
| Power Supply | AC/DC 72W |
|---|
| DC Output | 24V, 3A |
|---|
| Maximum Output Power | 72W |
|---|
| Battery Input | 12V DC Lead-Acid Battery |
|---|
| Networking Interfaces | 2 × 10/100 Mbps RJ45 |
|---|
| Management Interface | Ethernet In-Band |
|---|
| PoE Output | 2 × 24V DC Passive PoE |
|---|
| PoE Pinout | Pins 4, 5 positive; pins 7, 8 negative |
|---|
| Dimensions | 192 × 43.7 × 115 mm |
|---|
| Weight | 650 g |
|---|
| System Power Consumption | 2W |
|---|
| Operating Temperature | 0 to 40°C |
|---|
| Operating Humidity | 10 to 90% noncondensing |
|---|
| ESD/EMP Protection | Air ±12kV; Contact ±12kV |
|---|
| Certifications | CE, FCC, IC |
|---|
FAQs
What is the DC output of the EP-24V-72W?
The EdgePower provides a 24V DC output rated at 3A, with a maximum output power of 72W.
Does the EP-24V-72W support battery backup?
Yes. It has a battery input for an optional 12V lead-acid battery, which can provide backup power when AC power is interrupted.
Does it provide passive PoE?
Yes. Both RJ45 ports can provide 24V passive PoE when enabled through the EdgePower configuration interface.
Is the backup battery included?
No. The 12V lead-acid backup battery is optional and is not included with the EP-24V-72W.
Can the EP-24V-72W be managed remotely?
Yes. The device supports Ethernet in-band management and can be managed through UISP.
