Detailed Specifications

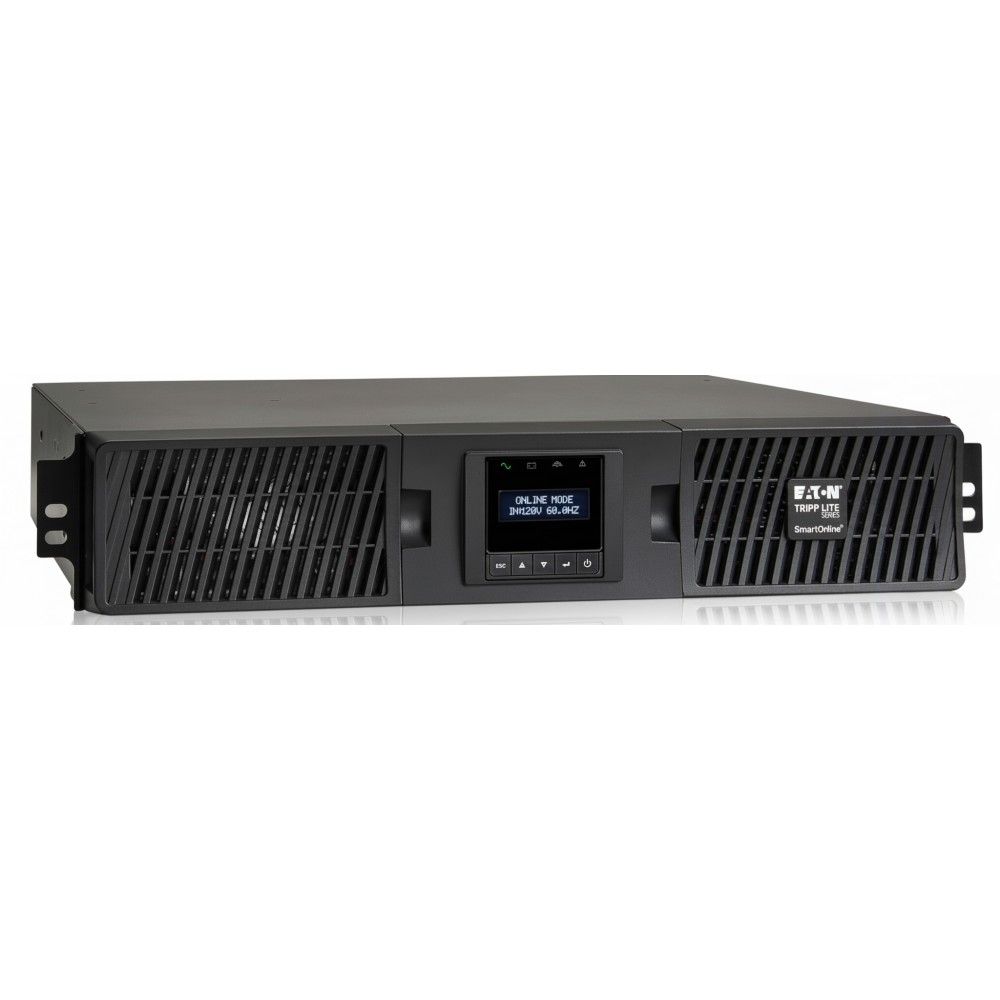

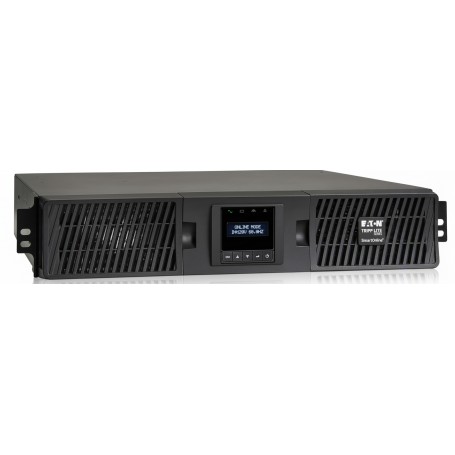

Eaton SU3000RTXLCD2UN - 3 kVA Rack/Tower Online UPS
Overview
The Eaton SU3000RTXLCD2UN is a 3 kVA (2700 W) double-conversion (online) UPS designed for IT infrastructure requiring uninterrupted AC power with zero transfer time. It is deployed by data center engineers, IT operations, and telecom teams to support critical network, server, and storage loads, eliminating brownouts, blackouts, and line noise from utility power. This configuration suits 120 V environments where true sine wave output and continuous, clean power are mandatory.
Built with an internal VRLA (Valve Regulated Lead Acid) battery and hot-swappable design, the SU3000RTXLCD2UN maintains conditioned AC output during outages and supports extended run capability via external battery modules (EBMs). Runtime varies by load, delivering operational windows that allow safe system shutdowns or generator transfer.
The UPS fits in standard 19-inch racks or on a floor as a tower using included mounting hardware, occupying 2 rack units (2U). Its outlet configuration combines multiple 5-20R receptacles with a single L5-30R feed for flexible distribution to connected equipment.
Communications and management are provided through an onboard LCD and embedded network management capability via the included WEBCARDLXE card, along with USB and serial interfaces for local or remote monitoring and automated orderly shutdown via connected hosts.
A common deployment is in core wiring closets or small data centers supporting key SAN controllers, virtualized hosts, and edge routing appliances where utility irregularities must be mitigated. This unit should not be used for 208/230 V systems without a step-down transformer or where load capacity exceeds 2700 W continuous, as sustained overload will reduce runtime and may trigger shutdown.
Key Features
- 3000 VA / 2700 W online double-conversion topology, 120 V input
- 2U rack/tower form factor with rack mounting kit included
- Seven output receptacles (6 × 5-20R, 1 × L5-30R)
- Hot-swappable VRLA battery with EBM support (up to 4)
- LCD status and integrated network management via WEBCARDLXE
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SU3000RTXLCD2UN |
| Product Type | Online UPS (Double-conversion) |
| Output capacity | 3000 VA / 2700 W |
| Topology | Online / Double-conversion |
| Output waveform | True sine wave |
| Output power factor | 0.9 |
| Nominal output voltage | 120 V |
| Number of outputs | 6 × 5-20R + 1 × L5-30R |
| Input connection | L5-30P |
| Input nominal voltage | 100/110/120 VAC |
| Input cord length | 8 ft |
| Battery type | VRLA (Valve Regulated Lead Acid) |
| Battery replacement | Hot-swappable (EBP-1617) |
| Extended battery support | Up to 4 external modules |
| Form factor | Rack/tower |
| Rack size | 2U |
| Communications | LCD, USB, RS-232, WEBCARDLXE |
| Environmental - Temp range | 0 °C to 40 °C (32 °F to 104 °F) |
| Relative humidity | 0 %-96 % non-condensing |
| Dimensions (H×W×D) | 3.41 in × 17.33 in × 23.82 in |
| Weight | 63.06 lb |
| Certifications | UL 1778, CSA, NOM, cTUVus, CE, RoHS, ENERGY STAR |
