Detailed Specifications

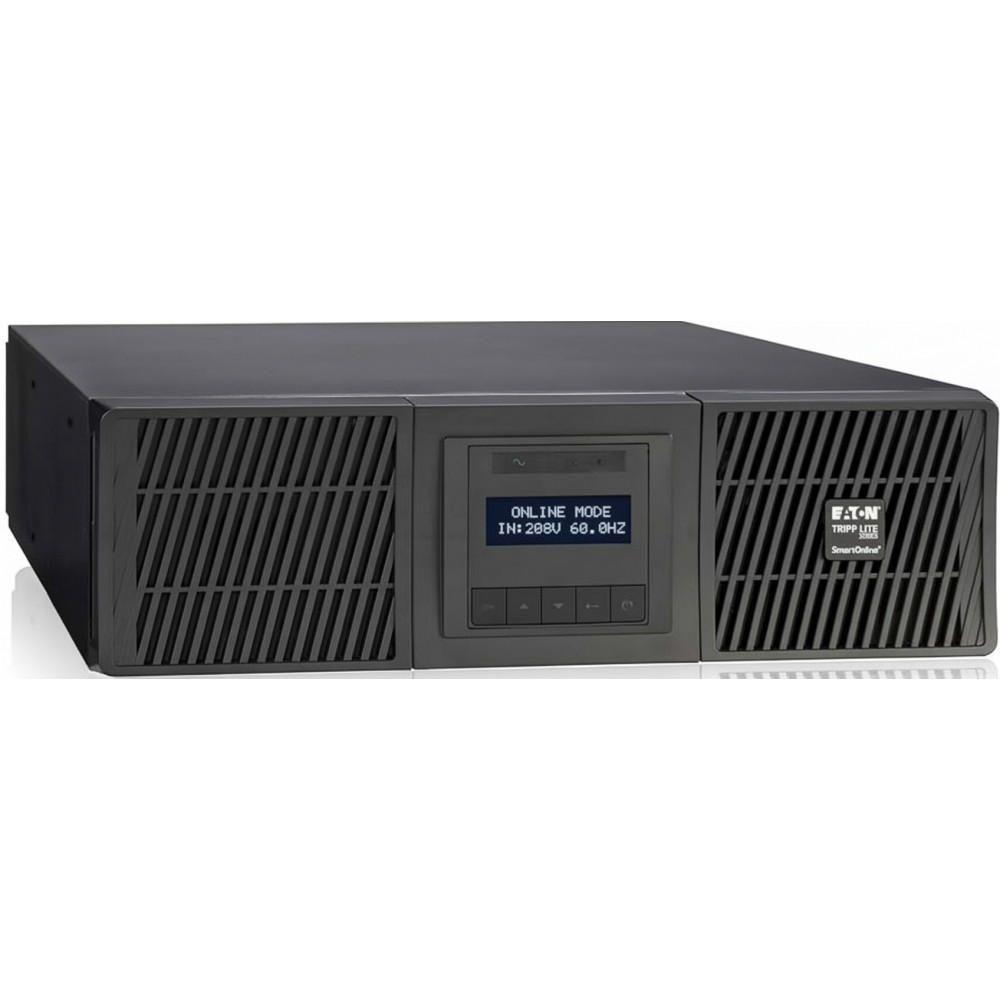

Eaton SU5000RT - Online Double-Conversion UPS
Overview :
The Eaton SU5000RT is a 5000 VA / 4500 W online double-conversion UPS designed for data centres, server rooms or network closets that require clean, uninterrupted power. It supports a factory-configured nominal output of 208 V and uses true sine-wave output with zero transfer time for connected equipment. The unit is suitable for rack-mount (3 U) or tower deployment in enterprise, branch, edge or co-location installations. It includes a pre-installed network management card (WEBCARDLXE) enabling remote monitoring and control.
Key Features :
5000 VA (4.5 kW) output capacity at 208 V nominal.
Pure sine-wave output and 0 ms transfer time in double-conversion mode.
Pre-installed network management card (WEBCARDLXE) for SNMP/remote access.
Hot-swappable VRLA battery modules plus support for up to four external battery packs.
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SU5000RT |
| Product Type | Online Double-Conversion UPS |
| Output Capacity (VA/W) | 5000 VA / 4500 W |
| Output Voltage Nominal | 208 V (factory configured; supports 200-240 V) |
| Output Power Factor | 0.9 |
| Topology | Online / double-conversion |
| Efficiency at Max Load | 93% |
| Battery Type | Valve-Regulated Lead-Acid (VRLA) |
| Runtime at Full Load | Approx. 3 minutes |
| Runtime at Half Load | Approx. 11 minutes |
| Form Factor | Rack/Tower (3 U) |
| Input Phase | Single-phase |
| Communication Interfaces | USB, RS-232, dry contacts, network card |
| Noise Level | < 45 dB at 1 m |
