Detailed Specifications

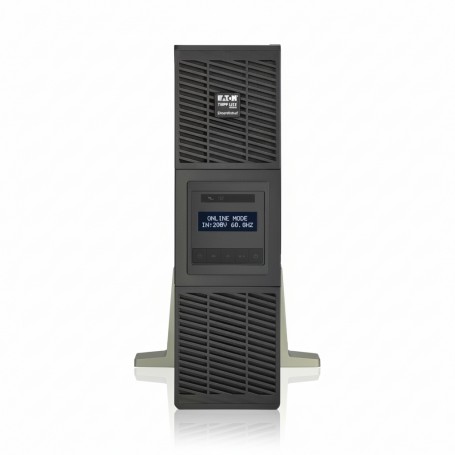

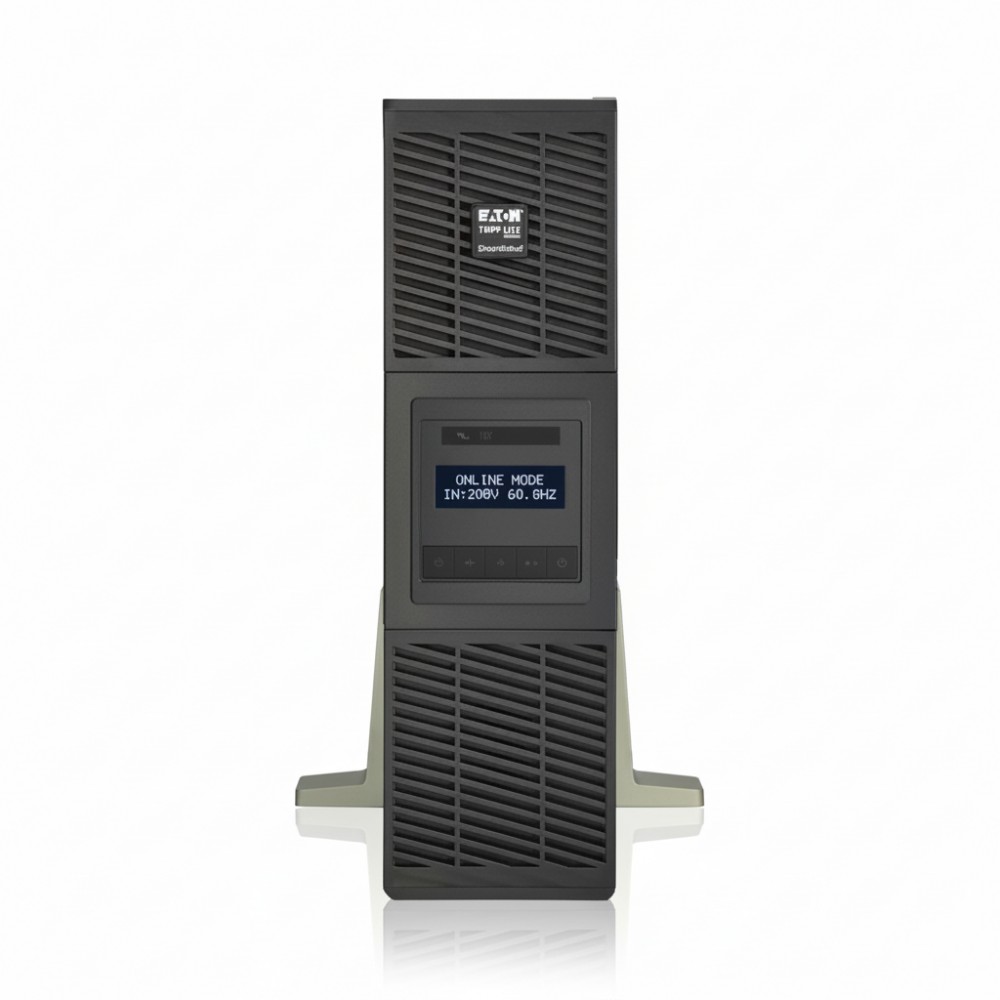

Eaton SU5000RTMB - 5kVA Rack/Tower Online UPS
Overview :
The Eaton SU5000RTMB is a 5kVA double-conversion online UPS designed for critical network, server, and storage environments. It provides continuous power protection from outages, voltage fluctuations, and frequency variations. The unit can be installed in rack or tower configurations, making it adaptable for data centers, branch offices, and network closets. Compatible with Eaton's Powerware management software, it ensures intelligent monitoring and remote power management.
Key Features :
5000 VA / 3500 W online power capacity
Rack/tower convertible form factor
Hot-swappable, user-replaceable batteries
RS-232 and SNMP monitoring options
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SU5000RTMB |
| Product Type | Online UPS (Rack/Tower Convertible) |
| Power Capacity | 5000 VA / 3500 W |
| Topology | Double Conversion (Online) |
| Input Voltage | 208/240V AC (configurable) |
| Output Voltage | 208/240V AC |
| Output Waveform | Pure Sine Wave |
| Form Factor | 5U Rack / Tower Convertible |
| Battery Type | Sealed Lead-Acid, Hot-Swappable |
| Battery Backup Time | Approx. 5-8 minutes at full load |
| Interfaces | RS-232, DB-9, SNMP (optional card) |
| Communication Slot | Yes, for network management card |
| Dimensions (HxWxD) | Approx. 8.75 x 17.5 x 26.5 in |
| Weight | Approx. 185 lbs (84 kg) |
