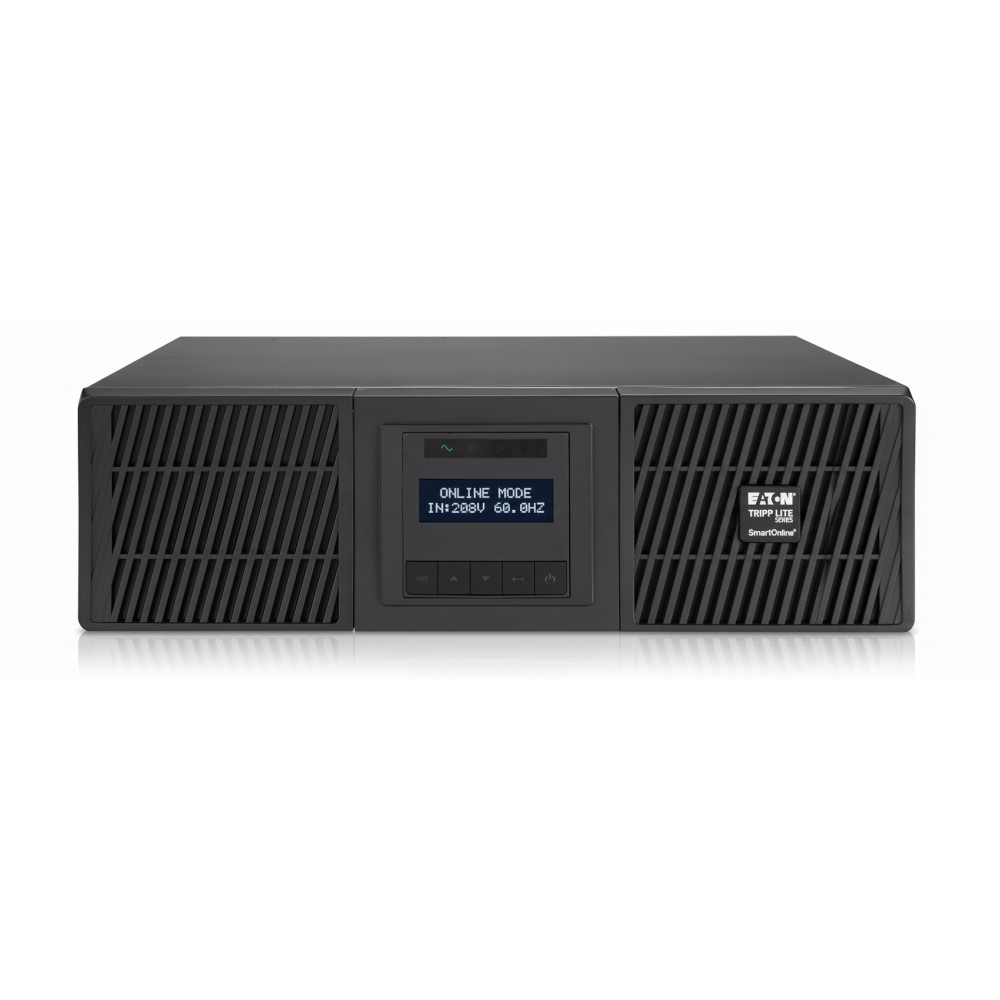

Eaton SU6000RTMB – Online UPS 6000 VA 5400 W 208 V

Overview

The Eaton SU6000RTMB is an online double‑conversion uninterruptible power supply (UPS) engineered for continuous, conditioned AC power to critical infrastructure loads. It is deployed by data center engineers, network architects, and facilities teams to protect rack servers, storage arrays, virtualization hosts, and network aggregation switches in environments where uptime and clean voltage are mandatory. The double‑conversion topology isolates loads from brownouts, surges, and frequency fluctuations by rectifying input power and regenerating a true sine‑wave output.

Rated at 6000 VA / 5400 W with a 208 V nominal output and a 0.9 power factor, the SU6000RTMB supports medium‑to‑high density rack loads typical of enterprise consolidation zones and small data halls. It delivers tight voltage regulation (±1 %) in both line and battery modes, ensuring stable power for sensitive electronics. Hot‑swappable internal batteries and support for up to four external battery modules (EBMs) enable scalable runtime to bridge utility outages or transitions to standby generation.

Deployment is in a 3U rack/tower form factor with included rack‑mounting hardware, making it suitable for standard 19‑inch enclosures or dedicated UPS cabinets. A pre‑installed network card (WEBCARDLXE) enables remote management, event logging, and integration with Eaton’s management tools for controlled shutdowns, alerts, and network‑based power control. The unit also includes an internal bypass switch to maintain load continuity during UPS servicing.

Communications include USB, RS‑232, and Ethernet via the installed network card, allowing integration with infrastructure management systems and remote UPS monitoring. Local diagnostics are available through a front panel interface. The SU6000RTMB also incorporates surge suppression and EMI/RFI filtering to protect connected equipment from electrical noise.

A practical deployment example is protecting a core consolidation rack in a data center with mixed servers, SAN storage, and core switches. During a utility power disruption or severe voltage anomaly, the online double‑conversion topology maintains stable output while extended battery modules provide runtime for graceful shutdown or handoff to generator power.

This UPS is not suitable for desktop environments or small branch closets where lower‑capacity line‑interactive models suffice; it is designed for centralized racks and mid‑sized facility power protection.

Key Features

• Online double‑conversion UPS with ±1 % regulated output
• 6000 VA / 5400 W capacity at 208 V with 0.9 power factor
• Hot‑swappable internal batteries + up to 4 EBMs support
• Pre‑installed WEBCARDLXE network card for remote management
• Internal maintenance bypass and surge/EMI/RFI protection
