Detailed Specifications

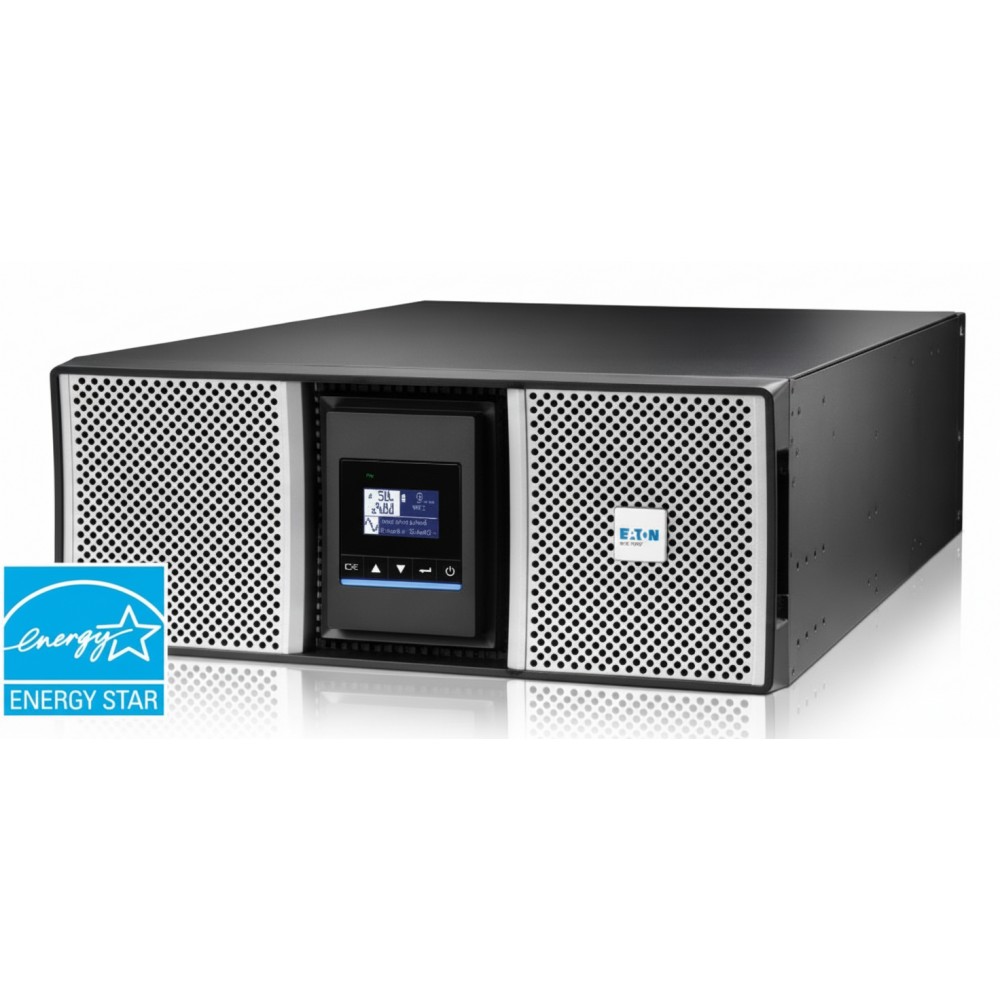

Eaton 9PX5KG2 - 5kVA Online Rack/Tower UPS
Overview :
The Eaton 9PX5KG2 is a 5kVA/4.5kW double-conversion online UPS designed for protecting critical IT and networking equipment in small to medium data centers and edge environments. It ensures continuous, clean, and regulated power for servers, storage, and VoIP systems during outages and fluctuations. The 9PX series supports both rackmount and tower configurations, providing installation flexibility. Integrated with Eaton Intelligent Power Manager (IPM) software, it offers centralized monitoring and control across power infrastructure.
Key Features :
5kVA/4.5kW double-conversion UPS
Rack/tower convertible design
Hot-swappable battery modules
LCD interface with energy metering
Specifications :
| Specification | Description |
|---|
| Brand | Eaton |
| Part Number | 9PX5KG2 |
| Product Type | Online Rack/Tower UPS |
| Power Capacity | 5kVA / 4.5kW |
| Topology | Double Conversion (Online) |
| Input Voltage Range | 200-240V AC |
| Output Voltage | 230V AC |
| Form Factor | Convertible (Rack/Tower) |
| Rack Height | 3U |
| Efficiency | Up to 95% in online mode |
| Battery Type | Sealed lead-acid, hot-swappable |
| Communication Ports | USB, Serial, Network (optional card) |
| Management Software | Eaton Intelligent Power Manager (IPM) |
| Operating Temperature | 0°C to 40°C |
| Warranty | 3 Years (Electronics), 2 Years (Battery) |
