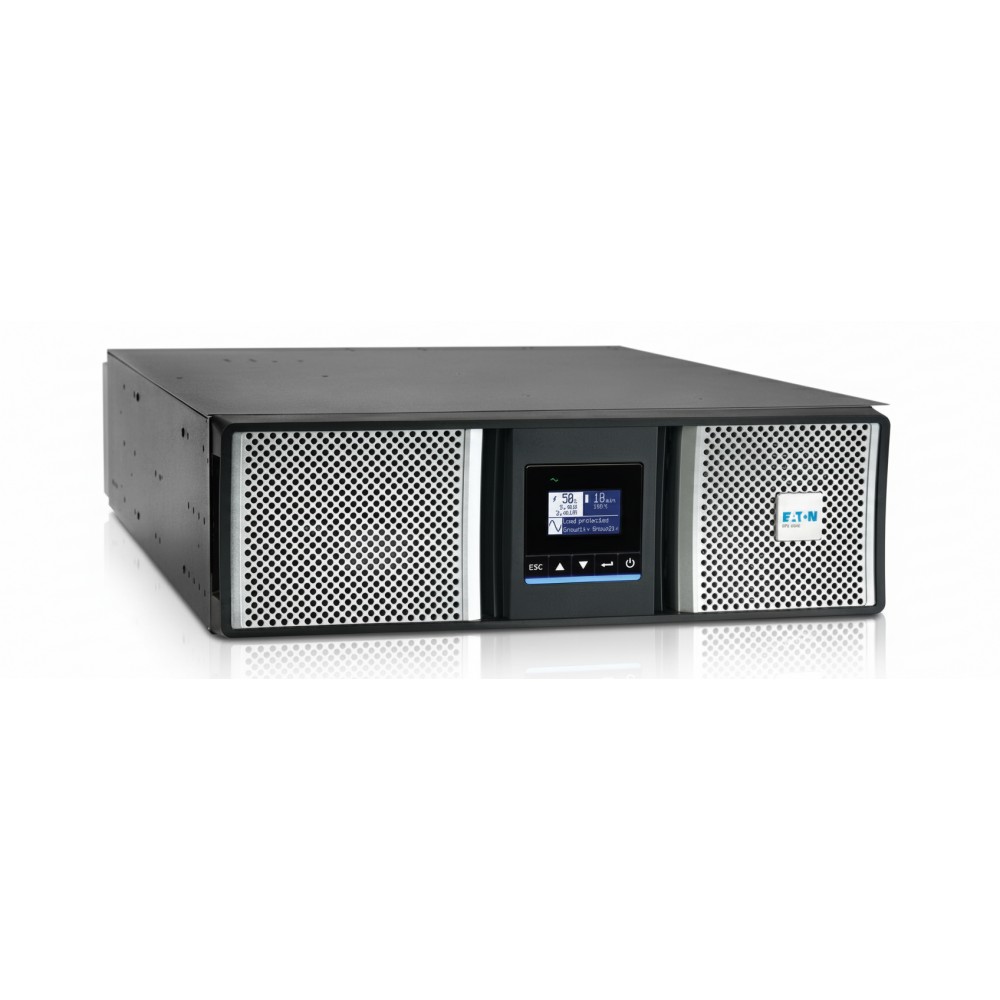

Eaton 9PX6KG2 - Online UPS 6000 VA 5400 W
Overview
The Eaton 9PX6KG2 is a rack/tower online double-conversion uninterruptible power supply (UPS) engineered to deliver continuous conditioned power and battery backup for medium to large enterprise infrastructure. IT engineers, data center architects, and facilities teams deploy this unit to support critical servers, storage systems, network aggregation switches, and virtualization hosts in racks where clean, uninterrupted AC power is required. The online topology isolates the load from utility anomalies×voltage sags, surges, frequency excursions×by actively rectifying and regenerating AC output.
This unit is rated 6000 VA / 5400 W with a nominal 208 V output and true sine-wave waveform, providing high power density for consolidation and core rack zones. It delivers tight steady-state voltage regulation of ±1 % and supports ABM+ battery management, which optimizes charging and predicts replacement timing based on real-world conditions. Hot-swappable internal batteries and support for up to 12 extended battery modules (EBMs) allow scaling of runtime for extended outages or generator transfer windows.
Deployment is in a 3U rack/tower form factor, making it suitable for enterprise core racks, IDF/MDF consolidation zones, and dedicated UPS cabinets. The included Gigabit SNMP/Web network card in the Mini-Slot expansion port enables remote monitoring, event logging, and integration with Eaton's management suites. Local diagnostics are available through a graphical front panel with programmable menu and LED indicators.
Communications include Ethernet via the network card, USB, RS-232, and remote contacts, enabling integration with facility automation, event management, and orderly shutdown workflows. The UPS has high input power factor (>0.99 typical) and supports both hardwired and L6-30P input connections with a 10 ft cord, offering flexible site accommodation in utility and generator feed architectures.
A practical deployment example is powering a core consolidation rack with multiple servers, storage arrays, and aggregation network switches. The UPS's online double-conversion topology and ABM+ battery management sustain clean power and extend usable battery life while providing sufficient runtime for controlled shutdown or transition to backup generation during prolonged utility outages.
This unit is not appropriate for small branch closets or desktop environments where lower-capacity line-interactive UPS models suffice. Additionally, environments requiring integrated maintenance bypass or modular hot-swappable power modules may consider larger 9PX solutions with those capabilities.
Key Features
- 6000 VA / 5400 W online double-conversion UPS
- True sine-wave 208 V output with ±1 % regulation
- Hot-swappable internal batteries + EBM support
- Gigabit SNMP/Web network card included
- 3U rack/tower with graphical display and menus
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 9PX6KG2 |
| Product Type | Online Double-Conversion UPS |
| VA Rating | 6000 VA |
| Wattage | 5400 W |
| Topology | Online/Double-Conversion |
| Output Voltage | 208 V nominal |
| Output Power Factor | 0.9 (L6-30P), 1.0 (hardwired) |
| Output Regulation | ±1 % steady-state |
| Output Waveform | True sine wave |
| Output Frequency | 50/60 Hz |
| Input Voltage | 208 V nominal (configurable) |
| Input Connections | L6-30P + hardwired supported |
| Input Cord Length | 10 ft |
| Battery Type | Sealed lead-acid (VRLA) |
| Battery Management | ABM+ predictive analytics |
| Extended Battery | Up to 12 EBMs supported |
| Communications | Gigabit SNMP/Web, USB, RS-232, relay |
| Display | Graphical panel with menu |
| Rack Size | 3U |
| Dimensions (H×W×D) | 5.12″ × 17.32″ × 26.93″ |
| Weight | 98.33 lb |
| Efficiency | ~96 % at max load |
| Operating Temp | 0 - 40 °C |
| Certifications | IEC 62040-2 Cat C2, cULus, NOM, ENERGY STAR |
| Surge Protection | Yes |
