Overview

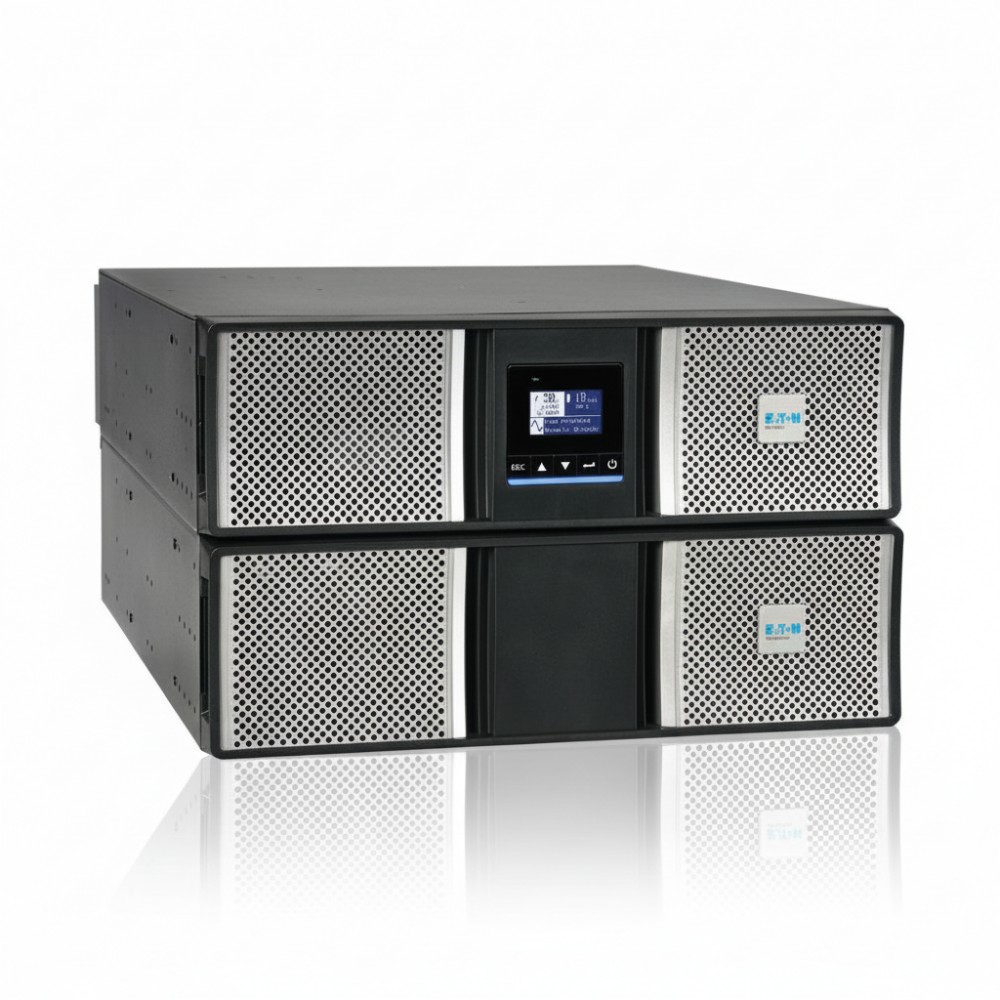

The Eaton 9PX5KTF5G2 is a 5,000VA/5,000W online double-conversion uninterruptible power supply (UPS) designed to protect critical IT equipment, servers, networking systems, and business infrastructure. It delivers true sine wave output and supports 120V and 200–240V output configurations, making it suitable for installations requiring different output voltages.
This 6U rack/tower UPS includes a NETWORK-M3 Gigabit network management card for remote monitoring and control. Its internal batteries, replaceable battery design, and support for compatible external battery modules help maintain power continuity during outages.
Key Features
- 5,000VA / 5,000W Capacity: Supports compatible critical equipment with a 1.0 output power factor.
- Online Double-Conversion Technology: Provides continuous power conditioning and true sine wave output.
- Network Management Included: NETWORK-M3 Gigabit network card supports remote monitoring and management.
- Rack or Tower Installation: 6U design supports flexible installation in server rooms and IT environments.
- Expandable Battery Runtime: Supports compatible external battery modules for longer backup operation.
Power Protection and Battery Management
The 9PX G2 uses online double-conversion technology to condition incoming power before supplying connected equipment. It includes surge protection and an internal bypass for supported operating conditions.
Eaton ABM+ battery management technology helps monitor battery condition and predict replacement needs. The internal valve-regulated lead-acid batteries are replaceable, and compatible external battery modules can be added to extend runtime.
Connectivity and Output
The UPS provides a combination of 120V receptacles, 200–240V receptacles, and a hardwired output provision. Its NETWORK-M3 card enables network-based monitoring, while USB and RS-232 interfaces support local communication.
- 18 × NEMA 5-20R outlets
- 2 × NEMA L6-20R outlets
- 1 × NEMA L6-30R outlet
- Hardwired output provision
- L6-30P or hardwired input connection options
- NETWORK-M3 Gigabit network management card
Check the electrical installation, input connection, output voltage requirements, and receptacle compatibility before connecting equipment. The step-down transformer configuration and availability should be confirmed against the exact supplied package.
Technical Specifications
| Brand | Eaton |
| Part Number / MPN | 9PX5KTF5G2 |
| Product Type | Online Uninterruptible Power Supply (UPS) |
| Product Series | 9PX G2 |
| Power Rating | 5,000VA / 5,000W |
| Topology | Online double conversion |
| Output Waveform | True sine wave |
| Output Voltage | 120V and 200–240V configurations |
| Input Voltage | 200V, 208V, 220V, 230V, 240V |
| Input Connection | NEMA L6-30P or hardwired |
| Output Connections | 18 × NEMA 5-20R, 2 × NEMA L6-20R, 1 × NEMA L6-30R, hardwired provision |
| Output Power Factor | 1.0 |
| Frequency | 50/60Hz |
| Network Management | NETWORK-M3 Gigabit network card included |
| Communication Interfaces | Ethernet, USB, RS-232 |
| Battery Type | Valve-regulated lead-acid (VRLA) |
| Runtime at Full Load | Approximately 3.5 minutes at 5,000W |
| Runtime at Half Load | Approximately 9.4 minutes |
| External Battery Support | Up to 12 compatible external battery modules |
| Maximum Online Efficiency | Up to 96% |
| Rack Height | 6U |
| Dimensions (D × W × H) | 27 × 17.3 × 10.2 inches (685.8 × 439.4 × 259.1 mm) |
| Weight | 203 lb (92.1 kg) |
| Operating Temperature | 0°C to 40°C |
| Warranty | 3-year limited factory warranty, subject to terms |
Applications
- Enterprise servers and storage systems
- Data centers and server rooms
- Network switches, routers, and communications equipment
- Business-critical IT infrastructure
- Edge computing and distributed IT environments
Frequently Asked Questions
1. What is the power capacity of the Eaton 9PX5KTF5G2?
It is rated at 5,000VA and 5,000W, with a 1.0 output power factor.
2. Does this UPS include a network management card?
Yes. The NETWORK-M3 Gigabit network management card is included for remote monitoring and control.
3. Can this UPS be installed in a rack or tower configuration?
Yes. It supports rack or tower installation. The unit occupies 6U of rack space.
4. How long will the UPS run during a power outage?
Published estimates are approximately 3.5 minutes at full 5,000W load and 9.4 minutes at half load. Actual runtime varies with load, battery condition, and operating environment.
5. Can additional batteries be connected?
Yes. The UPS supports compatible external battery modules to extend runtime. Confirm module compatibility before purchasing additional batteries.
DC Supplies Product Note
Verify the exact part number 9PX5KTF5G2 when ordering. Confirm the required input supply, output voltage, receptacle types, installation method, and transformer requirements for your application. Package contents should be checked against the supplier's current configuration.
