Overview

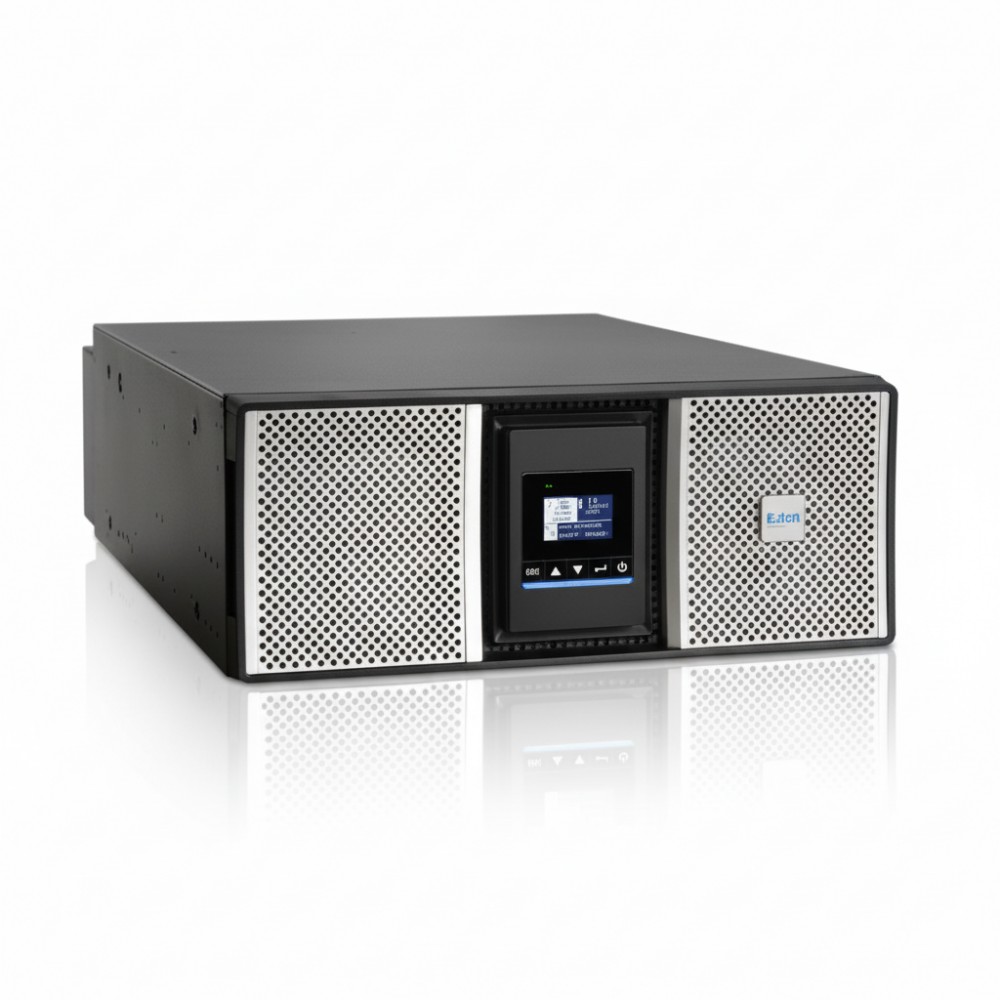

The Eaton 9PX8KG2 is an 8,000VA / 8,000W online double-conversion uninterruptible power supply (UPS) designed to protect critical IT infrastructure, enterprise servers, networking equipment, and data center systems. It delivers true sine wave output and provides continuous power conditioning to help protect connected equipment against power interruptions and electrical disturbances.
This 9PX G2 model features a 4U rack/tower design, internal hot-swappable VRLA batteries, and an included NETWORK-M3 Gigabit network management card for remote monitoring and control. Hardwired input and output connections support professional installations requiring high-capacity power protection.
Key Features
- 8,000VA / 8,000W Capacity: Supports critical equipment with a power factor of up to 1.0 at 220–240V output.
- Online Double-Conversion: Provides continuous power conditioning and true sine wave output.
- Network Management Included: NETWORK-M3 Gigabit network card enables remote monitoring and management.
- Rack or Tower Installation: Space-efficient 4U chassis supports flexible installation options.
- Expandable Runtime: Supports compatible external battery modules for extended backup operation.
Power Protection and Battery Management
The UPS uses online double-conversion technology to regulate incoming power before supplying connected equipment. An internal bypass supports power continuity under specified operating conditions.
Eaton ABM+ battery management technology analyzes battery condition to help identify when replacement may be needed. The internal VRLA batteries are hot-swappable, and compatible external battery modules can be added to extend runtime.
Connectivity and Installation
The 9PX8KG2 uses a hardwired input and provides four NEMA L6-30R receptacles alongside a hardwired output connection. The included NETWORK-M3 card supports Gigabit Ethernet-based monitoring and management. USB and RS-232 interfaces are also provided for local communication.
Because this model is designed for high-capacity electrical installations, input supply, circuit protection, wiring, and output requirements should be verified by a qualified electrician before installation.
Technical Specifications
| Brand | Eaton |
| Part Number / MPN | 9PX8KG2 |
| Product Type | Online Uninterruptible Power Supply (UPS) |
| Product Series | 9PX G2 |
| VA Rating | 8,000VA (8kVA) |
| Power Capacity | 8,000W (8kW) |
| Topology | Online double-conversion |
| Output Waveform | True sine wave |
| Nominal Output Voltage | 208V default; configurable for 200V, 208V, 220V, 230V and 240V |
| Output Power Factor | 0.95 at 208V; 1.0 at 220–240V |
| Input Connection | Hardwired |
| Output Connections | 4 × NEMA L6-30R and hardwired output |
| Network Management | NETWORK-M3 Gigabit network card included |
| Communication Interfaces | Gigabit Ethernet, USB, RS-232 |
| Battery Type | Valve-regulated lead-acid (VRLA) |
| Battery Management | Eaton ABM+ technology |
| Runtime at Full Load | Approximately 5.4 minutes at 8,000W |
| Runtime at Half Load | Approximately 8.3 minutes |
| External Battery Expansion | Supports up to 12 compatible external battery modules |
| Maximum Online Efficiency | Up to 96.5% |
| Rack Height | 4U |
| Dimensions (D × W × H) | 28.5 × 17.32 × 6.85 inches (724 × 440 × 174 mm) |
| Weight | 173.72 lb (78.8 kg) |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | 0–95%, non-condensing |
| Warranty | 3-year limited factory warranty, subject to terms |
Applications
- Enterprise servers and storage infrastructure
- Data centers and server rooms
- Network switches, routers, and communications equipment
- Business-critical IT systems
- Virtualization and edge computing infrastructure
Frequently Asked Questions
1. What is the power capacity of the Eaton 9PX8KG2?
It is rated at 8,000VA and 8,000W, with the available output power factor depending on the selected output voltage.
2. Does this UPS include network management?
Yes. A NETWORK-M3 Gigabit network management card is included for remote monitoring and control.
3. Can the UPS be installed in a rack or tower configuration?
Yes. The unit supports rack or tower installation and occupies 4U of rack space.
4. How long does the battery provide backup power?
Published runtime estimates are approximately 5.4 minutes at full load and 8.3 minutes at half load. Actual runtime varies with load, battery condition, and operating conditions.
5. Can external battery modules be connected?
Yes. The UPS supports up to 12 compatible external battery modules to extend runtime. Confirm module compatibility before ordering.
DC Supplies Product Note
Verify the exact model number 9PX8KG2 before purchase. This model requires hardwired electrical connections. Confirm the site's supply voltage, circuit capacity, output voltage, and installation requirements with a qualified electrician. Package contents and warranty coverage are subject to Eaton's applicable terms.
