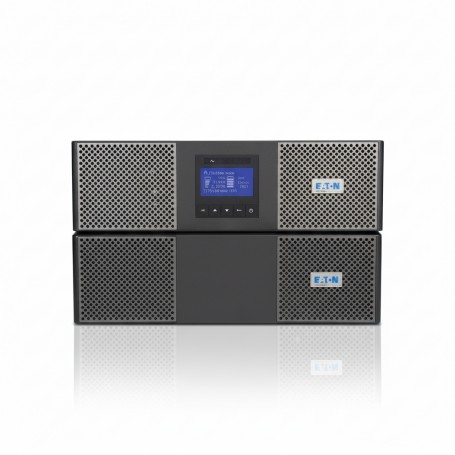

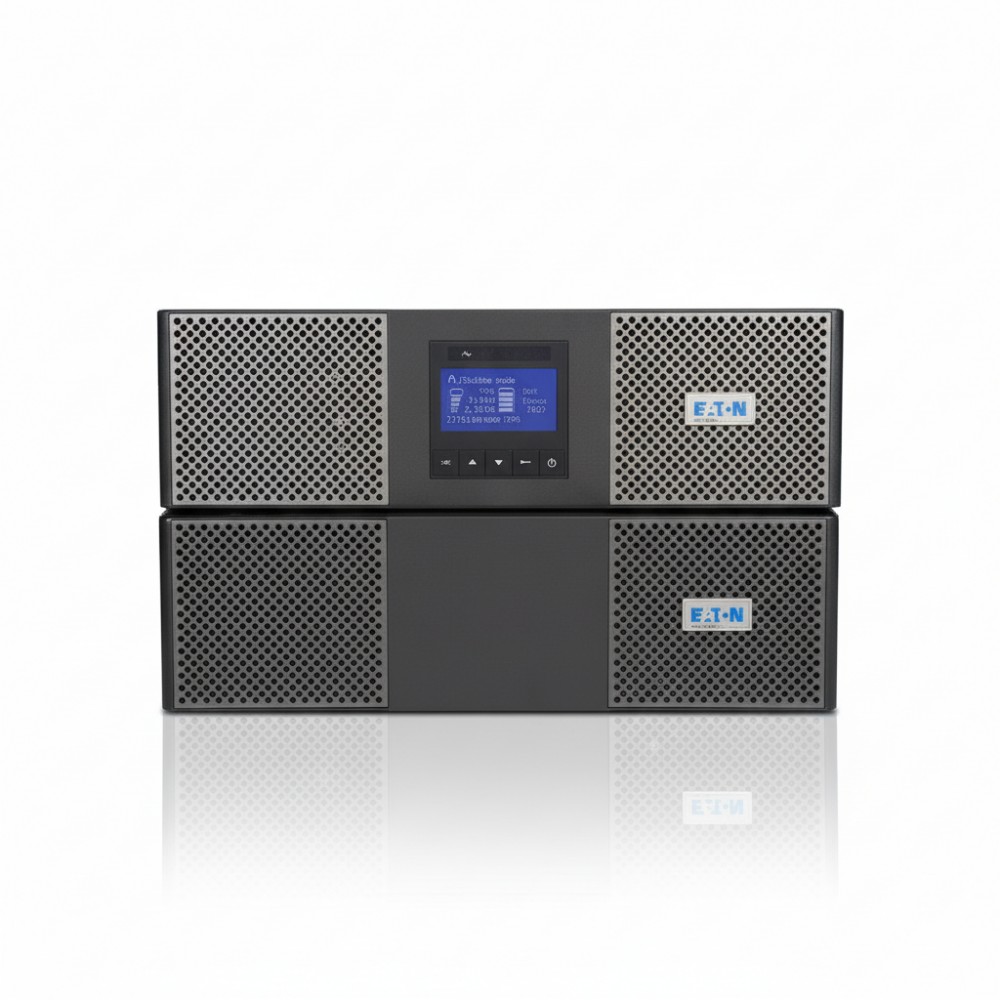

Eaton 9PX10KSP - Online UPS 10 kVA 9 kW 120/208 V
Overview
The Eaton 9PX10KSP is a high-capacity online double-conversion uninterruptible power supply (UPS) that delivers continuous power conditioning and battery backup for critical three-phase or split-phase IT and infrastructure environments. It is deployed by data center engineers, network architects, and facilities teams to ensure clean, uninterrupted AC power to servers, storage arrays, network aggregation switches, and virtualization hosts. The online topology isolates loads from utility fluctuations by actively converting input AC to DC and then back to AC, providing consistent output voltage and frequency.
The system supports a rated capacity of 10 kVA / 9 kW with a 120/208 V split-phase output and a 0.9 power factor, covering large rack rows, consolidation zones, and small data centers. Its electrical design delivers a tight output voltage regulation of ±1 % under steady-state conditions, which is essential for sensitive electronics and multiphase loads. Internal batteries are hot-swappable and can be augmented with up to four extended battery modules (EBMs) to increase runtime.
Deployment is rack-mounted in a standard 6U footprint, making it suitable for enterprise core racks, medium data halls, and dedicated UPS cabinets. The included rack mount kit and 6U height allow structured integration with PDUs and network distribution units, aligning with typical N+1 or 2N architectures. Remote monitoring and management are enabled by the included Gigabit network card in the Mini-Slot expansion port, alongside USB, RS-232, and relay interfaces.
Communication integration supports SNMP/Web via the network card and proprietary Intelligent Power Software Suite for power event logging, alerts, and controlled shutdown workflows. The graphical front panel display with a programmable menu provides local status diagnostics.
A practical deployment example is powering a cluster of core network routers, virtualization hosts, and SAN storage in a data center rack. The unit's online double-conversion topology and tight voltage regulation maintain clean, stable power while extended battery modules provide runtime to transition to standby generators during utility failure.
This UPS is not suitable for small branch closets or desktop environments where such high capacity and infrastructure integration are unnecessary; smaller line-interactive or modular rack systems should be selected for those spaces.
Key Features
- Online double-conversion UPS with split-phase output
- 10 kVA (9 kW) capacity at 120/208 V with 0.9 power factor
- ±1 % steady-state output voltage regulation
- Network card (Gigabit SNMP/Web) included
- Hot-swappable internal batteries + EBM support
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 9PX10KSP |
| Product Type | Online Double-Conversion UPS |
| VA Rating | 10 kVA |
| Wattage | 9 kW |
| Topology | Online/Double-Conversion |
| Output Voltage | 120/208 V split-phase |
| Output Power Factor | 0.9 |
| Output Voltage Regulation | ±1 % steady-state |
| Output Frequency | 50/60 Hz |
| Input Connection | Hardwired |
| Input Voltage | 120/208 V (configurable) |
| Input Frequency Range | 40-70 Hz |
| Communications | Gigabit SNMP/Web, USB, RS-232, relay |
| Network Card | Included (Mini-Slot expansion) |
| Display | Graphical front panel, 5-button menu |
| Batteries | Hot-swappable internal; optional EBMs |
| Rack Size | 6U |
| Dimensions (H×W×D) | 10.3″ × 17.3″ × 32″ |
| Weight | 225 lb |
| Efficiency (Max Load) | 93 % |
| Operating Temp | 0-40 °C |
| Certifications | IEC 62040-2 Cat C2, cULus, NOM, ENERGY STAR |
| Warranty | 3-year limited |
