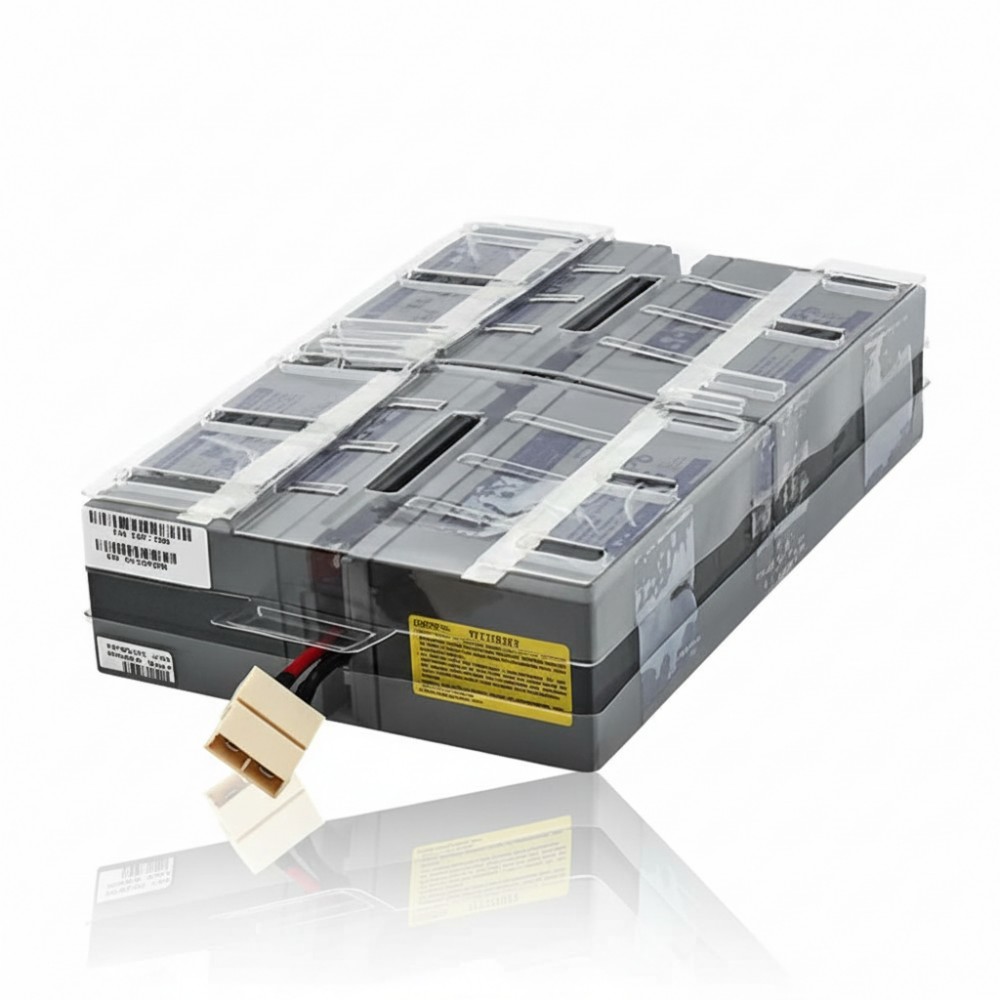

Eaton EBP-1002 - UPS Battery Pack Replacement
Overview
The Eaton EBP-1002 is a sealed lead-acid replacement battery cartridge designed for internal use in select Eaton 5P and 5PX uninterruptible power supply (UPS) systems. It is deployed by IT infrastructure engineers and facilities maintenance teams when the original UPS battery has reached end-of-life or can no longer sustain the required backup runtime. The EBP-1002 restores the UPS to its designed uptime capability without changing the UPS's rated power capacity.
This battery pack provides a 12 V DC output and is engineered as a direct drop-in replacement for compatible Eaton 5P/5PX rack/tower UPS models in the 2000 VA-2200 VA class. It retains the original runtime characteristics of the UPS and must be installed inside the UPS chassis, integrating with the UPS's existing battery harness.
The EBP-1002 is appropriate for environments such as branch office IT closets, server racks in small-to-medium data centers, and edge computing sites where a compact UPS supports key network, compute, or storage infrastructure. It does not change UPS form factor or power rating and is intended for single-phase systems.
Integration is straightforward: this pack uses Eaton's factory-designed connectors and harnesses and is compatible with models such as 5P2000, 5P2200RT, and 5PX2200 variants. Installation typically occurs during scheduled maintenance to minimize impact on protected loads.
In practical deployment, replacing the EBP-1002 is triggered when the UPS indicates a battery replacement warning or when runtime tests show significant degradation. Engineering teams should plan for battery lifecycle replacement every 3-5 years, depending on operational temperature and load conditions.
This battery pack should not be used as an external runtime extension module (EBM) or in UPS series other than specified 5P/5PX models, as it is sized, rated, and electrically configured only for those internal battery compartments. Mismatched use can lead to improper fit and electrical incompatibility.
Key Features
- Eaton UPS internal SLA replacement battery pack
- 12 V DC output for direct UPS integration
- Compatible with Eaton 5P2000/5PX2200 series
- Pre-wired sealed lead-acid design
- ~27 lb engineered for rack/tower UPS environments
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | EBP-1002 |
| Product Type | UPS Battery Pack |
| Battery Type | Sealed Lead-Acid (VRLA) |
| Nominal Output Voltage | 12 V DC |
| Compatible UPS Models | 5P2000, 5P2200RT, 5PX2200RT, 5PX2200RTN, 5PX2200RTUS, 5PX2200iRT |
| Phase | Single-phase |
| Height | 6.75 in |
| Width | 18.37 in |
| Depth | 12.75 in |
| Weight | ~27 lb |
| Operating Temperature | 0 °C to 40 °C |
| Certifications | IEC Rated, cULus Listed |
| Compliances | FCC Compliant |
| Connector Type | OEM Eaton internal battery harness |
| Country of Origin | United States |
