Detailed Specifications

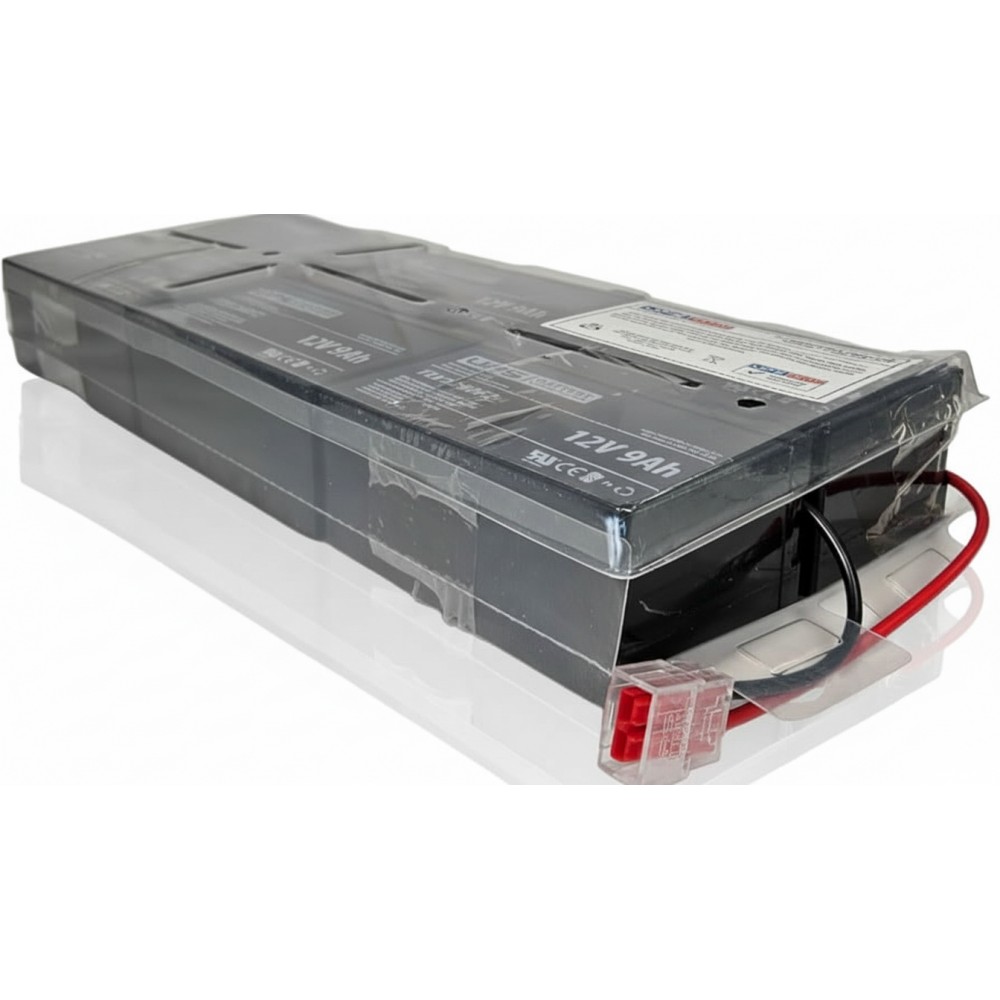

Eaton 744-A3121 - Internal UPS Battery Cartridge
Overview
The Eaton 744-A3121 is an internal replacement battery cartridge designed to restore or extend runtime in specific Eaton 9PX uninterruptible power supplies and related extended battery modules. IT engineers, data center technicians, and field service teams use this battery to maintain predictable UPS performance where original battery depletion would otherwise reduce backup time.
This unit consists of a sealed lead-acid (VRLA) battery pack pre-wired for quick installation and hot-swap replacement. The VRLA chemistry provides a maintenance-free solution that is leak-resistant and designed to fit within the internal battery compartment of compatible UPS systems, preserving original runtime characteristics.
The 744-A3121 pack is suitable for use in standard rack environments with Eaton 9PX 2000-2200VA UPS systems and compatible extended battery modules. Its form factor is engineered to integrate with the UPS without requiring additional cabinet space or external mounting hardware, making it appropriate for IDF/MDF rooms, branch office racks, and edge compute cabinets where backup power continuity is essential.
Integration with supported UPS models leverages onboard battery management features, allowing runtime display and status monitoring through the UPS interface. Hot-swappable capability enables replacement without powering down connected loads, minimizing service disruption during maintenance events.
A common deployment involves replacing aged internal batteries within 9PX2000RT or 9PX2200GRT units to restore rated runtime for rack servers and network switches ahead of planned outages or utility maintenance. This ensures predictable failover behaviour and reduces unplanned downtime risk.
This battery cartridge is not suitable for non-9PX series UPS models, extended battery modules beyond supported configurations, or systems where external battery strings are required for long-duration backups.
Key Features
- Sealed lead-acid VRLA pack for UPS runtime restoration
- Pre-wired hot-swap design for service without shutdown
- Designed for Eaton 9PX 2kVA-2.2kVA UPS and EBMs
- Leak-proof maintenance-free construction
- Fits internal battery compartment for compact integration
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 744-A3121 |
| Product Type | Internal UPS Battery Cartridge |
| Battery Chemistry | Sealed Lead-Acid (VRLA) |
| Hot Swap Capability | Yes |
| Pre-Wired | Yes |
| Maintenance | Leak-proof, maintenance-free |
| Compatible UPS | Eaton 9PX2000RT, 9PX2000RTN, 9PX2200GRT |
| Compatible EBM | Eaton 9PXEBM72RT |
| Operating Temperature | 0°C to 40°C (typical) |
| Weight | ~15.8 kg / 34.8 lb |
| Height | ~101.6 mm / 4 in |
| Width | ~558.8 mm / 22 in |
| Depth | ~279.4 mm / 11 in |
| Expected Lifespan | ~3-5 years |
