Detailed Specifications

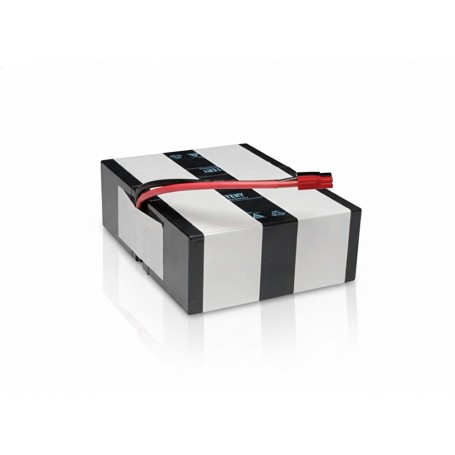

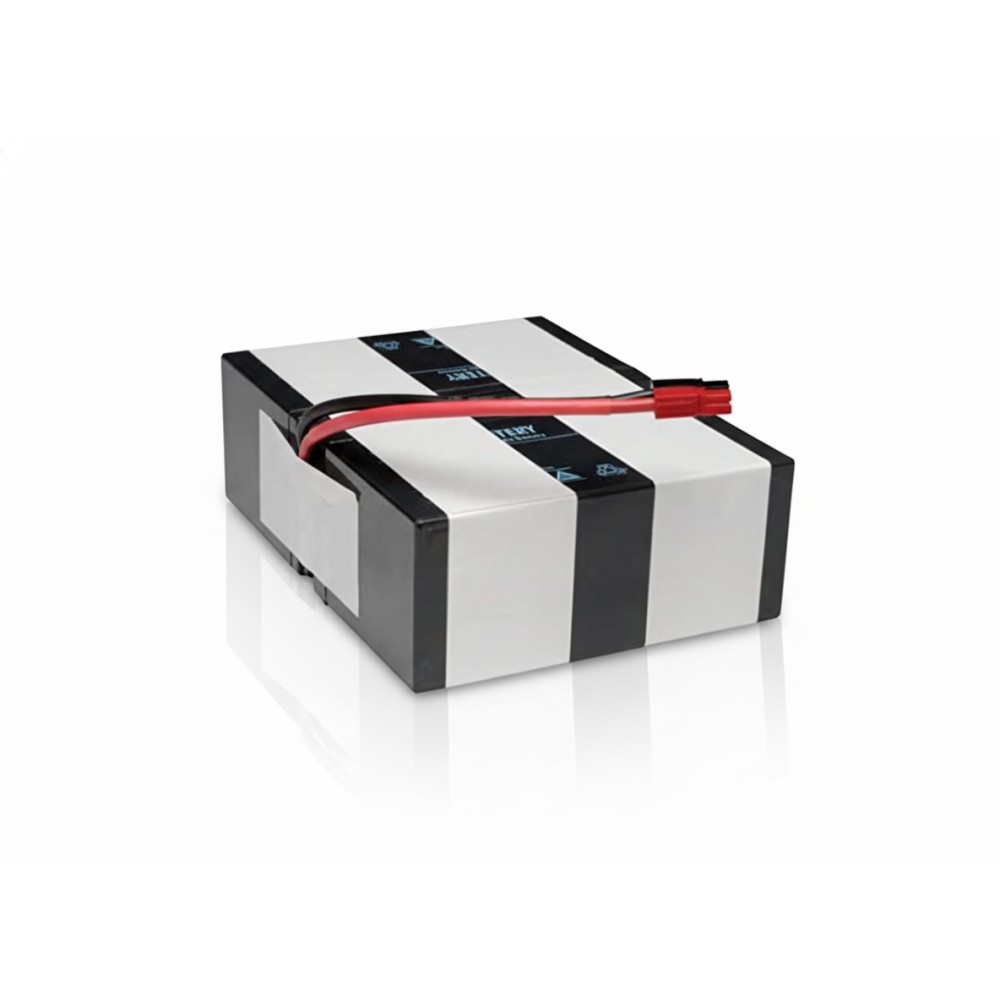

Eaton RBC24V-LCD - 24 V UPS Replacement Battery Cartridge
Overview
The Eaton RBC24V-LCD is a replacement battery cartridge designed to restore runtime in compatible Eaton (Tripp Lite series) 24 V DC UPS systems. Field engineers, data center technicians, and facilities teams use it when a UPS indicates battery end-of-life or when measured runtime no longer meets load requirements. This cartridge ensures that UPS installations continue to provide stored energy for safe shutdown or ride-through during outages.
This kit consists of a pair of pre-assembled 12 V sealed lead-acid batteries arranged for a 24 V DC system. The pack installs directly in place of aging batteries in approved UPS models without additional assembly, minimizing service time and error potential.
The replacement cartridge is sized to fit within a 2U rack shelf or UPS battery compartment, preserving the UPS's form factor and structural layout. It is suitable for branch wiring closets, network cabinets, and edge environments where space is constrained and battery access for serviceability is essential.
Compatibility is limited to specific Eaton (Tripp Lite) UPS models that operate on a 24 V DC battery system and support "LCD" series cartridges. Confirming compatibility against UPS documentation ensures correct voltage and connector fit before installation. The supplied pack does not include UPS electronics or runtime estimation.
In practice, technicians replace this cartridge when a UPS signals low battery health via its front panel or when measured runtime under test drops below site requirements. It is not a UPS unit itself×only the battery energy source for supported UPS models. Always ensure proper disposal or recycling of spent battery packs per local regulations.
Key Features
- Pre-assembled rack-mount battery pack for 24 V UPS systems
- Includes two 12 V sealed, maintenance-free lead-acid batteries
- Fits 2U battery bay or compatible UPS compartment
- Spill-proof, sealed construction for safe rackroom use
- Typical service life 3-5 years under normal conditions
Specifications
| Specification | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | RBC24V-LCD |
| Product Type | UPS Replacement Battery Cartridge |
| Battery Voltage | 24 V DC |
| Cells/Batteries | 2 × 12 V sealed lead-acid |
| Battery Chemistry | Valve-regulated lead-acid, maintenance-free |
| Form Factor | Rack-mountable, 2U |
| Typical Life | 3-5 years (dependent on use/environment) |
| Weight (Approx.) | ~12.6 lb (5.7 kg) |
| Dimensions (H×W×D) | ~2.6″ × 7.9″ × 6″ |
