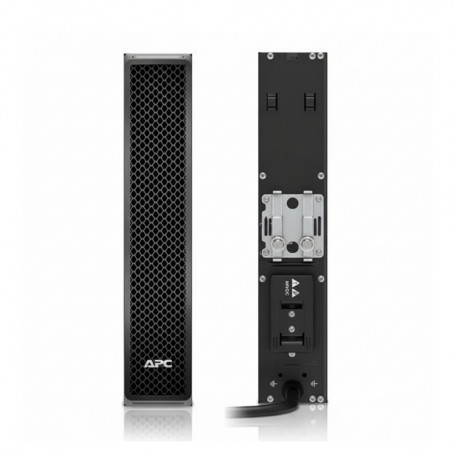

APC SRT96BP Smart-UPS SRT 96V 3KVA Battery Pack View larger

APC SRT96BP 96 V External Battery Pack for SRT 3 kVA Smart UPS

New

In Stock

96V UPS Battery Pack
×




$1,400.00

  • New

Detailed Specifications

APC SRT96BP – 96V External Battery Pack for Smart‑UPS 3 kVA

Overview :

The APC SRT96BP is an external battery pack designed to extend runtime for compatible APC Smart‑UPS On‑Line 3 kVA systems using a 96 V DC battery bus. It is used by IT operations and data center teams to provide predictable backup duration during utility outages and support orderly shutdowns of critical loads.

This battery pack uses sealed lead‑acid (VRLA) chemistry and supports hot‑swappable replacement, allowing battery servicing without disconnecting the UPS load when configured correctly.

Delivered in a 2 U rackmount form factor for standard 19″ cabinets, the SRT96BP integrates mounting hardware to secure it alongside the connected UPS.

The design helps maintain orderly cable and power delivery paths, and by locating the battery pack adjacent to the UPS, it simplifies runtime scaling by connecting additional packs as needed

Key Features :

• 96 V DC external rackmount battery pack for extended UPS runtime
• Sealed lead‑acid (VRLA) battery technology with hot‑swap support
• 2 U form factor for 19″ rack installation
• Supports chaining multiple packs for scalable runtime
• RoHS‑compliant external battery expansion solution

Specifications :

SpecificationValue
Brand APC by Schneider Electric
Part Number SRT96BP
Product Type External UPS Battery Pack / Runtime Extension
Battery Voltage 96 V DC
Battery Technology Sealed Lead‑Acid (VRLA)
Rack Height 2 U
Form Factor Rackmount
Height 432 mm (17.01 in)
Width 85 mm (3.35 in)
Depth 594 mm (23.39 in)
Net Weight ~40.6 kg (89.5 lb)
Hot‑Swappable Yes
Expected Battery Life ~3 – 5 years
Operating Temp. Range 0 – 40 °C (32 – 104 °F)
Operating Humidity 0 – 95 % non‑condensing
Certifications RoHS compliant
