Eaton 9PXMCHGR 20A UPS Battery Charger Compatible Tripp Lite
Overview :

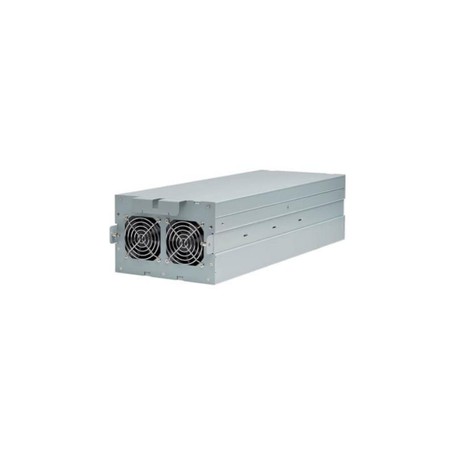

The Eaton 9PXMCHGR is a 20A UPS Battery Charger Module designed for Eaton 9PXM UPS systems and compatible Extended Battery Module (EBM) cabinets. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand designation being retained for this product series. Eaton identifies the 9PXMCHGR as an optional 20-amp charger module for the 9PXM platform.
The module provides up to 20A of charging current to accelerate battery recharge and support extended-runtime configurations. It can be installed directly in a 9PXM UPS or EBM cabinet and can charge up to 20 battery strings, equivalent to 20 slots / 40 individual battery cartridges.
The 9PXMCHGR uses the same form factor as the 9PXM power module and has a hardwired input. Eaton specifies online/double-conversion topology for the charger module, a 60 Hz output frequency, and hot-swappable power capability.
Key Features :
- 20A optional battery charger module
- Designed for Eaton 9PXM UPS systems
- Can be installed in 9PXM UPS or compatible EBM cabinet
- Provides up to 20A charging current
- Charges up to 20 battery strings
- Supports up to 20 slots / 40 battery cartridges
- Same form factor as 9PXM power module
- Hardwired electrical input
- Hot-swappable power module design
- ABM-compatible battery management
- Designed for faster battery recharge and extended-runtime configurations
- TAA compliant
- FCC compliant
- cULus Listed
- IEC rated
- Black/silver finish
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | 9PXMCHGR |
| Product Type | UPS Battery Charger Module |
| Product Family | Eaton 9PXM |
| Charger Rating | 20A |
| Accessory Class | UPS Accessories |
| Installation | 9PXM UPS or EBM cabinet |
| Input Connection | Hardwired |
| Input Power Factor | >0.99 typical |
| Input Frequency Range | 50-70 Hz at 60 Hz; 40-60 Hz at 50 Hz |
| Output Frequency | 60 Hz |
| Topology | Online / Double-conversion |
| Battery Management | ABM technology |
| Battery Compatibility | 9PXM battery modules |
| Maximum Battery Strings | 20 |
| Maximum Battery Slots | 20 |
| Maximum Battery Cartridges | 40 |
| Extended Battery Capability | Yes |
| Hot-Swap Power | Yes |
| Internal Bypass | Yes |
