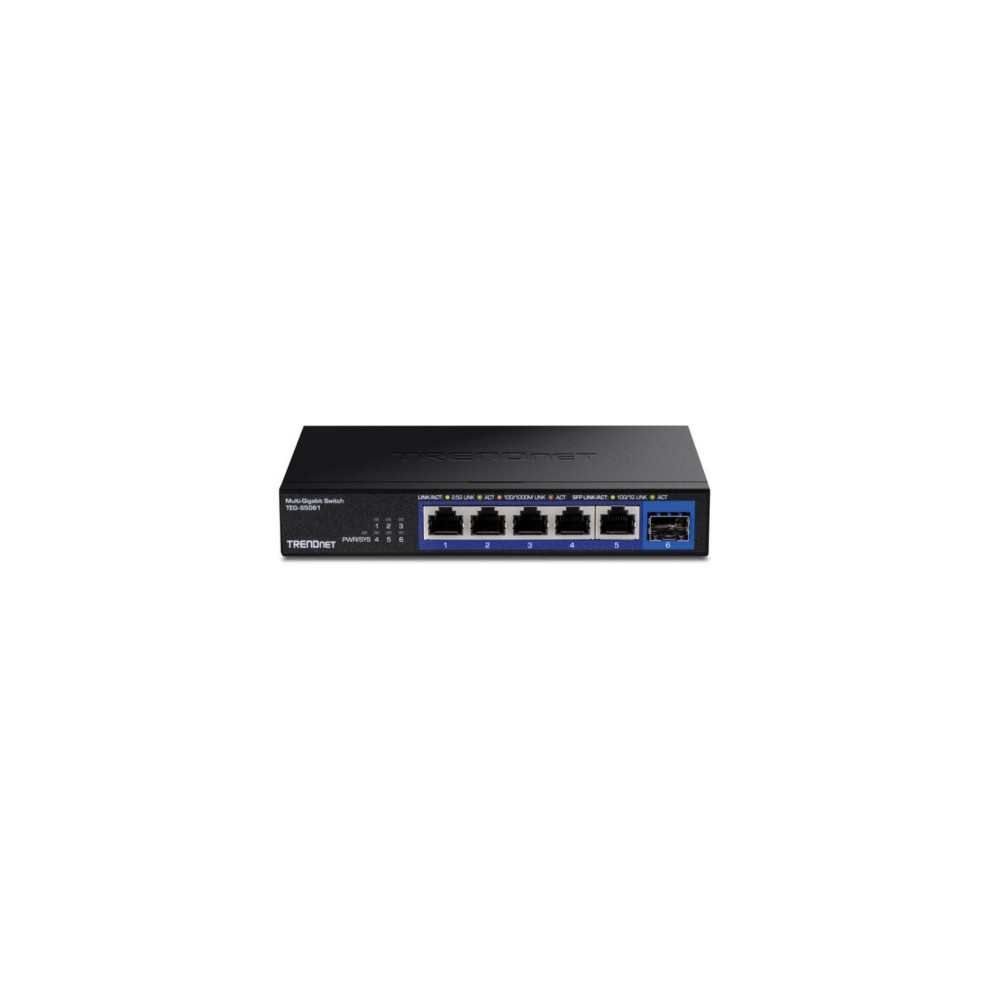

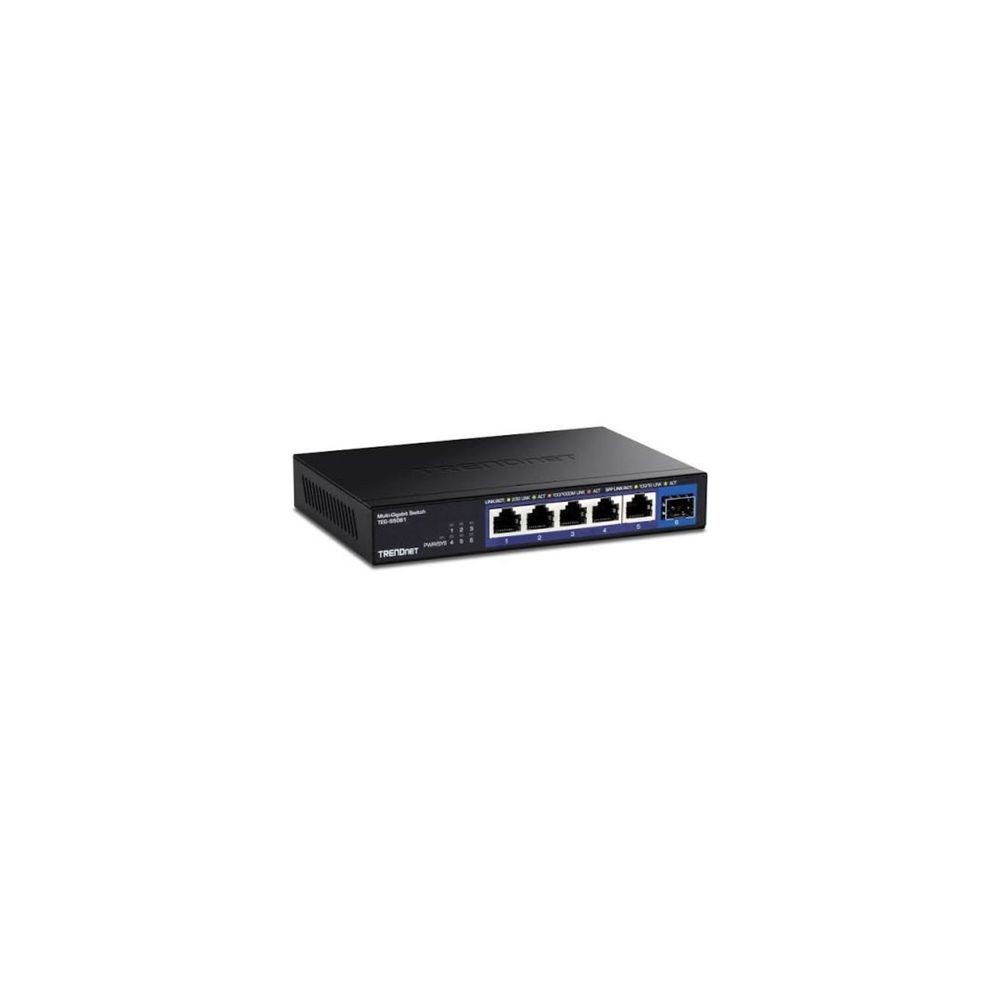

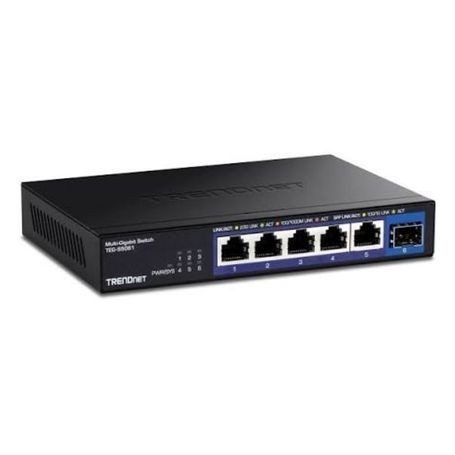

TRENDnet TEG-S5061 5-Port 2.5G Unmanaged Network Switch

New

TRENDnet 5-Port 2.5G Unmanaged Network Switch

×




  • New

Detailed Specifications

TRENDnet TEG-S5061 Unmanaged Network Switch

Overview :

Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port. These multi-gig network switches come equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ port for long-distance fiber networking. Each multi-gig switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet's reliable switches are cost-effective solutions to increase your network's throughput.

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

10G SFP+ Port

A dedicated 10G fiber SFP+ port for an ultra-fast network connection provides a cost-effective solution in adding 10G link capability.

Fanless

The fanless design of the 2.5G switches with an SFP+ port lowers energy consumption costs and eliminates operating noise.

FEATURES | Easy Installation

No configuration needed, simply connect network devices to the 2.5G switch with an SFP+ port

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

10G SFP+ Port

A dedicated 10G fiber SFP+ port for an ultra-fast network connection provides a cost-effective solution in adding 10G link capability to an SMB network

Specifications :

Product Name6-Port 2.5G Unmanaged Switch With 10G SFP+ Port
Product TypeEthernet Switch
ManageableNo
Ethernet Technology2.5 Gigabit Ethernet

10 Gigabit Ethernet

Media Type SupportedTwisted Pair

Optical Fiber

Total Number of Network Ports5
Total Number of Expansion Slots1.0
TAA CompliantYes
Expansion Slot TypeSFP+
Form FactorWall Mountable
Power Consumption9.50 W
Power SourcePower Adapter
Layer Supported2
Network (RJ-45)Yes
Number of SFP+ Slots1
ModularYes
Port / Expansion Slot Details5 x 2.5 Gigabit Ethernet Network

1 x 10 Gigabit Ethernet Expansion Slot

Networking StandardsIEEE 802.3bz

IEEE 802.3ae

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3az

Product MaterialMetal
Country of OriginTaiwan
Height1"
Width4.3"
FeaturesFanless
Length6.3"
Product ModelTEG-S5061
Network Technology2.5GBase-T

10GBase-X

Input Voltage120 V AC

230 V AC

Limited WarrantyLifetime
Frequency50 Hz

60 Hz

Application / UsageNetwork
Stock Details
ManufacturerTRENDnet
Manuf Part#TEG-S5061TEG-S5061
