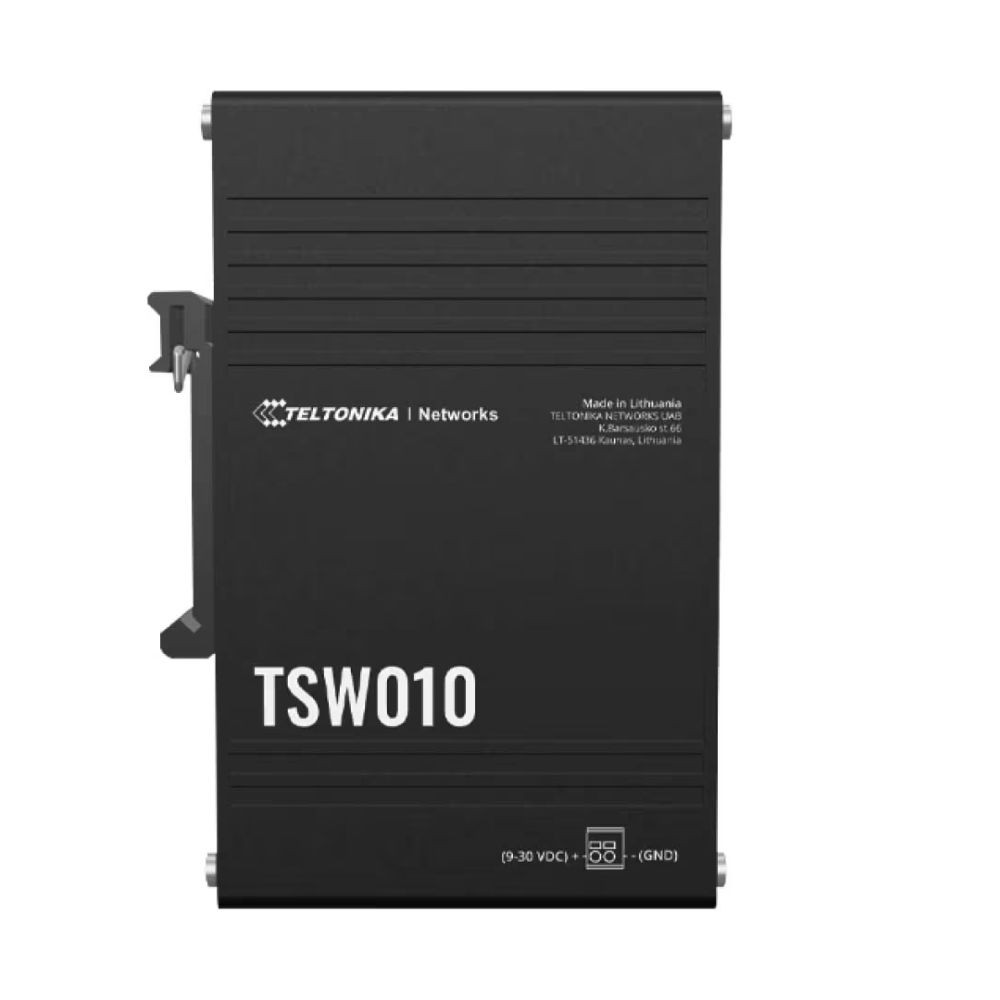

Teltonika TSW010000001 Gigabit Unmanaged Switch View larger

Teltonika TSW010000001 Gigabit Unmanaged Switch

TSW010000001

New

8‑port gigabit unmanaged switch
×




Detailed Specifications

Teltonika TSW010000001  Gigabit Unmanaged Switch

Overview

Teltonika TSW010000001 is an unmanaged Gigabit Ethernet switch with eight RJ45 ports for basic network connectivity in small‑to‑medium environments. It supports 10/100/1000 Mbps full‑duplex links with auto negotiation and auto‑MDI/MDIX, providing simple plug‑and‑play connectivity for desktops, servers, and edge devices. The switch runs from a standard DC power input and is suited for office desks, telecom closets, and small network closets where managed features aren’t needed. Its compact enclosure and passive cooling enable silent operation without fans.

Key Features

• 8 × 10/100/1000 Mbps RJ45 ports
• Auto‑MDI/MDIX on all ports
• Non‑blocking Gigabit switching
• Fanless, silent operation

Technical Specifications

SpecificationValue
Brand Teltonika
Part Number TSW010000001
Product Type Unmanaged Gigabit Ethernet Switch
Ethernet Ports 8 × RJ45, 10/100/1000 Mbps
Switching Capacity 16 Gbps
Forwarding Rate 11.9 Mpps
MAC Address Table 4 K entries
Jumbo Frame Support Up to 9216 bytes
Power Input 12–48 V DC
Power Consumption Typical ~3.5 W
Operating Temperature 0 °C to +50 °C
Operating Humidity 10 % to 90 % non‑condensing
Housing Plastic enclosure
Mounting Desktop or wall mount
