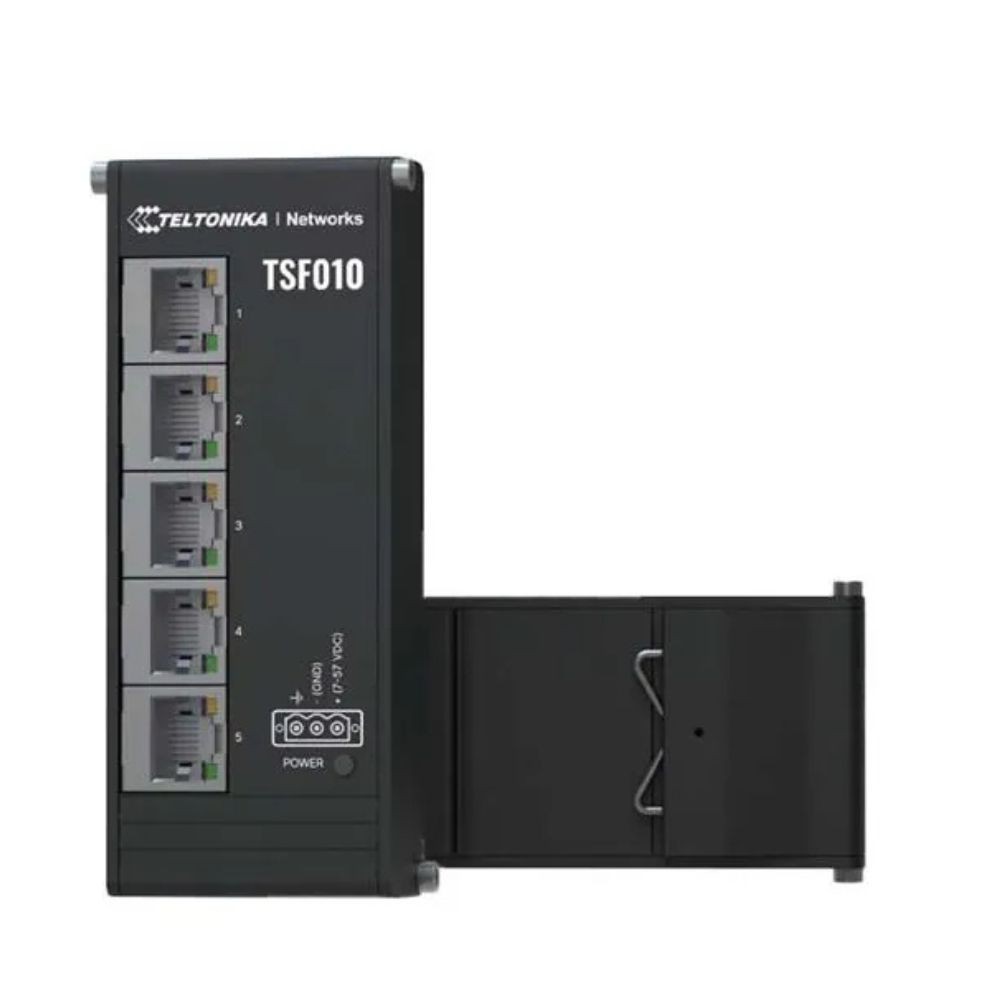

Teltonika TSF010000000 5 Port Unmanaged Ethernet Switch View larger

Teltonika TSF010000000 5 Port Unmanaged Ethernet Switch

TSF010000000

New

5‑port unmanaged Fast Ethernet switch
×




Detailed Specifications

Teltonika TSF010000000 5 Port Unmanaged Ethernet Switch

Overview

Teltonika TSF010000000 is an unmanaged industrial Ethernet switch providing five 10/100 Mbps RJ45 ports for basic network segments needing simple device interconnectivity. It offers non‑blocking 10 Gbps switching capacity with support for auto‑MDI/MDIX, jumbo frames, and a 2 K MAC address table for reliable packet forwarding. The unit runs from a flexible 7 – 57 V DC industrial power input and features integrated DIN‑rail mounting for compact cabinet installations. Its aluminum housing and extended −40 °C to +75 °C rating make it suitable for industrial edge, control panels, and automation racks.

Key Features

• 5 × 10/100 Mbps RJ45 Ethernet ports
• Non‑blocking 10 Gbps switching capacity
• DIN‑rail mounting bracket included
• Wide 7 – 57 V DC input range

Technical Specifications

SpecificationValue
Brand Teltonika
Part Number TSF010000000
Product Type Industrial Unmanaged Ethernet Switch
Ethernet Ports 5 × RJ45, 10/100 Mbps
Switching Capacity 10 Gbps
MAC Address Table 2 K entries
Jumbo Frame Support Up to 9216 bytes
Input Voltage 7 – 57 V DC
Power Consumption Typical ~1 W, Max ~1.5 W
Operating Temperature −40 °C to +75 °C
Operating Humidity 10 % to 90 % non‑condensing
Housing Material Anodized aluminum
Mounting Integrated DIN‑rail bracket
Ingress Protection IP30
Networking Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
