Overview

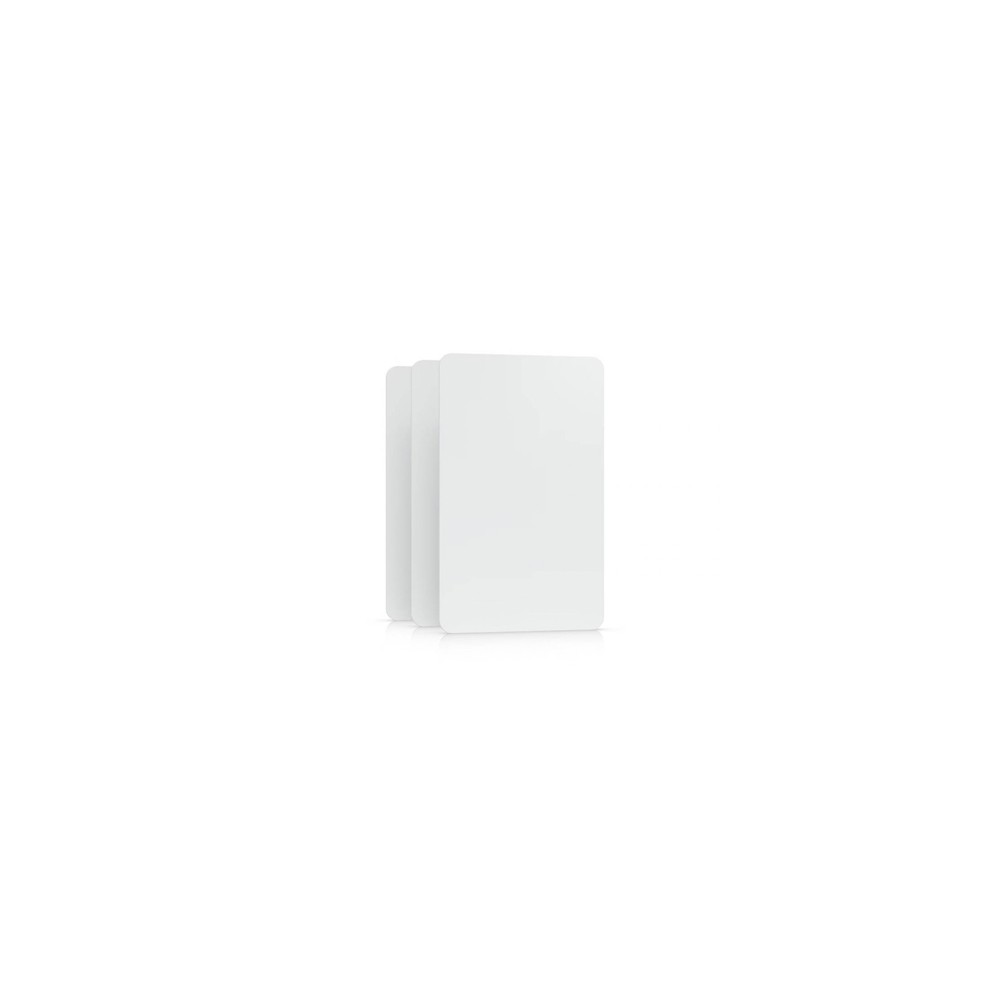

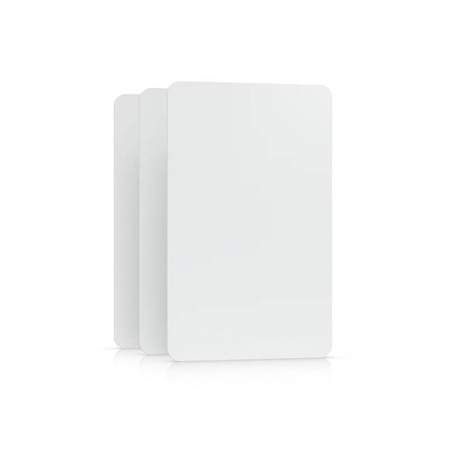

The Ubiquiti UA-CARD-W-100 is a 100-pack of white UniFi Access Cards designed to provide secure NFC credentials for compatible UniFi Access readers and intercoms. Each card uses MIFARE DESFire EV3 technology together with Ubiquiti's UniFi Access Proprietary Security Protocol.
The cards use contactless NFC communication at 13.56 MHz and follow the ISO 7810 ID-1 card format. They are intended to be assigned to users and visitors within a compatible UniFi Access deployment.
Security and NFC Technology
The access card uses MIFARE DESFire EV3 technology and the UniFi Access Proprietary Security Protocol. Ubiquiti specifies multilayer encryption designed to help prevent malicious duplication of the card credential.
Because the UA-CARD-W-100 is an NFC access credential rather than an active electronic device, the card does not require a wired network connection or an external power connection for normal contactless credential presentation.
Compatibility and Access Control
The UA-CARD-W-100 is designed for use with compatible UniFi Access readers and intercoms. Supported hardware should be verified as part of the planned UniFi Access deployment before purchasing credentials in quantity.
The cards can be assigned to users and visitors through the UniFi Access system, allowing the physical card to function as an access credential within the supported access-control environment.
Key Features
- 100 white UniFi Access NFC cards in one pack
- MIFARE DESFire EV3 NFC technology at 13.56 MHz
- UniFi Access Proprietary Security Protocol
- Multilayer encryption designed to help prevent malicious credential duplication
- ISO 7810 ID-1 standard card format
Applications
The UA-CARD-W-100 is intended for distributing physical access credentials to users and visitors in UniFi Access installations. The 100-card pack is suited to deployments requiring multiple individually assigned NFC credentials for compatible access readers and intercoms.
DC Supplies Product Note
The UA-CARD-W-100 is a credential pack, not an access reader or access controller. A compatible UniFi Access reader or intercom and the associated UniFi Access system are required to use these cards for electronic access control. Verify reader compatibility before issuing the cards to users.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UA-CARD-W-100 |
| Product Type | NFC Access Card |
| Product Family | UniFi Access |
| Pack Quantity | 100 cards |
| Color | White |
| NFC Technology | MIFARE DESFire EV3 |
| Security Protocol | UniFi Access Proprietary Security Protocol |
| NFC Frequency | 13.56 MHz |
| Format | ISO 7810 ID-1 |
| Dimensions | 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03 in) |
| Weight | 5 g (0.18 oz) per card |
| Compatibility | Compatible UniFi Access readers and intercoms |
| Intended Credential Types | Users and visitors |
| Hardware Compliance | NDAA Compliant |
| Certification | Anatel |
FAQs
How many cards are included with UA-CARD-W-100?
The UA-CARD-W-100 is the white 100-pack variant of the UniFi Access Card and contains 100 access cards.
What NFC technology does the card use?
The card uses MIFARE DESFire EV3 technology together with the UniFi Access Proprietary Security Protocol.
What frequency does the card use?
The card operates using NFC at 13.56 MHz.
What color is UA-CARD-W-100?
UA-CARD-W-100 is the white UniFi Access Card variant.
What card format does it use?
The card uses the ISO 7810 ID-1 format, with dimensions of 85.6 x 53.98 x 0.84 mm.
Can the cards be used with any NFC reader?
No. The cards are designed for compatible UniFi Access readers and intercoms using the supported UniFi Access credential technology. Compatibility should be confirmed with the specific access hardware before deployment.
