Overview

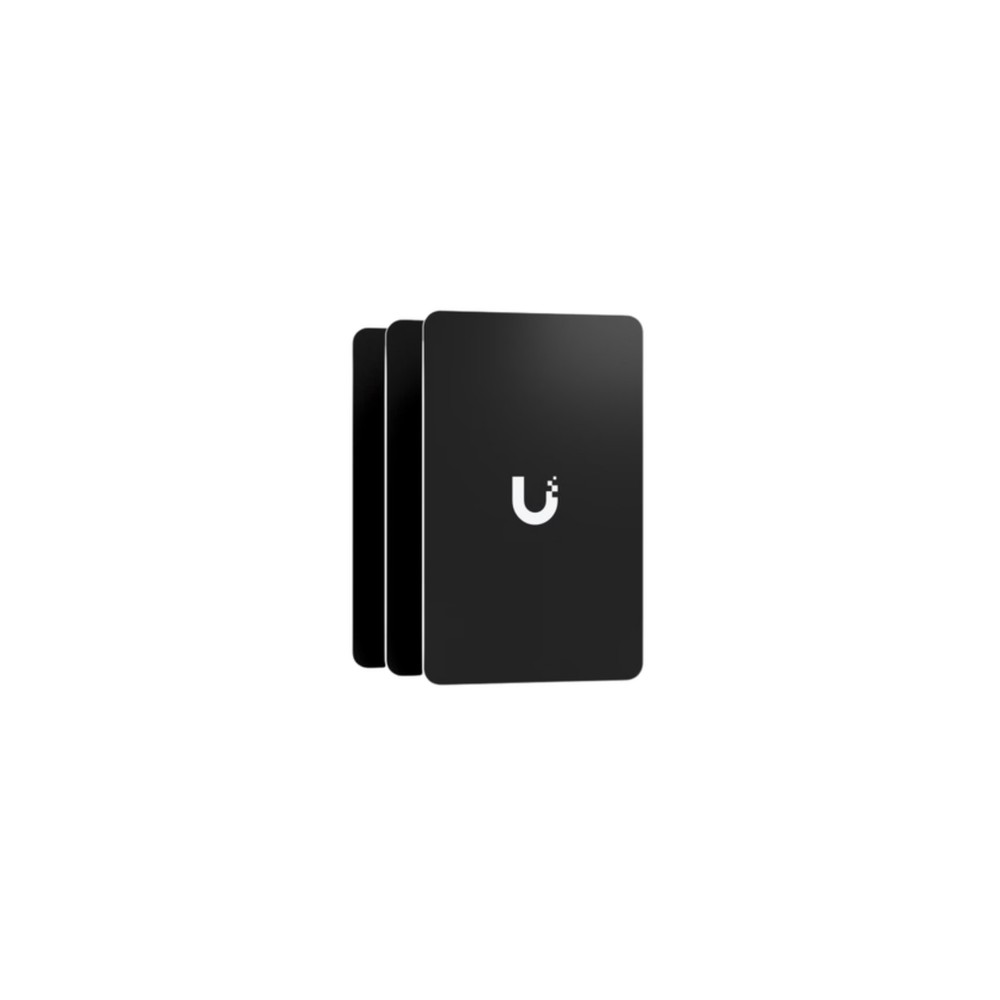

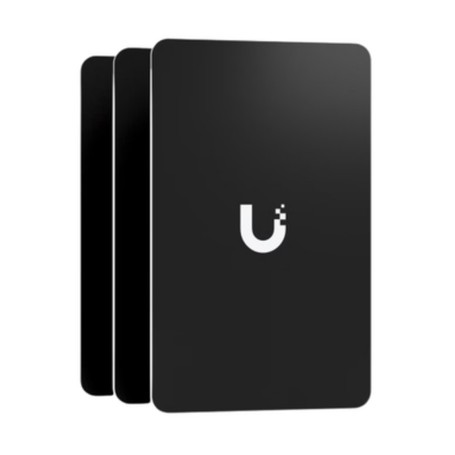

The Ubiquiti UA-Card-B-100 is a 100-pack of black UniFi Access Cards designed for contactless access control with compatible UniFi Access readers and intercoms. Each card uses MIFARE DESFire EV3 technology together with Ubiquiti's proprietary UniFi Access security protocol.
The cards use 13.56 MHz NFC technology and follow the ISO 7810 ID-1 card format. They can be assigned to users and visitors through a compatible UniFi Access deployment.
Access Control and Security
The UA-Card uses MIFARE DESFire EV3 NFC technology and Ubiquiti's UniFi Access Proprietary Security Protocol. Ubiquiti describes the cards as highly secure and designed to help prevent malicious duplication.
The cards provide a contactless credential that can be presented to a compatible UniFi Access reader or intercom for authorized entry. Credential assignment and access management are handled through the UniFi Access system rather than through the physical card itself.
Compatibility
The UA-Card-B-100 is intended for compatible UniFi Access readers and intercoms. Supported devices listed for the UA-Card family include the UA-G2-Pro, UA-G2, UA-G3-Pro, UA-G3, UA-G3-Flex, UA-Reader Lite, UA-Retrofit-Reader, UA-Ultra, and UA-Intercom.
The UA-Card-B-100 identifies the black 100-card configuration. Ubiquiti offers other card colors and pack sizes under separate part numbers, so the exact MPN should be matched when ordering.
Card Format
Each card uses the ISO 7810 ID-1 format, the standard physical format used for credit-card-sized identification cards. Individual cards measure 85.6 x 53.98 x 0.84 mm and weigh 5 g.
Key Features
- 100 black UniFi Access Cards in one pack
- MIFARE DESFire EV3 NFC technology
- 13.56 MHz contactless communication
- UniFi Access Proprietary Security Protocol
- ISO 7810 ID-1 standard card format
Applications
The UA-Card-B-100 is intended for organizations deploying UniFi Access where multiple users or visitors require physical NFC credentials. A 100-card pack can be used to provision credentials for a larger access-control deployment using compatible UniFi Access readers and intercoms.
DC Supplies Product Note
The UA-Card-B-100 is a credential card pack, not an access reader or complete access-control system. A compatible UniFi Access reader or intercom and the appropriate UniFi Access infrastructure are required to use the cards for entry. The 100-pack MPN is specifically the black card configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UA-Card-B-100 |
| Product Type | UniFi Access NFC Card |
| Pack Quantity | 100 cards |
| Color | Black |
| Access Technology | NFC |
| NFC Frequency | 13.56 MHz |
| NFC Technology | MIFARE DESFire EV3 |
| Security Protocol | UniFi Access Proprietary Security Protocol |
| Card Format | ISO 7810 ID-1 |
| Card Dimensions | 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03 in) |
| Card Weight | 5 g (0.18 oz) each |
| Compatible Access Devices | UA-G2-Pro, UA-G2, UA-G3-Pro, UA-G3, UA-G3-Flex, UA-Reader Lite, UA-Retrofit-Reader, UA-Ultra, UA-Intercom |
| NDAA Compliant | Yes |
| Certification | Anatel |
FAQs
How many cards are included in the UA-Card-B-100?
The UA-Card-B-100 is a 100-pack of black UniFi Access Cards.
What technology do the cards use?
The cards use 13.56 MHz NFC technology with MIFARE DESFire EV3 and Ubiquiti's UniFi Access Proprietary Security Protocol.
Which UniFi Access devices can use these cards?
Ubiquiti lists compatibility with selected UniFi Access readers and intercoms, including UA-G2-Pro, UA-G2, UA-G3-Pro, UA-G3, UA-G3-Flex, UA-Reader Lite, UA-Retrofit-Reader, UA-Ultra, and UA-Intercom.
Are the cards credit-card sized?
Yes. The cards use the ISO 7810 ID-1 format and measure 85.6 x 53.98 x 0.84 mm.
Can these cards be assigned to users and visitors?
Yes. Ubiquiti identifies the UniFi Access Card as an assignable credential for users and visitors within compatible UniFi Access deployments.
Is the UA-Card-B-100 an access reader?
No. It is a pack of NFC credentials. A compatible UniFi Access reader or intercom and the required UniFi Access infrastructure are needed to use the cards for entry.
