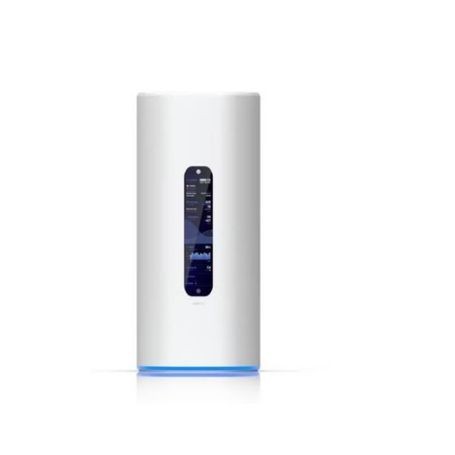

Ubiquiti UDR-5G-Max-US Dream Router 5G Max 5G WiFi 7 Cloud Gateway
Overview
The Ubiquiti UDR-5G-Max-US is the US version of the Dream Router 5G Max, a desktop UniFi Cloud Gateway combining 5G cellular connectivity, WiFi 7, routing, security, switching, and UniFi application support in a single system. It supports full-performance 5G with peak downlink speeds up to 3.4 Gbps, an integrated WiFi 7 access point, 10G SFP+ connectivity, and a four-port 2.5 GbE switch with one PoE port.
5G and Network Connectivity
The gateway supports 5G NR Sub-6, 4G LTE, and 3G UMTS cellular connectivity. It provides one 10G/1G SFP+ port and four 2.5/1G/100M RJ45 ports, including one PoE port. The cellular system supports two Nano SIM cards, with one SIM position also supporting eSIM, allowing cellular connectivity options to be configured according to the deployment.
WiFi 7 and UniFi Applications
The integrated wireless access point supports 802.11a/b/g/n/ac/ax/be, including WiFi 6, WiFi 6E, and WiFi 7. Ubiquiti specifies maximum wireless throughput of 5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz. The gateway supports UniFi Network, Protect, Access, Talk, and Connect, with capacity for 30+ managed UniFi devices and 300+ simultaneous connected users.
Security and Routing
The UDR-5G-Max-US provides stateful and application-aware Layer 7 firewall functions, DPI and traffic identification, content filtering, intrusion prevention, ad blocking, multi-WAN load balancing, advanced QoS, OSPF, mDNS, and advanced NAT. It supports Site Magic, IPsec, OpenVPN, WireGuard, L2TP, Teleport, and Identity Endpoint VPN functions. Ubiquiti specifies 2.3 Gbps IDS/IPS throughput.
Key Features
- 5G NR Sub-6 with peak downlink up to 3.4 Gbps
- Integrated WiFi 7 with 6 GHz, 5 GHz, and 2.4 GHz radios
- 1 × 10G/1G SFP+ and 4 × 2.5/1G/100M RJ45 ports, including 1 PoE port
- 30+ managed UniFi devices and 300+ simultaneous connected users
- 2.3 Gbps IDS/IPS throughput with integrated UniFi applications
Applications
The UDR-5G-Max-US can be deployed as an all-in-one gateway for locations requiring cellular WAN connectivity, integrated WiFi, wired switching, and UniFi management. It is suited to homes, branch offices, temporary sites, and other installations where 5G connectivity can serve as a primary or additional WAN connection.
DC Supplies Product Note
The UDR-5G-Max-US is the North American version of the Dream Router 5G Max. Cellular compatibility depends on the supported frequency bands and local carrier requirements, so verify the applicable 5G or LTE bands and SIM service before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UDR-5G-Max-US |
| Product Type | 5G WiFi 7 Cloud Gateway |
| WAN Ports | 1 × 10G SFP+, 1 × 2.5 GbE RJ45 |
| LAN Ports | 4 × 2.5/1G/100M RJ45, including 1 PoE port |
| IDS/IPS Throughput | 2.3 Gbps |
| Managed UniFi Devices | 30+ |
| Simultaneous Users | 300+ |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| WiFi Throughput | 6 GHz: 5.7 Gbps; 5 GHz: 4.3 Gbps; 2.4 GHz: 688 Mbps |
| 5G Category | 5G NR Sub-6 |
| 5G Peak Data Speed | NSA: 3.4 Gbps down / 560 Mbps up; SA: 1.8 Gbps down / 650 Mbps up |
| SIM | 2 × Nano SIM; 1 × Nano-SIM or eSIM |
| PoE Budget | 15.4W |
| NVR Storage | Pre-installed 64 GB microSD |
| Expansion Slot | MicroSD card |
| Power Method | 54V DC / 1.1A adapter |
| Maximum Power Consumption | 34.5W excluding PoE output |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Display | 4.7" touchscreen |
| Dimensions | 110 × 110 × 250 mm (4.3 × 4.3 × 9.8") |
| Weight | 1.4 kg (3.1 lb) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
Frequently Asked Questions
What is the UDR-5G-Max-US?
The UDR-5G-Max-US is a desktop UniFi Cloud Gateway combining 5G cellular connectivity, WiFi 7, routing, security, switching, and UniFi applications.
What 5G speed does the UDR-5G-Max-US support?
Ubiquiti specifies a peak 5G NSA downlink speed of 3.4 Gbps and uplink speed of 560 Mbps. 5G SA is specified at up to 1.8 Gbps downlink and 650 Mbps uplink.
What network ports are available?
The gateway provides one 10G/1G SFP+ port and four 2.5/1G/100M RJ45 ports, including one PoE port.
Does the UDR-5G-Max-US support WiFi 7?
Yes. Its integrated wireless system supports WiFi 7 across 6 GHz, 5 GHz, and 2.4 GHz bands.
How many SIM cards does it support?
It supports two Nano SIM cards, with one position also supporting Nano-SIM or eSIM operation.
