Detailed Specifications

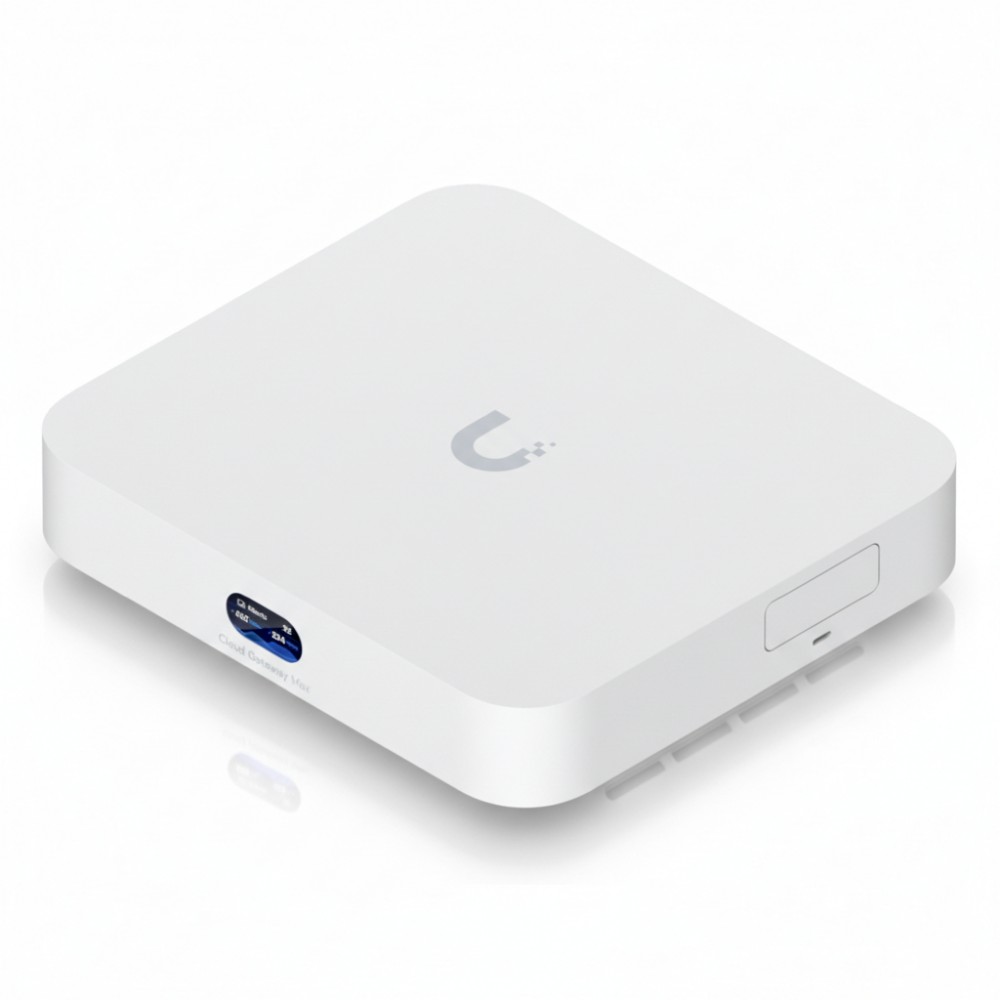

Ubiquiti UCG-MAX UniFi Cloud Gateway Max
Overview
The Ubiquiti UCG-MAX is a UniFi Cloud Gateway designed to consolidate routing, security, and controller functions in a single desktop unit. It delivers multi-WAN connectivity, advanced IDS/IPS, and full UniFi OS support with built-in NVMe storage for local UniFi Protect recordings. The device handles SMB and branch deployments with connectivity for 30+ UniFi devices and 300+ clients. It integrates with the UniFi controller platform for unified management of network, security, and Protect applications.
Key Features
Quad-core 1.5 GHz ARM Cortex-A53 CPU
2.5 GbE multi-WAN/LAN ports
512 GB NVMe storage onboard
UniFi OS with IDS/IPS security
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UCG-MAX |
| Product Type | UniFi Cloud Gateway |
| Processor | Quad-core ARM Cortex-A53 @ 1.5 GHz |
| System Memory | 3 GB DDR4 |
| On-board Storage | 512 GB NVMe SSD |
| WAN Ports | 1× 1/2.5 GbE RJ45 |
| LAN Ports | 4× 1/2.5 GbE RJ45 |
| IDS/IPS Throughput | ~1.5 Gbps |
| Routing Throughput | Tandem with IDS/IPS |
| Display | 0.96″ LCM status display |
| Power Method | USB-C (5 V DC/5 A) |
| Max Power Consumption | ~16.1 W |
| Operating Temp | −10 °C to 40 °C |
| Certifications | CE, FCC, IC |
