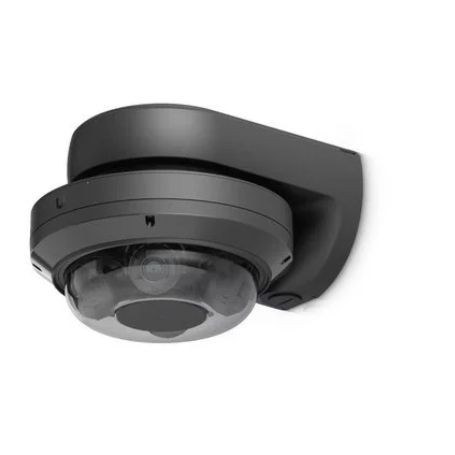

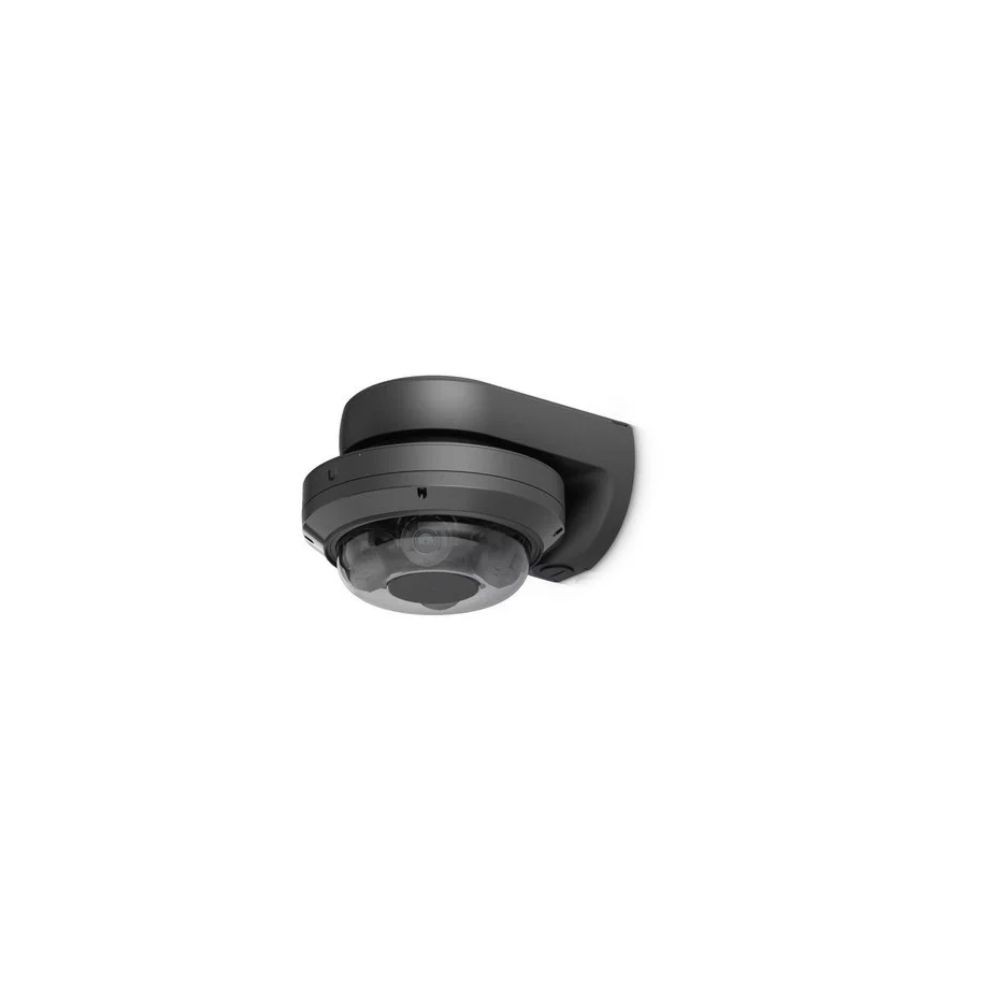

Ubiquiti UACC-AI-MS-4-AM-B AI Multi Sensor 4 Camera Arm Mount
Overview
The Ubiquiti UACC-AI-MS-4-AM-B is a black mounting kit designed specifically for the UVC-AI-MS-4 AI Multi Sensor 4 camera. The kit supports flat or angled installation using arm, pole, or corner mounting configurations.
Mounting Options
The mounting system supports multiple installation methods for different physical deployment requirements. Pole mounting accommodates two specified pole diameter ranges: 50–100 mm (2–4 inches) and 115–150 mm (4.5–6 inches).
Construction and Installation
The mounting components use aluminum alloy construction with a painted and powder-coated finish. Installation uses tapping screws and anchors, while G3/4-inch threaded outlets provide a defined interface for cable routing or conduit connections.
Key Features
- Designed for the UVC-AI-MS-4 AI Multi Sensor 4 camera
- Supports flat and angled camera installation
- Supports arm, pole, and corner mounting configurations
- Compatible with 50–100 mm and 115–150 mm pole diameters
- Aluminum alloy construction with painted and powder-coated treatment
Applications
The UACC-AI-MS-4-AM-B can be used where an AI Multi Sensor 4 camera requires a dedicated arm, pole, or corner mounting arrangement. The available mounting configurations allow the camera installation to be adapted to different structural locations.
DC Supplies Product Note
Verify the mounting surface and selected installation configuration before deployment. The specified pole diameter ranges are 50–100 mm and 115–150 mm; poles outside these ranges are not identified as compatible in the available specifications.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-AI-MS-4-AM-B |
| Product Type | AI Multi Sensor 4 Camera Arm Mount |
| Color | Black |
| Compatibility | UVC-AI-MS-4 |
| Mounting Configurations | Arm, pole, and corner |
| Installation | Flat or angled |
| Pole Mount Diameter | 50–100 mm (2–4") and 115–150 mm (4.5–6") |
| Enclosure Material | Aluminum alloy |
| Mounting Material | Aluminum alloy |
| Surface Treatment | Painting, powder coating |
| Mounting Hardware | Tapping screws, anchors |
| Threaded Outlets | G3/4" |
| Dimensions | 350 × 250 × 150 mm (13.8 × 9.8 × 5.9") |
| Pole Mount Weight | 300 g (10.6 oz) |
| Corner Mount Weight | 700 g (1.5 lb) |
| Arm Mount Weight | 3.6 kg (7.9 lb) |
Frequently Asked Questions
Which camera is the UACC-AI-MS-4-AM-B designed for?
It is designed for the Ubiquiti UVC-AI-MS-4 AI Multi Sensor 4 camera.
What mounting configurations does this kit support?
The kit supports arm, pole, and corner mounting configurations, including flat or angled installation.
What pole sizes are supported?
The specified pole mounting ranges are 50–100 mm (2–4 inches) and 115–150 mm (4.5–6 inches) in diameter.
What material is used for the mount?
The enclosure and mounting components are specified as aluminum alloy with a painted and powder-coated surface treatment.
What type of mounting hardware is specified?
The specifications identify tapping screws and anchors as the mounting hardware.
